Cutting Tools > Turning Tools     All A R Warner products

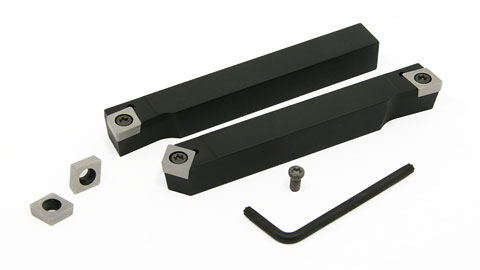

Turning Tools, 1/2" Indexable CCMW HSS Inserts

Turning Tools, 1/2" Indexable CCMW HSS Inserts

Related Products

Inserts
Inserts

  • Right hand tool holder
  • Left hand tool holder, double ended
  • Includes five T-15 high speed steel CCMW-3-2.5-2 inserts
  • Includes four MS-1155 screws and one T-15 wrench

Right hand bar has 0.5" shank and is 4" long.

Left hand bar has 0.5" shank and is 4" long. It includes a second insert pocket that provides a 50° side cutting edge.

Uses CCMW-3-2.5-.5, CCMW-3-2.5-1, and CCMW-3-2.5-2 inserts.

The second insert pocket on the left hand tool provides a way to use the second and fourth corners on the diamond insert.

Made by A R Warner.

Part Number: 3569
Weight: 0.95 pounds

Price: $100.00
