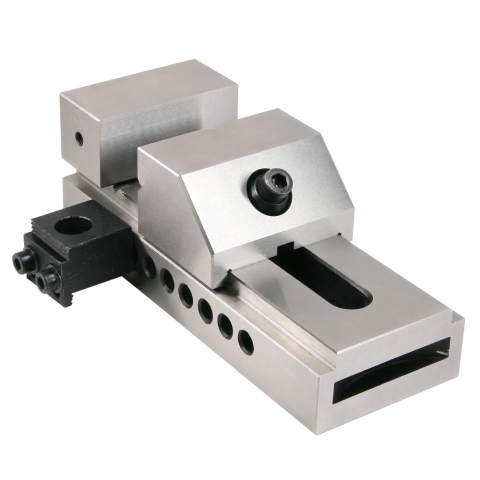

Vise, 3" Screwless with Hold Down Clamps
- High precision 3" wide screwless vise
- Clamps to secure to vise to your mill table
- Vise is hardened and precision ground
- Jaw opening capacity is 3.78"
- Clamps are height adjustable
Part Number: 3767
Weight: 9.44 lb
Weight: 9.44 lb
Price: $104.95
Share this page:
http://lmscnc.com/3767
http://lmscnc.com/3767
This high precision screwless vise with hold down clamps has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square and parallel to 0.0002". There are horizontal and vertical vees on the inside face of the movable jaw to hold round objects.
The jaws are 1.38" deep and open to 3.78" capacity.
The vise is 7.28" long, 2.76" tall and 3.00" wide.
The pair of clamps is used to mount this toolmakers vise on your mill table. You furnish 3/8" socket head cap screws of the appropriate length for your mill, and T-slot nuts.
These clamps are height-adjustable so they will work with any screwless vise with 8 mm (5/16") or larger holes. You can also use these clamps in the slots that are in the end of most screwless vises.
Chris' Tips| Jaw Depth | 1.38" (35.1 mm) |
| Maximum Jaw Opening | 3.78" (96.0 mm) |
| Weight | 10.7 lbs (4.9 kg) |
| Height with Out Base | 2.76" (70.1 mm) |
| Length | 7.28" (184.9 mm) |
| Width with Out Base | 3" (76 mm) |
| Description | Qty | |
|---|---|---|
|
Clamps, Screwless Vise, P/N 2675 | 1 |
|
Vise, 3" Screwless, P/N 1590 | 1 |
Compatibility
This product works with these LittleMachineShop.com products:
- 1893 Thin Parallels, 3" Long, 10 Pairs
- 2220 Thin Parallels, 3" Long, 10 Pairs, Ultra-Precision
- 2924 Thin Parallels, 3" Long, 4 Pairs
- 1232 Thin Parallels, 6" Long, 10 Pairs
- 2923 Ultra Thin Parallels, 6" Long
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Clarke CMD10 Metalworker Micro Mill
- Harbor Freight 47158 Central Machinery Micro Mill
- SIEG X1 Micro Mill
- SIEG SX1 Micro Mill
- LittleMachineShop.com 4660 HiTorque Micro Mill
- LittleMachineShop.com 4700 HiTorque Micro Mill
- SIEG SX1P Micro Mill
- Grizzly G0758 Mill/Drill
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- BusyBee CX605 Craftex Mini Mill
- Cummins (Tools Now) 7877 Mini Mill
- Eastwood 32498 Mini Mill
- Harbor Freight 44991 Central Machinery Mill/Drill
- Homier 03947 Speedway Mini Mill
- Northern Tool 49657 KLUTCH Mini Mill
- Penn Tool Co XJ-9510-1 Precise Mini Mill
- SIEG X2-R8 Mini Mill
- Travers Tools OT2213 OTMT Mini Mill
- SIEG X2P Mini Mill
- LittleMachineShop.com 4962 SIEG Mini Mill
- SIEG X2D Mini Mill
- SIEG X2L Mini Mill
- WEN 33013 WEN Mini Mill
- SIEG X2LF Mini Mill
- BusyBee CX612 Craftex Mini Mill
- SIEG SX2 Mini Mill
- Micro-Mark 84630 MicroLux Mini Mill
- LittleMachineShop.com 3900 HiTorque Mini Mill
- SIEG SX2L Mini Mill
- LittleMachineShop.com 4190 HiTorque Mini Mill
- LittleMachineShop.com 3960 HiTorque Mini Mill
- LittleMachineShop.com 3990 HiTorque Mini Mill
- LittleMachineShop.com 6450 HiTorque Mini Mill
- SIEG SX2LF Mini Mill
- Grizzly G0781 Mill/Drill
- SIEG X2.7 Bench Mill
- SIEG X2.7L Bench Mill
- WEN 33075 WEN Bench Mill
- LittleMachineShop.com 5500 HiTorque Bench Mill
- LittleMachineShop.com 6500 HiTorque Bench Mill
- SIEG SX2.7 Bench Mill
- LittleMachineShop.com 5550 HiTorque Bench Mill
- LittleMachineShop.com 6570 HiTorque Bench Mill
- LittleMachineShop.com 6550 HiTorque Bench Mill
- SIEG SX2.7L Bench Mill
- Grizzly G0463 Mill/Drill
- Harbor Freight 93885 Central Machinery Mill/Drill
- SIEG X3 Small Mill
- Woodstock International M1110 Shop Fox Small Mill
- BusyBee CX611 Craftex Small Mill
- Grizzly G0619 Mill/Drill
- SIEG SX3 Small Mill
- Travers Tools OT2225SX3 OTMT Small Mill
- Grizzly G0759 Mill/Drill With Stand
- Grizzly G0704 Mill/Drill With Stand
- Grizzly G3103 Vertical Mill
- Grizzly G3102 Vertical Mill
- Harbor Freight 42976 Central Machinery Mill/Drill
- SIEG X3.5 Large Bench Mill
- LittleMachineShop.com 6770 HiTorque Large Bench Mill
- LittleMachineShop.com 6750 HiTorque Large Bench Mill
- LittleMachineShop.com 6700 HiTorque Large Bench Mill
- Grizzly G0722 Bench Mill
- Grizzly G0720 Bench Mill
- Grizzly G0720R Bench Mill
- SIEG SX4 Bench Mill
- Harbor Freight 33686 Central Machinery Small Mill
- Rong Fu RF-xx Milling & Drilling Machine
- BusyBee CX705 Craftex Lathe Mill Combo
- Grizzly G0516 Lathe Mill Combo
- SIEG M6 Multi-purpose Machine
