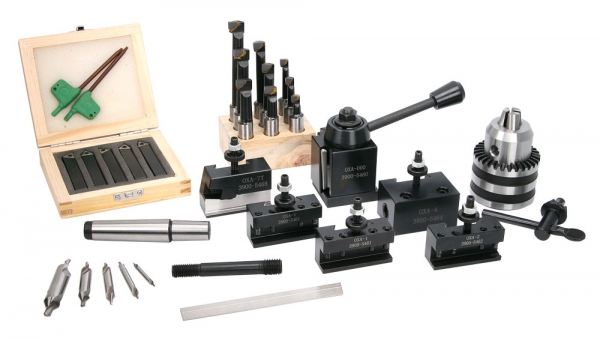

Tooling Package, HiTorque Bench Lathe

0XA QCTP Set with post mount for SC4 Lathes
3/8" Indexable TCMT Inserts, P1 Cut-Off Blade
1/2" Drill Chuck, 2MT Standard to 33JT Drill Chuck Arbor
9-piece carbide Boring Bar Set - 1/2" shank
5 Center Drills (sizes 1-5)

Part Number: 4217
Weight: 8.69 lb

$244.95 Value Price

Purchased individually $257.60

Share this page:
http://lmscnc.com/4217

Description

This package contains all the tooling you need to be productive with your lathe on the first day you own it. It works with the LittleMachineShop.com HiTorque 8.5x16 or 8.5x20 bench lathes as well as other C4 and SC4 lathes.

Includes a 0XA (Series 000) quick change tool post set (QCTP).

This set includes the tool post and the following tool holders:

2 - #1 Turning and Facing

1 - #2 Boring, Turning and Facing

1 - #4 Heavy Duty Boring will hold both 3/8 and 1/2 boring bars

1 - #7 Universal Parting Blade (for 1/2 inch cut-off blade - horizontal)

The quick change tool post is made from hardened steel. No tools are required to change tools. Additional tool holders are available. It may require some work in order to make a T-slot nut, to mount this QCTP on your lathe.

The turning tool holders accept tools with 3/8" to 1/2" shank. The turning and boring tool holder accepts boring bars with up to 1/2" round shanks. The cut-off tool holder holds 1/2" tall parting blades.

The 1/2" capacity drill chuck is mounted on a standard 2 Morse taper shank. The rated capacity of the drill chuck is 1 mm (0.039") to 13 mm (0.512").

The set of 3/8" shank indexable turning tools includes 5 tools (TAR, TAL, TBR, TBL, TE), inserts, a wrench, and extra screws. It comes in a fitted case. The carbide inserts are TCMT21.51.

The carbide tipped 9-piece boring bar set includes three different length boring bars each for minimum bores of 5/16", 3/8", and 7/16". The bore depth ranges from 3/4" to 2-1/4". The heat treated, alloy steel shanks are held to 0.000 to -0.0005" from the nominal diameter.

The P1 parting blade is 5/64" x 1/2" x 4-1/2" and made from M2 HSS. These T-shape parting blades provide great side clearance.

This package includes 5 different sizes of combined drills and countersinks, commonly called center drills. The center drill set is high speed steel and includes sizes 1, 2, 3, 4, and 5. These are 60 degree center drills. These are the sizes that are most used by bench top machinists.

Chris' Tips

Chris' Tips
This QCTP is a bolt-on accessory for the mini lathe.

To mount this QCTP on other small lathes, you may have to make a bushing or re-work the center stud so that you can mount it to a smaller threaded hole

See the comparison chart of the quick change tool post sets we carry.

The 0XA quick change tool post and the associated tool holders were developed by Tormach and LittleMachineShop.com in cooperation.

The 0XA tool post and tool holders were optimized to work with all versions of mini lathes, including 7x10, 7x12, 7x14 and 7x16 mini lathes.

The two 0XA tool posts (3112 and 3048) are the same except for the cut-off tool holder.

The 3112 has a cut-off tool holder that mounts the blade horizontally. Thus it can be used on lathes that have only 5/8” from the top of the compound to the centerline of the lathe, like the 7x mini lathes.

The 3048 has a cut-off tool holder that mounts the blade at a 4 degree angle. It needs ¾” from the top of the compound to the centerline because of the angled cut off blade.

Here are instructions for mounting the 0XA QCTP.

Contents

This product contains the following items:
	Description	Qty
	Arbor, Drill Chuck 2MT Tang to 33JT, P/N 1190	1
	Boring Bar Set, 1/2" Shank, Carbide, P/N 1247	1
	Center Drills, HSS, Set of 5 (Numbers 1-5), P/N 1230	1
	Cut-Off Blade, P1, P/N 1929	1
	Drill Chuck, 1/2", P/N 1212	1
	Quick Change Tool Post Mount, 0XA for Lathes, P/N 4117	1
	Quick Change Tool Post Set, 0XA, Mini Lathe, Horizontal Cut-Off, P/N 3112	1
	Turning Tools, 3/8" Indexable, Triangle Inserts, P/N 1669	1
