HiTorque Mini Mill, Tilting Column with Tooling Package 4218 (Discontinued)

Most powerful mill in its class with most low-speed torque in its class
Includes tooling package
No gears in spindle drive
Largest table and X-Y travel in its class
R8 spindle (Includes 1/2" drill chuck and arbor)

Part Number: 4218 (Discontinued)
Weight: 220 lb

Price: $1,178.95

Share this page:
http://lmscnc.com/4218

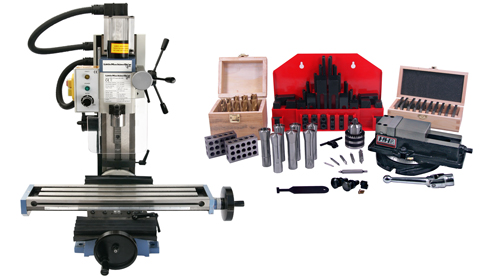

HiTorque Mini Mill and Tooling Package. This includes the PN 3900 HiTorque Mini Mill and the PN 3489 R8 Mini Mill Tooling Package and a drill chuck.

The LittleMachineShop.com HiTorque Mini Mill is the best in its class. It has the most power, most torque, and a larger table than other mills in its class.

The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2500 rpm continuously. There are no gears to shift. And, with no gears, the HiTorque Mini Mill is the quietest in its class.

The large mill table provides 50% more table area than other mini mills. It also has 30% more travel in each direction. The resettable feed dials allow you to zero them at any point.

The HiTorque Mini Mill has drill press handles for drilling and fast motion of the mill's head. It also has Z-axis fine feed with 0.001" resolution for milling operations.

*NOTE* We ship machines only to the US and Canada.

Chris' Tips

Chris' Tips
T-slot cleaners are designed for Bridgeport mills. It takes a few seconds on a grinder to reduce the size of the "T" to fit the slots on the mini mill.The LittleMachineShop.com HiTorque Mini Mill does not come with a drill chuck as many other mini mills do. That's because the drill chucks provided by the factory do not meet our quality standards (read: they're junk). We had them put the value of the drill chuck into other parts of the mill, like the large X-Y table that is unique to LittleMachineShop.com.

Get one of these drill chucks and you will be in business.

Let's compare the LittleMachineShop.com Solid Column HiTorque Mini Mill to mini mills with a tilting column.

The tilting column on other folk's mini mills tilts 45 degrees from side to side. This has several advantages. First, it is possible to make some angled cuts. It's also easy to tram in the X-axis. One user (and only one) has described to me a cut that was impossible to make any way but using a tilting column.

This mill has a solid column. While it is harder to tram in the X-axis because you must use shims, it is not as easy to knock it out of tram as the tilting column mini mill. The solid column has thicker walls than the tilting column, and a stiffer joint where it joins the base, so the column is significantly more rigid than the tilting column.

LittleMachineShop.com no longer sells mills with a tilting column. That is an indication of how much better the solid column is.

Here are the user's guides for our machines.

Here are data sheets for the machines that we sell.

Here's what you need to convert the HiTorque Mini Mill to CNC. (But be sure you look at the CNC milling machines that we sell before you start).

Features

500 Watt output spindle motor
Large X-Y table
R8 Spindle for wide tool availability
Dovetail column maintains head alignment at any height
Fine feed on Z-axis for precise control
Three radial handles for drilling
E-stop safety power switch
Adjustable Z-axis stop for repetitive drilling
Neoprene bellows protect horizontal ways
Adjustable gibs on all dovetail ways
Includes 1/2" drill chuck and arbor

Specifications

Specifications
End Milling Capacity	0.6" (16 mm)
Face Milling Capacity	1.2" (30 mm)
Drilling Capacity	0.5" (13 mm)
Table Size	18.1" x 4.7" (460 mm x 120 mm)
T-slots	3 slots 0.47" (12.0 mm) wide
X-Axis Travel	11.8" (300 mm)
Y-Axis Travel	5.1" (130 mm)
Z-Axis Travel	9.3" (235 mm)
Throat	6.5" (165 mm)
X- and Y-Axis Feed Screws	0.062" (1.59 mm) per rotation
Head Tilt	45°- 0°- - 45°-
Positioning Accuracy	0.0004" (0.010 mm)
Spindle Taper	R8
Spindle Motor	0.67 hp (500 Watts)
Spindle Speed	100 - 2500 RPM
Power Requirements	120 V 60 Hz 8 Amps
Machine Weight	121 lbs (55 kg)
Overall Dimensions (W x D x H)	23.2" x 19.7" x 29.1" (590 mm x 500 mm x 740 mm)
Shipping Weight	164 lbs (75 kg)
Shipping Dimensions (W x D x H)	23.6" x 23.6" x 29.9" (600 mm x 600 mm x 760 mm)

Contents

This product contains the following items:
	Description	Qty
	Blocks, 1-2-3, P/N 1233	1
	Center Drills, HSS, Set of 5 (Numbers 1-5), P/N 1230	1
	Clamping Kit, 7/16" T-Slot, P/N 1144	1
	Collet Set, R8, Set of 7, P/N 2605	1
	Drill Chuck, 1/2", P/N 1212	1
	Edge and Center Finder, 3/8" Shank, P/N 1240	1
	End Mill Set, 20 pieces 2 & 4 Flute, TiN coated HSS, P/N 1244	1
	T-Slot Cleaner, 7/16" T-Slot, P/N 4991	1
	Thin Parallels, 3" Long, 10 Pairs, P/N 1893	1
	Vise Mounting Kit, 7/16" T-Slot, P/N 3125	1
	Vise, 3" Precision Milling, Heavy, with Swivel Base, P/N 1699	1

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

3818 Tachometer, Spindle, HiTorque Mills & Lathes

Shipping

These machines ship by freight truck because they are simply too heavy and bulky for UPS Parcel Service. If your location will be difficult for larger truck/Semi-trailer, please let us know.

We normally ship truck orders a day or two after we receive the order. For local orders transportation usually takes no more than a day or two. For orders going across county or over water the transportation time can be up to a week or longer.

We add the following shipping cost to your order total:

We ship machines only to the US and Canada.

Destination	*Local	Continental US
Freight Terminal (pick-up) Within 50 miles / 1 hour of travel Note: Not all terminals allow pickup	$99	$179
Commercial Address (inc. Limited Access Sites) Set hours / No delivery appointment Includes limited access (e.g. Schools, Military, Gov. Bldgs) DOES NOT include liftgage service**	$99	$199
**Liftgate: Add liftgate if forklift or loading dock is not available onsite.		+ $50
Residential Address Includes delivery appointment and liftgage for ALL Residential businesses or limited access facilities (e.g. schools) requiring appointment or liftgage	$99	$249

*Local refers to the parts of Southern California served by Hollywood Delivery Service.

**Liftgate service is included in local delivery and residential delivery. A loading dock or forklift is assumed in commercial deliveries. If these are not available, please add this extra service.

Additional Notes

Contact and delivery. Ensure you choose the correct type of delivery, have a dedicated contact person/number, and are ready on day of delivery. Freight companies charge an additional fee if delivery exceeds 30 minutes.
Only one shipping charge for entire pallet (up to 700 pounds total). The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second machine, stand, tooling, and accessories.
A "commercial address" has a sign with company name, a public entrance and posted hours of operation. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.
A "limited access" designation is required for "Secured Locations" (schools, colleges, universities, university hospitals, military bases, government facilities, etc). Please provide accurate details on delivery in special instructions.
"Terminal Pickup" allows for pickup at local terminal. If there is not a terminal within 50 miles (or 1 hour), we will confirm with you that you still want Terminal Pickup. Terminals tend to be near highways (usually miltiple intersecting) and industrial centers. Only certain terminals allow pick-up.
"Residential delivery" does not include moving machine into home/garage/workshop or any setup. Delivery is to start of driveway on the street that the delivery truck can access. (See inside delivery below.)

For delivery to Alaska, Hawaii, or Puerto Rico

We will check with several trucking companies to get the best price and then call for your approval before we ship.

Canadian Shipments

Truck Freight shipping to Canada involves 3 distinct charges in addition to the product costs. (All amounts are in US Dollars, see the current mid-market exchange rate.)

Canadian Provincial Taxes (GST, PST, HST) depending on which province the shipment is going to. This will be 5% - 15% added to total sales amount depending on province (Canadian Sales Tax).
Hemisphere Customs Brokerage which handles all customs clearance requirements. This is a flat fee of $108 on any shipment.
Truck Freight from Southern California to destination in Canada. This is generally $300-$500 for residential liftgate delivery and appointment for single machine + tooling orders. Delivery to a terminal for pick-up or a commercial location with loading capabilities can reduce this cost substantially.

Quotes

To get a quotation that includes the shipping costs, add the products you want to the shopping cart and continue the checkout process until you reach the Payment page. On the Payment page, select the Quotation option. We will add the shipping costs and return a complete quotation to you within one business day.

Inside Delivery

For many years we have offered INSIDE DELIVERY for an added charge (as set by freight carriers). Unfortunately, most carriers have stopped this practice for liability, cost, or other reasons and we can no longer reliably offer it. If you really need Inside Delivery, please give us a call and we can try to help with your specific situation. Our recommendation however has always been to call some friends or find someone local. Saves some money and lets you meet the neighbors....

Alternatively, companies like Navis Pack & Ship (www.gonavis.com) or similar may be able to help you pack up a machine, or move it into your home/shop.
