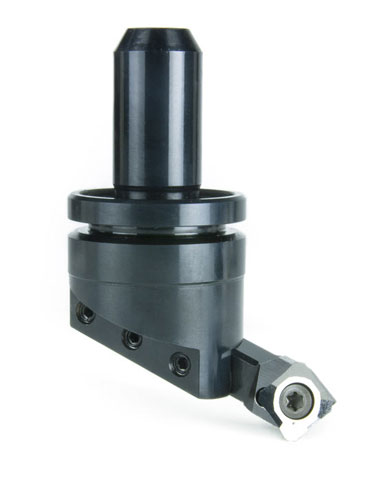

SuperFly Cutter, Tormach TTS

The Tormach SuperFly cutter kit has modern insert geometries and is specially designed for maximum performance on spindles with less than 3hp.

Kit includes the fly cutter body, tool bar, two general purpose carbide inserts, two polished carbide inserts for aluminum machining, insert screw, wrench and anti-seize.

Like all Tormach TTS tools, the SuperFly Cutter has a 3/4" straight shank. Use it with the TTS system, or use it in any 3/4" collet.

Tormach part number 38258.

Carbide cutting tools are a hard composite material , primarily tungsten carbide, bonded with cobalt. They can withstand extreme temperatures (up to 1,000° C) and heavy mechanical loads without losing their hardness.

Many of our carbide inserts are coated, typically with TiN (Titanium Nitride). This coating reduces friction and improves wear resistance.

Carbide indexable inserts save money since only the insert, not the entire cutting tool, needs to be made of carbide. However, when compared to solid carbide or high-speed steel (HSS), they are slightly less rigid. They can be prone to cutting pockets in your stock if the edge breaks. It is this quality which drives many of our customers to our T-15 high-speed steel made in the USA.

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
