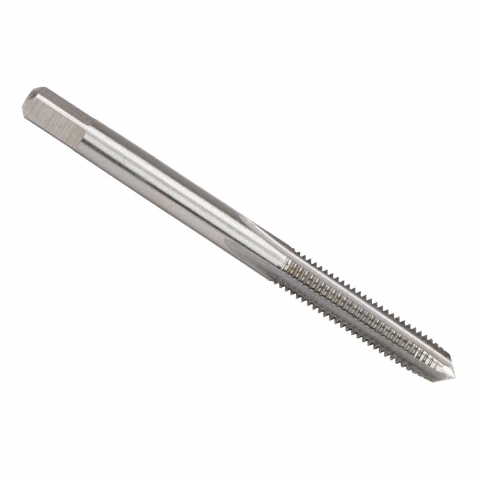

Tap, M5x0.8 Metric, Plug Style
- M5x0.8 Metric Hand Tap
- Plug style (3-5 chamfered threads)
- High speed steel (HSS)
- Utilize in through or blind hole tapping
- Metric Coarse Thread
Part Number: 4837
Weight: 0.02 lb
Weight: 0.02 lb
Price: $7.95
Share this page:
http://lmscnc.com/4837
http://lmscnc.com/4837
Hand taps are the most commonly used general purpose tap. They are recommended for tapping free machining steels, stainless steels, aluminum, zinc, and ductile materials.
Plug taps have 3-5 chamfered threads and are utilized in either through or blind hole tapping.
The High Speed Steel (HSS) construction gives good wear-resistance.
| Tap Type | Hand Tap |
| Thread Size | M5x0.8 |
| Class of Fit | 6H |
| Thread Limit | D4 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Thread Standard | Metric Coarse |
| Overall Length (Inch) | 2.3750" (60.325 mm) |
| Thread Length (Inch) | 0.8750" (22.225 mm) |
