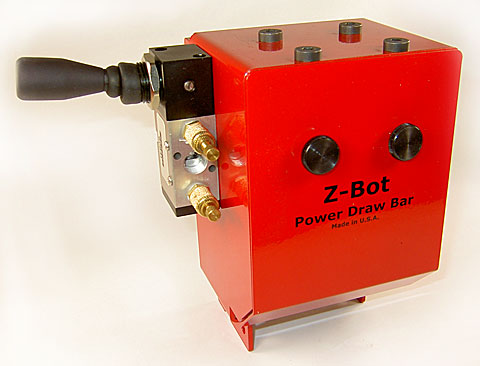

Power Drawbar, R8 Mini Mill 2936 (Discontinued)

Great for CNC mini mills
Works with the Tormach tooling system
Fits all mini mills with R8 spindle

Part Number: 2936 (Discontinued)
Weight: 8.00 lb

Price: $349.00

Share this page:
http://lmscnc.com/2936

The Z-Bot Power Drawbar is a new product developed for the popular Tormach Tooling System.

Installation is simple. Simply drill and tap four holes in the mill head, screw in the spring loaded draw bar, bolt on the power unit, hook up your shop compressor and you are ready to go.

To change a Tormach tool simply flip the lever, insert the tool, and flip the lever again. The entire process takes less than 5 seconds with the power draw bar.

Requires 80 PSI air pressure.

Works with the Belt Drive Conversion Kit, PN 2560.

Chris' Tips

Chris' Tips
The Z-Bot Power Drawbar works with the Tormach Tooling System. Z-Bot is developing a tool holder modification program for existing Tormach tooling. This program will cut chamfers on the shank and grooves on the flange of the Tormach tool holders you already have. So if you are thinking about going to Tormach, there's no need to worry about tooling becoming obsolete. Enjoy the benefits of the draw bar now, and then, when you upgrade to the full tool changer, send your holders to Z-Bot to be modified for a modest fee.

The power drawbar is a component of the Z-Bot Automatic Tool Changer. You can install the power drawbar now, and upgrade to the tool changer later. The upgrade kit includes a $50 rebate coupon so there is no extra cost to install the power drawbar now and upgrade to the full automatic tool changer later.

Here is a video of the power drawbar in action.

This kit comes with complete instructions for installation.

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

2560 Belt Drive Conversion Kit, Mini Mill

This product works with mills with a R8 spindle taper including:

BusyBee CX605 Craftex Mini Mill
Cummins (Tools Now) 7877 Mini Mill
Eastwood 32498 Mini Mill
Harbor Freight 44991 Central Machinery Mill/Drill
Homier 03947 Speedway Mini Mill
Northern Tool 49657 KLUTCH Mini Mill
Penn Tool Co XJ-9510-1 Precise Mini Mill
SIEG X2-R8 Mini Mill
Travers Tools OT2213 OTMT Mini Mill
SIEG X2P Mini Mill
LittleMachineShop.com 4962 SIEG Mini Mill
SIEG X2D Mini Mill
SIEG X2L Mini Mill
WEN 33013 WEN Mini Mill
SIEG X2LF Mini Mill
BusyBee CX612 Craftex Mini Mill
SIEG SX2 Mini Mill
Micro-Mark 84630 MicroLux Mini Mill
LittleMachineShop.com 3900 HiTorque Mini Mill
SIEG SX2L Mini Mill
LittleMachineShop.com 3960 HiTorque Mini Mill
LittleMachineShop.com 3990 HiTorque Mini Mill
LittleMachineShop.com 4190 HiTorque Mini Mill
LittleMachineShop.com 6450 HiTorque Mini Mill
SIEG SX2LF Mini Mill
Grizzly G0781 Mill/Drill
