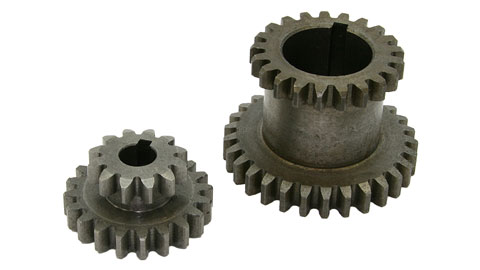

Metal Transmission Gear Kit, Mini Lathe & 3MT Mini Mill

Replaces both plastic transmission gears with metal
Fits mini lathes and 3MT mini mills
Small Gear: 12 Teeth / 20 Teeth, 12 mm Bore, 4 mm Keyway
Large Gear: 21 Teeth / 29 Teeth, 30 mm Bore, 5 mm Keyway

Part Number: 3448
Weight: 1.03 lb

Price: $67.95

Share this page:
http://lmscnc.com/3448

Once this steel gear set is installed on your mini lathe or mini mill, you will no longer have to worry about breaking the hard-to-replace gears inside the headstock.

On the mini lathe, the belt drive ensures that expensive parts don't break from overloads.

On the mini mill, the easy-to-replace intermediate gear on top of the headstock is still plastic. This helps to ensure that you don't break expensive and hard to replace parts.

The smaller in this set is smaller of the two transmission gears. It has 12 Teeth on one end and 20 teeth on the other.

The larger of the two is the larger of the two transmission gears. It has 21 Teeth on one end and 29 teeth on the other.

Contents

This product contains the following items:
	Description	Qty
	Gear, 2-Speed Intermediate Shaft, Metal, P/N 3451	1
	Gear, 2-Speed Spindle, Metal, P/N 3453	1

Compatibility

Compatibility

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3004 7x12 Mini Lathe (Metric)
Warco 3005 7x12 Mini Lathe (Imperial)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Grizzly G0765 7x14 Mini Lathe

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

Bolton XJ-9510 Mill/Drill
Clarke CMD300 Milling Drilling Machine
Grizzly G8689 Mini Milling Machine
Hare & Forbes HM-10 Mill/Drill
Princess Auto 8507667 Powerfist Mini Mill
SIEG X2-MT3 Mini Mill
Micro-Mark 82573 MicroLux Milling Machine
Grizzly G0781 Mill/Drill
