Tap & Die Set, 41-Piece 3597  (Discontinued)

This USA-made IRWIN brand 41 PC set can be used to restore or start new threads. The taps and dies are made from high carbon steel.

The Hanson 41-Piece Machine Screw / Fractional Tap and Hex Die Set includes machine screw taps, fractional plug style taps, plus 5/8-inch and 1-inch hexagon dies in 17 different sizes. A DS-26 adjustable guide diestock and DS-57 plain diestock for cutting external threads on metal cylinders is included, as well as a TR-88 adjustable handle tap wrench to create internal screw threads, a TR-73 two-in-one tap wrench, and a TR-50 two-in-one tap wrench. There's also an 18-leaf standard thread pitch gauge, a screwdriver, and a handy plastic case to keep everything organized.

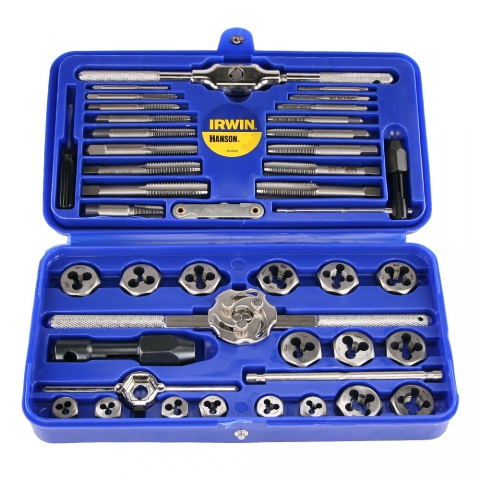

41-pc set in plastic case includes the following items:

Machine Screw Plug Tap and 5/8" Hexagon Dies in sizes: 4 - 40 NC, 6 - 32 NC, 8 - 32 NC, 10 - 24 NC, 10 - 32 NF, 12 - 24 NC

Fractional Plug Tap and 1" Hexagon Dies in sizes: 1/4" - 20 NC, 1/4" - 28 NF, 5/16" - 18 NC, 5/16" - 24 NF, 3/8" - 16 NC, 3/8" - 24 NF, 7/16" - 14 NC, 7/16" - 20 NF, 1/2" - 13 NC, 1/2" - 20 NF

Pipe Thread Plug Tap and 1" Hexagon Dies in sizes: 1/8" - 27 NPT

Threading Tools: Adjustable Die Stock - 1" Dies, Plain Die Stock - 5/8" Hexagon Dies, Adj. Handle Tap Wrench - Taps No. 0 to 1/2", T-Handle Wrench - Taps No. 0 to 1/4", Two-in-One Tap Wrench - Taps 1/4" to 1/2", 18 Leaf Standard Thread Pitch Gauge, Empty Plastic Case
