CNC Spindle Control Upgrade Kit, Mini Lathe and Mini Mill
- Converts brushless DC drive to CNC control
- Provides speed, on/off, and direction control
- For 500 watt Brushless DC drive, 120V 60Hz
- Compatible with SIEG SX2 and HiTorque mini mills
- Comnpatible with SIEG SC2 and HiTorque mini lathes

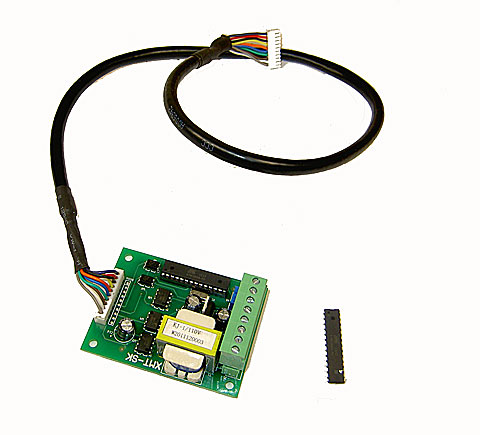

This CNC spindle control kit consists of a small circuit board that replaces the circuit board with the speed control potentiometer, plus a replacement chip for the motor controller card.
This conversion kit works on many SIEG SX2 and HiTorque mini mill as well as SIEG SC2 and HiTorque mini lathes.
See the Compatibility tab for machines that work with this product.
Here are installation instructions with a wiring diagram.
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- BusyBee CX612 Craftex Mini Mill
- SIEG SX2 Mini Mill
- Micro-Mark 84630 MicroLux Mini Mill
- LittleMachineShop.com 3900 HiTorque Mini Mill
- SIEG SX2L Mini Mill
- LittleMachineShop.com 3960 HiTorque Mini Mill
- LittleMachineShop.com 3990 HiTorque Mini Mill
- LittleMachineShop.com 4190 HiTorque Mini Mill
- SIEG SX2LF Mini Mill
