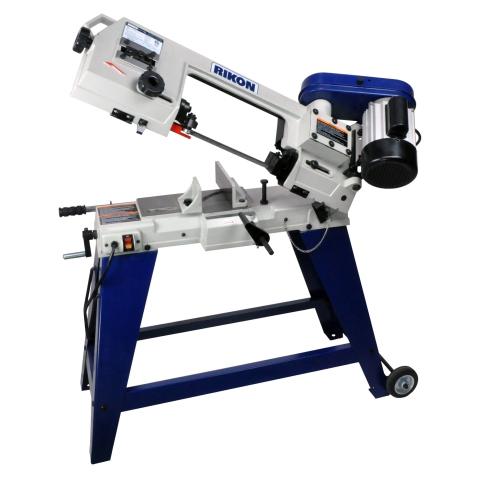

Band Saw, 4x6, Horizontal / Vertical
- Floor standing band saw
- Horizontal position for precise cutting and automatic shutoff
- Vertical position for freehand cutting
- 3 blade speeds
- 4" x 6" capacity
The vertical position allows for freehand cutting of large, thin work pieces.
In the horizontal position the vise can be set from 90 to 45 degrees for angle cuts. The saw has adjustable down pressure and automatic shutoff for unattended operation. There is a work stop for repetitive cuts at the same dimension.
The saw comes equipped with a 14 TPI blade.
|Cutting Capacity, Rectangular||4" x 6" (102 mm x 152 mm)|
|Cutting Capacity, Round||5" (127 mm)|
|Blade Size||64-1/2" x 1/2" x 0.025"|
|Angle Cuts, Horizontal Position||90°-45°|
|Motor||0.74 hp (550 Watts)|

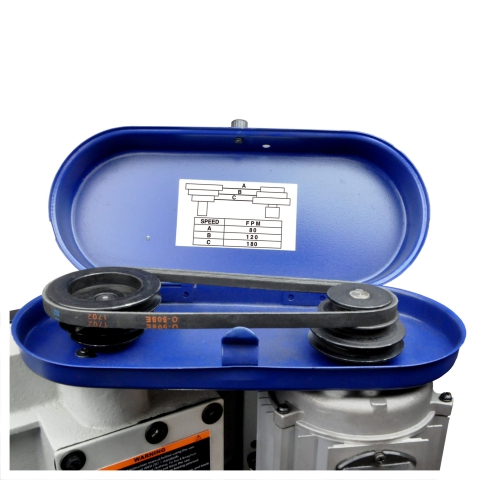

|Blade Speeds||88 130 210 FPM|
|Power Requirements||120 V 60 Hz 6 Amps|
|Machine Weight||128 lbs (58 kg)|
|Base Dimensions (W x D)||34.0" x 14.0" (864 mm x 356 mm)|
|Overall Dimensions, Horizontal Position (W x D x H)||37.8" x 19.7" x 37.8" (960 mm x 500 mm x 960 mm)|
|Overall Dimensions, Vertical Position (W x D x H)||37.8" x 19.7" x 55.1" (960 mm x 500 mm x 1400 mm)|
|Crated Weight||134 lbs (61 kg)|
|Crate Dimensions (W x D x H)||39.6" x 15.0" x 15.2" (1007 mm x 382 mm x 385 mm)|

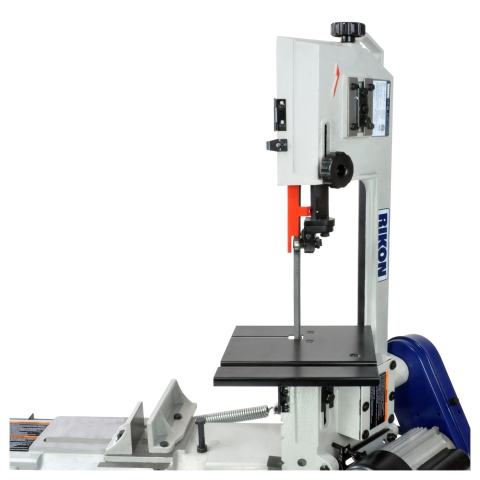

|Vertical cutting orientation|
|Vice and stop|

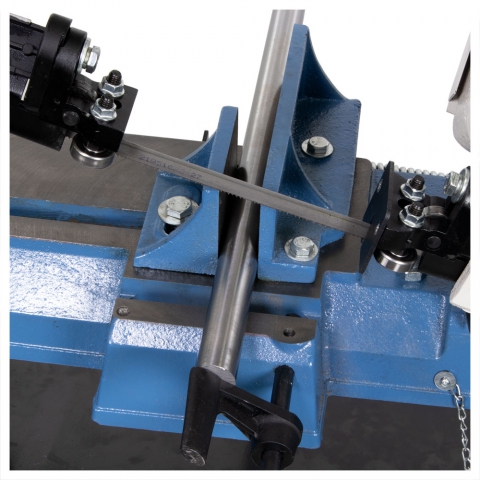

|Vice and stop holding stock|

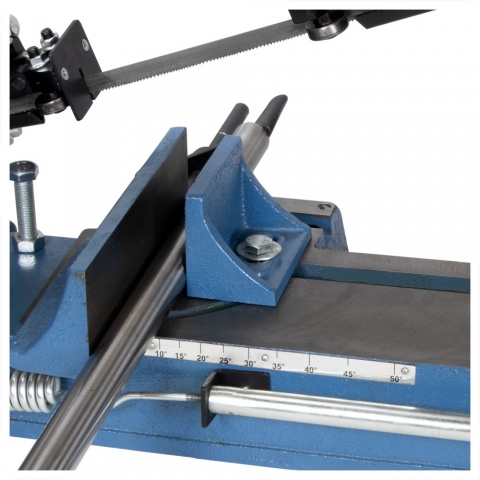

|Vice and vise angle gage|

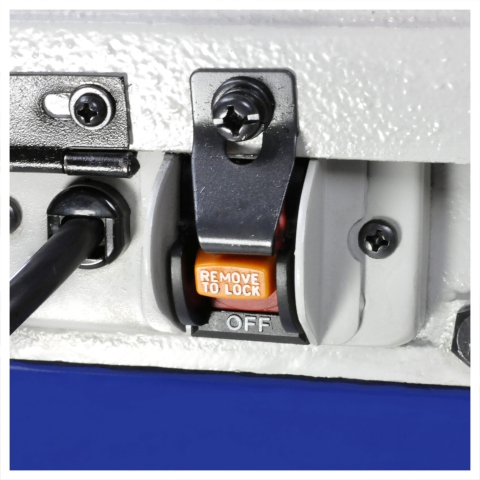

|Auto shutoff on horizontal cut|

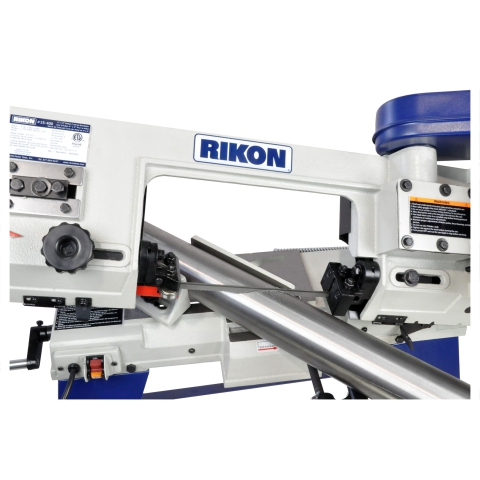

|Vertical cutting detail|

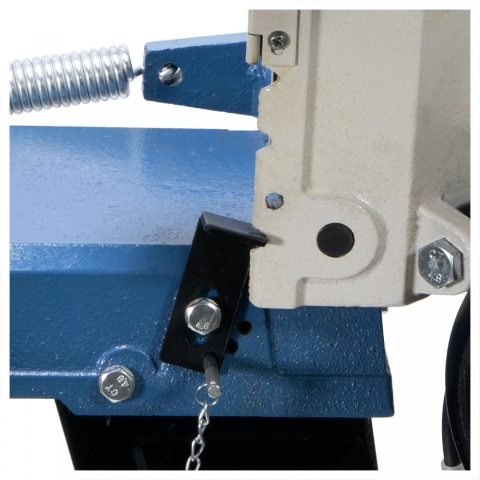

|Multiple position vertical lock|
