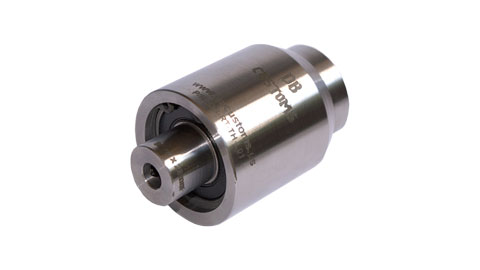

Rotary Broach Tool Holder 5622 (Discontinued)

Creates square and hexagonal, blind or through holes
Broach depth to 1.5 times broach width
Mounts to 33 Jacobs taper arbor
Adjustment free style meaning the setup time is as fast and easy as possible
Uses 8 mm broaches

Part Number: 5622 (Discontinued)
Weight: 0.50 lb

Price: $262.00

Share this page:
http://lmscnc.com/5622

Description

The rotary broach creates square and hexagonal, blind or through holes. It can be used in a milling machine or a lathe.

The broaching depth can be up to 1.5 times the dimension across the flats of the shape you want to broach. For example, you can broach a ¼" square hole up to 0.375" deep.

The material to be broached should not be harder than 200 Brinell. This means you can broach aluminum, brass, bronze, soft cast iron, and mild steel. In general, you are safe with any steel where the last two digits of the AISI number are less than 30.

The rotary broach tool holder is a lot like a live center. There is a bearing between the tool and the shank. But the tool is mounted at a 1-degree angle to the shank. So as the shank rotates, it "wobbles" the cutting tool. This 1-degree wobble advances each of the facet cutting edges in turn as the broach advances into the hole. The material that is removed curls into the bottom of the hole.

Chris' Tips

Chris' Tips
Rotary broaching is a fast and accurate method of producing internal polygon forms.

Here's a photo of a hex hole made with the rotary broach.

This rotary tool can handle up to 850 pounds of axial load. This is enough force to broach a 1/2" hex shape in steel.

Typically bearing life is 100 to 1000 broaches depending on broach size, depth, and type of materiel being broached.

Bearings are inexpensive and easy to replace using snap ring pliers and a press (Internal and external snap ring pliers required)

Never needs re-lubrication, simply replace the sealed bearings
