Extended Cross Slide Travel Kit DRO (Black Scales)
- Specific Screw for our newer style 5200 HiTorque lathes
- Also works on any SIEG mini lathe that has the 5567 DRO kit installed
- ONLY ORDER THIS VERSION IF YOU HAVE THE NEWER, BLACK DRO READOUTS
This kit adds one inch to the travel of the cross slide on 7x12, 7x14, and 7x16 mini lathes with the SIEG DRO mounted. These are SIEG C2 and C3 lathes.
The increased travel is away from the centerline of the lathe so you can work on larger diameter work pieces.

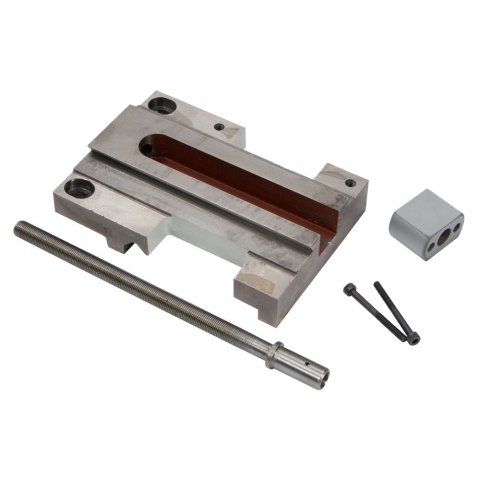

This kit replaces the saddle and the cross slide feed screw, and it includes a spacer for the longer screw.
This kit comes with complete instructions for installation.
|Cap Screw, M4x40, Socket Head, P/N 4470||2|
|Feed Screw, Cross Slide Extended Travel, DRO, P/N 5684||1|
|Saddle, Extended Travel, P/N 4449||1|
|Spacer, Extended Travel, P/N 4451||1|
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
