CNC Conversion Kit for Deluxe Bench Mills 6240 (Discontinued)

Heavy Metal CNC kit
Fits all bench mills with 700 mm x 160 mm table
16 mm x 5 mm ball screws
Preloaded ball nuts for minimum backlash
NEMA 23 & 24 motor mounts

Part Number: 6240 (Discontinued)
Weight: 15.0 lb

Price: $775.00

Share this page:
http://lmscnc.com/6240

This kit provides the mechanical elements you need to convert a bench mill with a 700 mm x 160 mm table to CNC. It includes ball screws, ball screw nuts, thrust bearings, and motor mounts plus the fasteners you need to install them. It does not include motors, drivers, power supply, or software. See the Documents tab for the electronics and software you will need in addition to this kit.

The ball screws are 16 mm diameter and 5 mm pitch, C7 grade with a tolerance of 30 microns over 300 mm.

All aluminum parts are clear anodized for corrosion and scratch resistance.

This kit is designed to be adjustable to any and all of the machines shown on the compatibility tab. Sometimes it just isn't possible. Because of manufacturing tolerances, there is variation from machine to machine. When installing the kit you may need to make some modifications not listed in the instructions.

Chris' Tips

Chris' Tips
Made by HEAVY METAL, these kits are the most solid, rigid kit you can find. They have been on the market since 2006. They have had very few revisions in all that time.

Your mill may need some modification for everything to fit correctly.

See the Documents tab for the electronics that Heavy Metal recommends.

Here are the installation instructions.

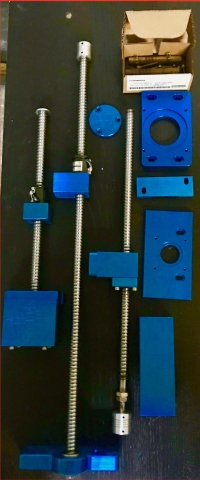

Contents

3 ball screws. 16 mm x 5 mm pitch
3 Double Nut ball nuts for minimal to no backlash
X axis motor mount for Nema 23 motor
X axis ball nut block and bearing block
Y motor mount for Nema 23 motor
Y axis ball nut block
Z motor mount for Nema 34 motor
Z axis ball nut block & bearing block
Zero backlash helical couplings for X, Y axis for .25” Dia. Motor shafts
Zero backlash helical coupling for Z axis for .5” Dia. Motor Shaft.
New Thrust bearing for all 3 axes
Stainless steel cap screws for mounting motors, and other hardware as needed

Compatibility

Compatibility

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

SIEG X2.7L Bench Mill
WEN 33075 WEN Bench Mill
LittleMachineShop.com 5550 HiTorque Bench Mill
LittleMachineShop.com 6550 HiTorque Bench Mill
SIEG SX2.7L Bench Mill

Shipping

This item ships directly from our supplier in Texas to you. It might be a day or two longer before it ships, and you will receive it in a separate package from other items on your order. You might receive this item a few days before or a few days after you receive items shipped from our warehouse.

Documents

Recommend Electronics

From AutomationTechnologiesInc.com

2 - Nema 23 motors 570oz/in, KL23H2100-50-4BMC/WITH CABLE
1 - Nema 34 motor 1200oz/in, KL34H2120-60-4AC/WITH CABLE
2 - Nema 23 drivers, KL-5056 20-50VDC 5.6A
1 - Nema 34 driver, KL-8060 24-80VDC 6A
1 - 48V/12.5 Amp Volt Power Supply, KL-600-48
1 - 24 Volt Power Supply, S-25-12
1 - PoKeys57CNC Ethernet and USB Control for Mach4 and Mach3
1 - Pokeys57cnc Cable Pack, essential for getting things hooked up to the board
1 - Mach4 Control Software, fully licensed version
1 - Aluminum Box up to 6 axis with E-stop, Switch, Power outlet, Fuse, 4 motor connectors

From Amazon

1- Ethernet extender, RJ45 Male to female Screw Panel Mount 1ft long
1 - Cat 6 patch cord at least 10' long
1 - 14 AWG Computer power cord, Nema5-15P to C13
6 - limit switiches, URBEST AC 250V 5A SPDT Hinge Roller Lever Micro Switch

Also

1 - Laptop computer running Windows 10

Recommended: Lenovo Thinkpad Yoga Touchscreen with Windows 10 (get these refurbished off Ebay)
