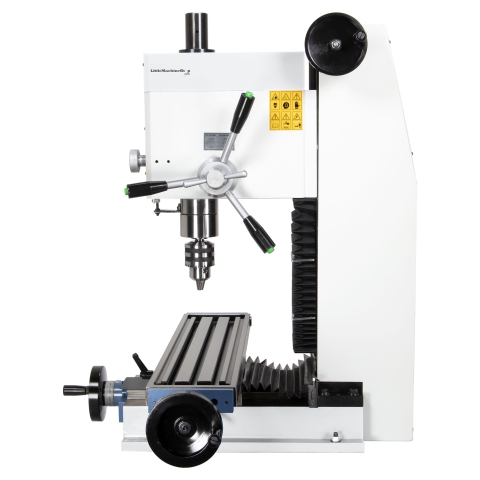

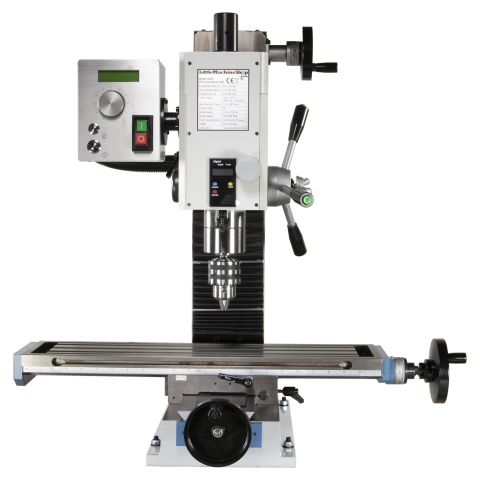

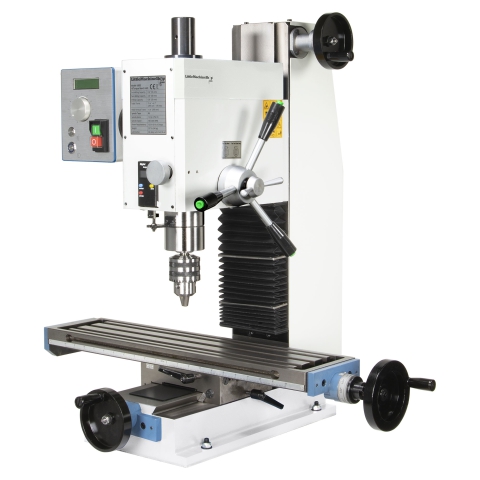

HiTorque Bench Mill
- 750 watt (1 hp) brushless motor/gearless spindle
- Clear and precise spindle controls
- Large X-Y table 23.4" x 5.5"
- True quill and drill press-style handles
- Tapping mode for reversing taps out

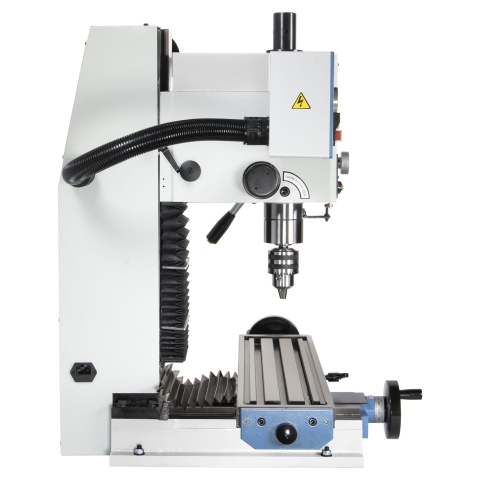

The model 6500 bench top mill provides a larger table, more travel, more horsepower, and more rigidity than other brand mills in its size class.
A 750 Watt (1 hp) brushless DC motor provides abundant spindle power and tremendous low-end torque. The drive allows for spindle speeds from 100 to 2500 RPM continuously in both forward and reverse. A belt drive from motor to spindle eliminates any failure from gears breaking. NSK quality spindle bearings ensure years of quiet operation.
The combination of a large table (23.4" x 5.5") and extensive travel along X, Y, Z-axis (15.6", 6.7", 11.6") provides a large work envelope. Precision ground ways ensure smooth and accurate movement. Adjustable gibs are on all dovetail ways. A fine feed knob on the Z-axis provides for precise control.
The mill has an R8 spindle for wide tool availability. A true quill and drill press-style handles make for easy drilling. Tapping-mode is another standard feature with a button on the end of each handle allowing you to reverse the spindle to make tapping easy.

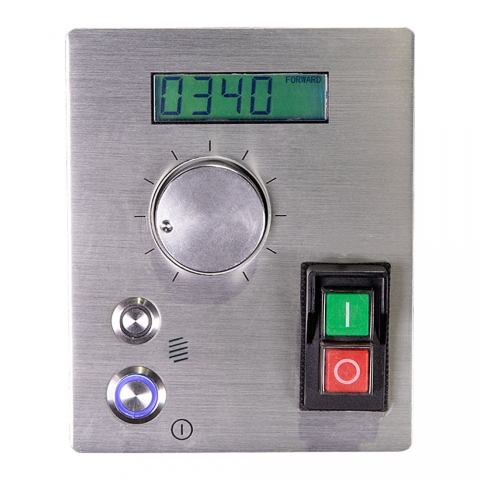

A digital spindle speed display and a separate digital depth gauge for the quill which reads in inches and mm. You can automatically resume running at the last-used spindle speed. Spindle fine feed and position lock are also standard.
Large anodized handwheels on the X and Y axes and 10 TPI lead screws (accurate to 0.001") provide accurate readings. Ball thrust bearings on feed screws ensure smooth movement.
At LittleMachineShop.com, we stand behind every machine we sell! If it’s not right, we’ll make it right and we have the in-house technicians and replacement parts in our U.S. warehouse to back it up.
This mill is a version of the SIEG SX2.7 built to LittleMachineShop.com specifications.
*NOTE* We ship machines only to the US and Canada.
- 750 Watt (1 hp) brushless DC spindle drive
- R8 Spindle for wide tool availability
- NSK brand Japanese-quality spindle bearings
- No gears in spindle drive
- 0.001" Graduated dials, 0.100" per turn
- Digital position readout on the quill reads in inches and mm
- Large X-Y table 23.4" x 5.5"
- Tapping mode for reversing taps out
- Solid rectangular column for rigidity
- Dovetail column maintains head alignment at any height
- E-stop safety power switch
- Forward and Reverse modes on the power panel
- Spindle speed display
- Spindle fine feed and position lock
- Fine feed on Z-axis for precise control
- Adjustable gibs on all dovetail ways
- Includes R8 to 33JT drill chuck arbor and drill chuck
|End Milling Capacity||0.6" (16 mm)|
|Face Milling Capacity||2.0" (50 mm)|
|Drilling Capacity||0.8" (20 mm)|
|Table Size||23.4" x 5.5" (595 mm x 140 mm)|
|T-Slots||3 slots 0.47" (12.0 mm) wide|
|X-Axis Travel||15.6" (395 mm)|
|Y-Axis Travel||6.7" (170 mm)|
|Z-Axis Travel||11.6" (295 mm)|
|Throat||7.5" (190 mm)|
|X- and Y-Axis Feed Screws||0.100" (2.54 mm) per rotation|
|Quill Travel||2.8" (71 mm)|
|Maximum Spindle to Table||12.2" (310 mm)|
|Positioning Accuracy||0.0004" (0.010 mm)|
|Spindle Motor||1.01 hp (750 Watts)|
|Spindle Speed||0 - 2000 RPM|
|Power Requirements||120 V 60 Hz 10 Amps|
|Machine Weight||207 lbs (94 kg)|
|Base Dimensions (W x D)||9.1" x 16.1" (230 mm x 410 mm)|
|Mounting Holes Center to Center (W x D)||8.27" x 12.01" (210.0 mm x 305.0 mm)|
|Overall Dimensions (W x D x H)||28.9" x 25.0" x 28.5" (735 mm x 635 mm x 725 mm)|
|Crated Weight||262 lbs (119 kg)|
|Crate Dimensions (W x D x H)||32.0" x 28.0" x 35.5" (813 mm x 711 mm x 902 mm)|

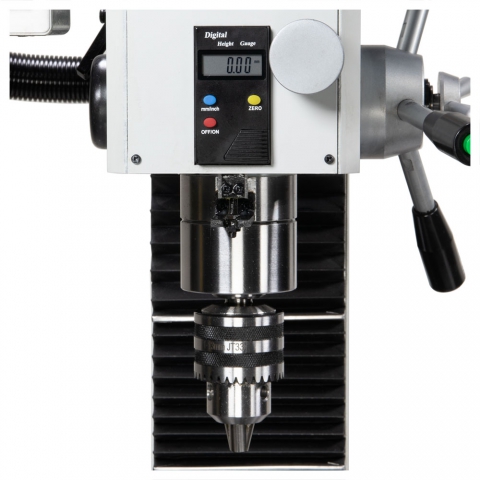

|Digital Height Gauge, Spindle, and Fine Feed Control|

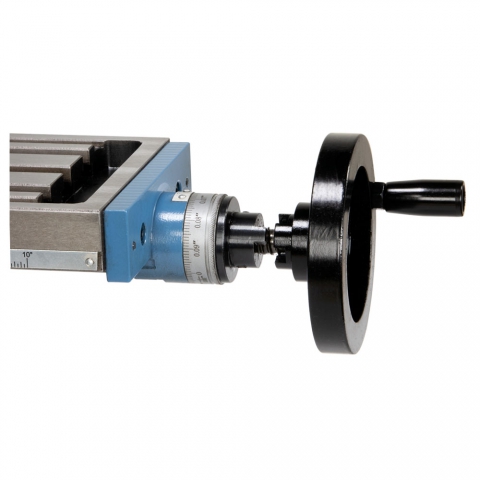

|X-Axis Hand Wheel|

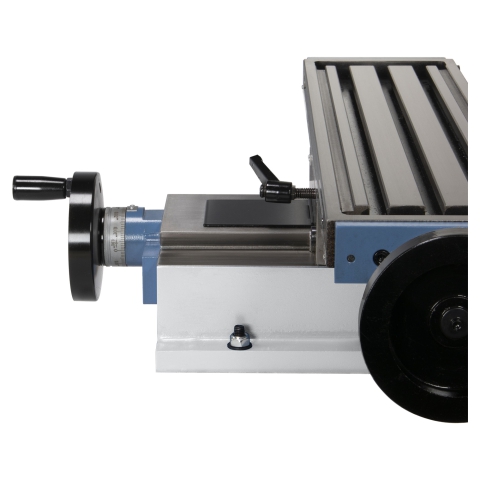

|Y-Axis and Wheel|

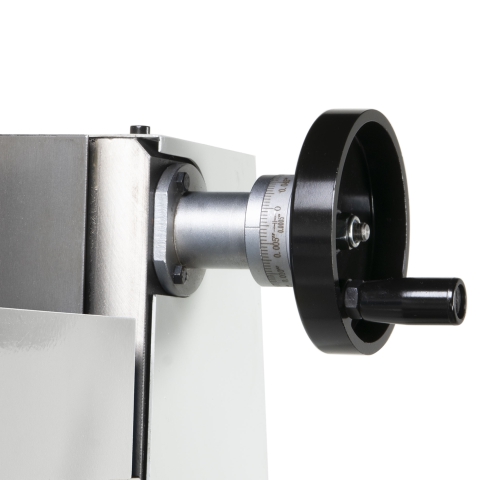

|Z-Axis Hand Wheel|

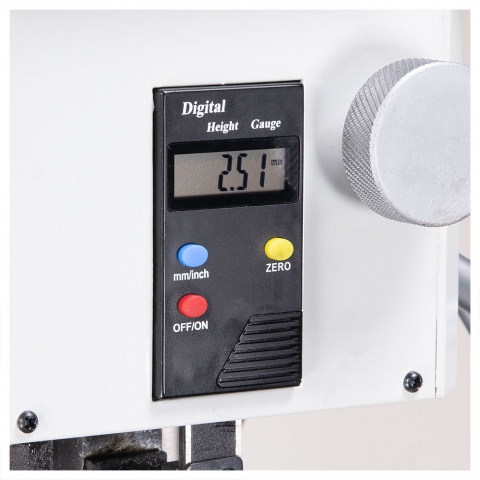

|Digital Height Gauge|
The HiTorque Bench Mill comes with the following:
- Bench Mill Users Guide
- One 1/2" drill chuck and R8 arbor
- Two T-slot nuts
- Three end wrenches
- Five hex (Allen) wrenches
- One spanner wrench
- Oil can (plastic)
