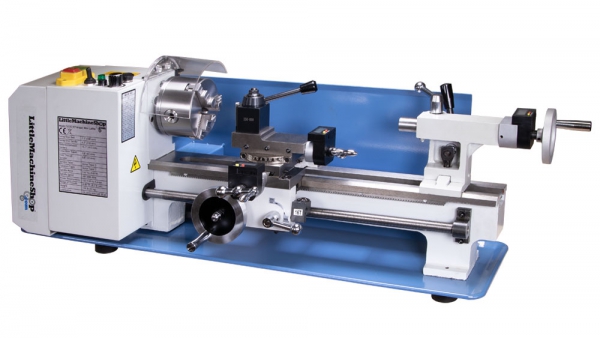

HiTorque 7x16 Mini Lathe, Deluxe
- Features of 5100 (most powerful, most low-speed torque, gearless spindle, cam-lock TS, 4" chuck)
- Includes DRO readouts on compound rest, cross slide, and tailstock
- Metal hand wheels and chrome levers
- Includes 0XA wedge-type quick change tool post and five tool holders
- CHUCK GUARD HAS NOW BEEN REMOVED
This lathe comes equipped with digital readouts on the cross slide, compound rest, and tailstock quill. The attractive hand wheels are all metal, and the levers are chrome.
The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 50 RPM to 2500 rpm continuously in both directions. There are no gears to shift.
The all steel, wedge-type quick change tool posts accepts turning tools up to 1/2" shank. It comes with five toolholders (for details, see part number 3112).
Real top and bottom half-nuts and a reversible 16 TPI lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.35 to 8 mm pitch with the extra 21 tooth change gear that is included. Cutting inch threads is made even easier with the factory-installed threading dial.
The 7x16 lathe includes a chip tray, a backsplash guard, and spreaders to give the feet a broader stance.
This machine is shipped completely assembled and adjusted. Machined surfaces are coated with a viscous oil to prevent rust. It wipes off easily with a rag; no solvents necessary.
The LittleMachineShop.com model 7350 HiTorque Mini Lathe is a version of the SIEG SC2.
*NOTE* We ship machines only to the US and Canada.
- Our HiTorque machines do not have the plastic gears that break. When you read about mini lathes and mini mills breaking plastic gears, the vast majority of cases involve the two-speed gears inside the head. HiTorque machines, with the brushless DC drive, have a belt directly from the motor to the spindle. No gears at all in the spindle drive.
- Our larger HiTorque bench lathes have no plastic gear at all. Every gear is metal.
- Plastic gears are quieter than metal gears. Metal change gears raise the sound level to an objectional level.
- Plastic gears are appropriate to this application. They work fine and when you crash your lathe, they provide an inexpensive, easy to replace “mechanical fuse”.
- Plastic gears are more economical. We choose not to charge extra for a basically worthless feature.
- Mini Lathe Users Guide written by Chris Wood
- Digital readouts on the compound rest, cross slide, and tailstock quill
- 500 Watt output spindle motor
- NSK brand Japanese-quality spindle bearings
- No gears in spindle drive
- Metal hand wheels
- Chrome levers
- E-stop safety power switch
- Extended threading capability - inch and metric threads
- Rear apron shield to keep swarf out of the mechanism
- Cam lock tailstock with DRO
- Quick change tool post set with five tool holders
- Reversible lead screw for right and left hand threads
- 4" 3-jaw chuck
- Threading dial
|Swing Over Bed||7.1" (180 mm)|
|Swing Over Saddle||4.3" (110 mm)|
|Distance Between Centers||16" (410 mm)|
|Cross Slide Travel||2.6" (65 mm)|
|Spindle Through Hole||0.8" (20 mm)|
|Spindle Taper||#3 Morse taper|
|Tailstock Taper||#2 Morse taper|
|Range of Threads||4-80 TPI; 0.35-8.0 mm|
|Spindle Motor Output||0.67 hp (500 Watts)|
|Spindle Speed||50 - 2500 RPM|
|Power Requirements||120 V 60 Hz 8 Amps|
|Machine Weight||91 lbs (41 kg)|
|Crated Weight||114 lbs (52 kg)|
|Overall Dimensions (W x D x H)||31" x 10" x 12" (790 mm x 260 mm x 300 mm)|
|Crate Dimensions (W x D x H)||35" x 16" x 15" (900 mm x 410 mm x 380 mm)|

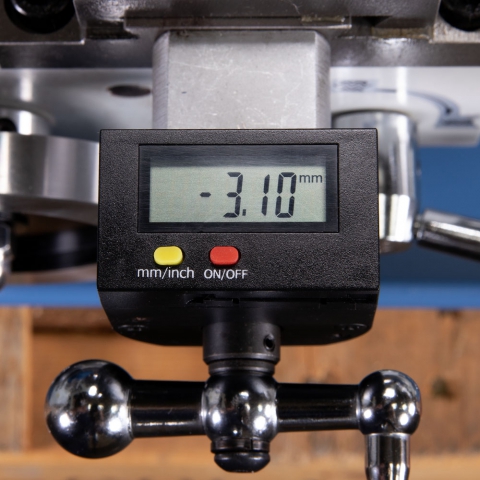

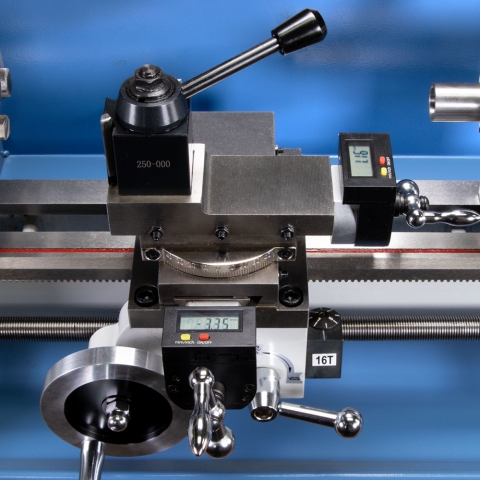

|DRO on Compound and Cross Slide|

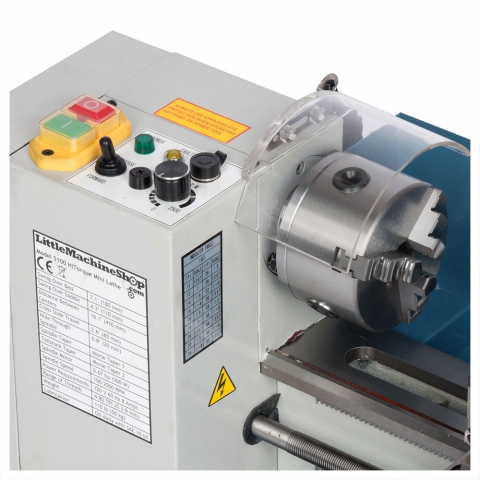

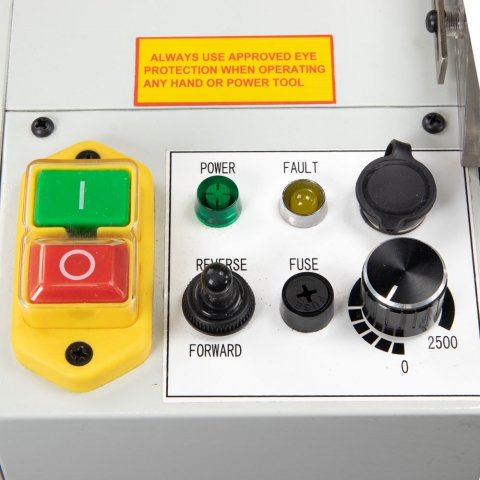

|Control Panel and and 3-Jaw Lathe Chuck - (CHUCK GUARD HAS NOW BEEN REMOVED)|

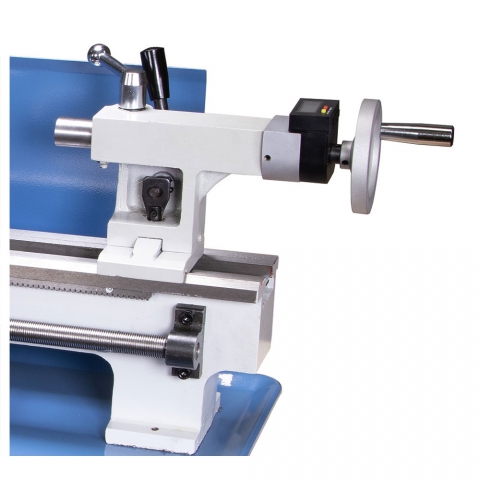

|Cam Lock Tailstock|
The HiTorque Deluxe Mini Lathe comes with the following:
- Mini Lathe Users Guide written by Chris Wood
- 4" (100 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
- Quick change tool post with five tool holders
- A Morse taper #2 dead center for the tailstock
- An 11-gear change gear set that includes a 21 tooth gear for accurate metric threading
- Two open end wrenches
- Four hex (Allen) wrenches
- A plastic oil can
