Products > Lathe > 6x10 Micro Lathe (C1) Accessories

Milling Attachment, Micro Lathe


Milling Attachment, Micro Lathe
Part Number: 5545
Weight: 7.34 lb

Price: $160.40

In stock
Quantity:


Share this page:
http://lmscnc.com/5545

PayPal Credit

  • Micro lathe milling attachment
  • Fits SIEG C1 6x10 micro lathe
  • Mounts to micro lathe cross slide
  • Allows for milling functions using a micro lathe
  • Includes mounting hardware

Description

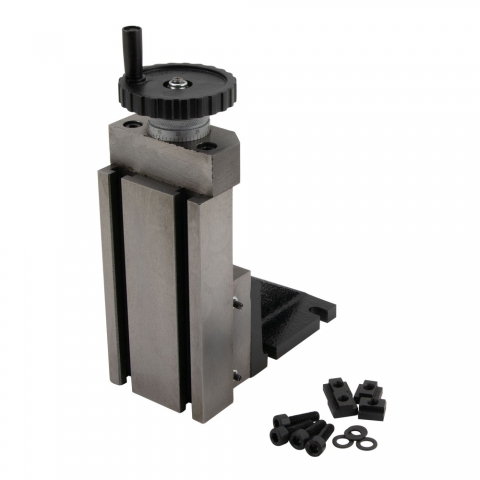

Micro lathe milling attachment for the SIEG C1 6x10 micro lathe. The attachment mounts to the top of the cross slide and holds the workpiece while milling with a cutting tool that is mounted on the spindle. Vertical movement is 3 3/4". Handwheel advance is 0.050" per revolution. Made of steel and cast iron. Includes 4 T-slot nuts, 4 bolts, and 4 washers.

T-slot nuts are 8 mm.

See compatibility tab for machines that are compatible with this product.

Photos

"Milling Attachment

Compatibility

Compatibility

This product works with the following lathes. (If your machine is not on this list, check with us before ordering.)

  •   Grizzly M1015 Shop Fox 6x10 Micro Lathe
  •   Micro-Mark 85181 MicroLux 6x10 Micro Lathe
  •   SIEG C1 6x10 Micro Lathe
  •   Woodstock International M1015 Shop Fox 6x10 Micro Lathe
