Vise, 3" Precision Milling, Professional Grade
Vise, 3" Precision Milling, Professional Grade
In stock
SKU:4740Shelf Location: (P33 - 01)
Couldn't load pickup availability
Key Features
Key Features
- Top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are hardened and ground
- Totally enclosed heat treated screw
- High repeatability and smooth operation

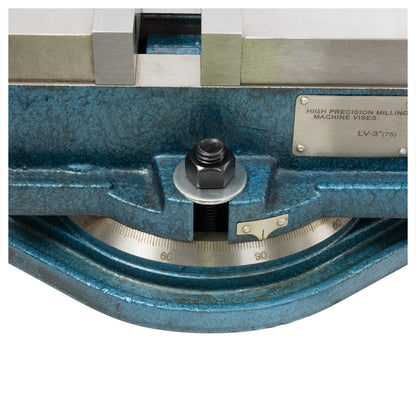

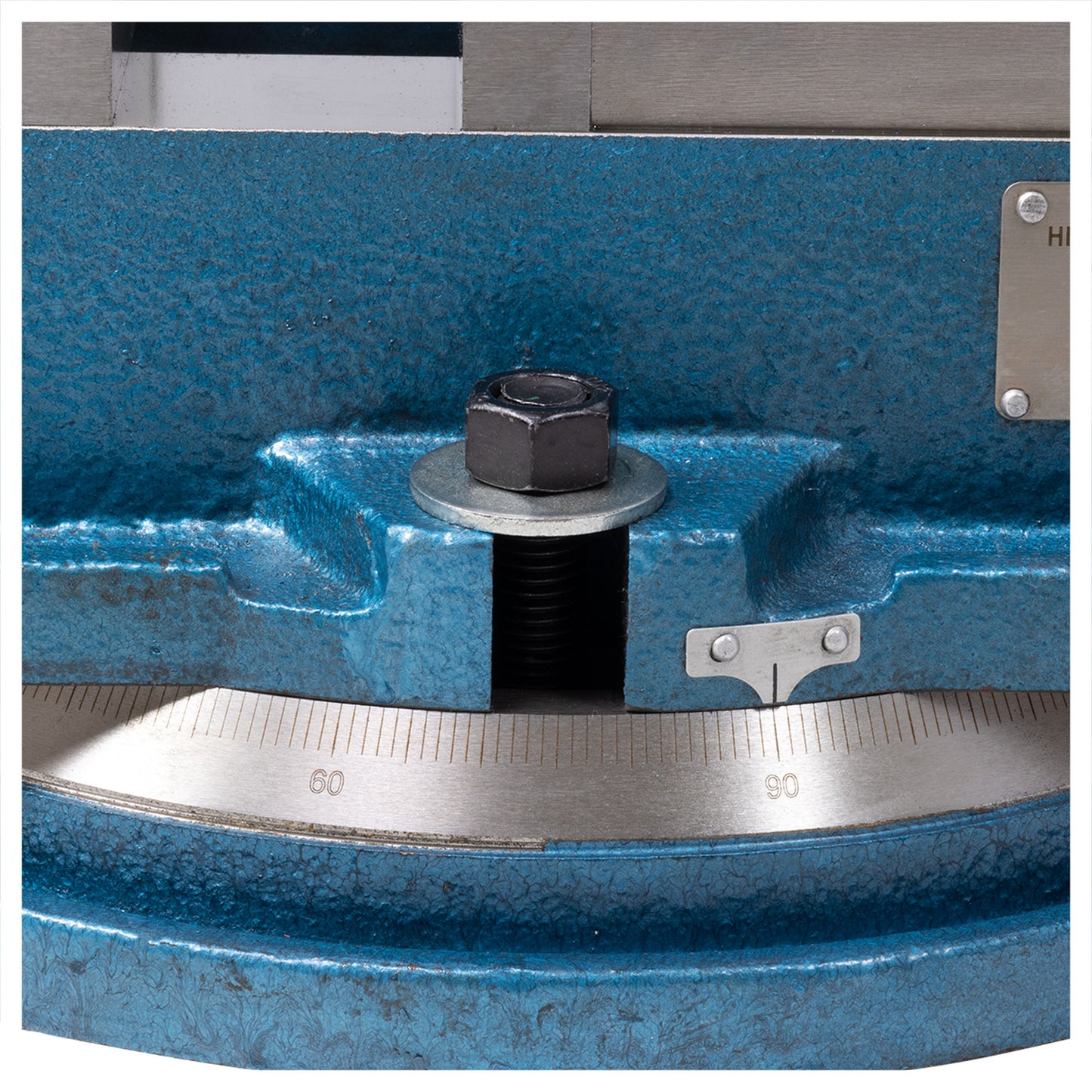

- Detachable swivel base features easy to read divisions
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

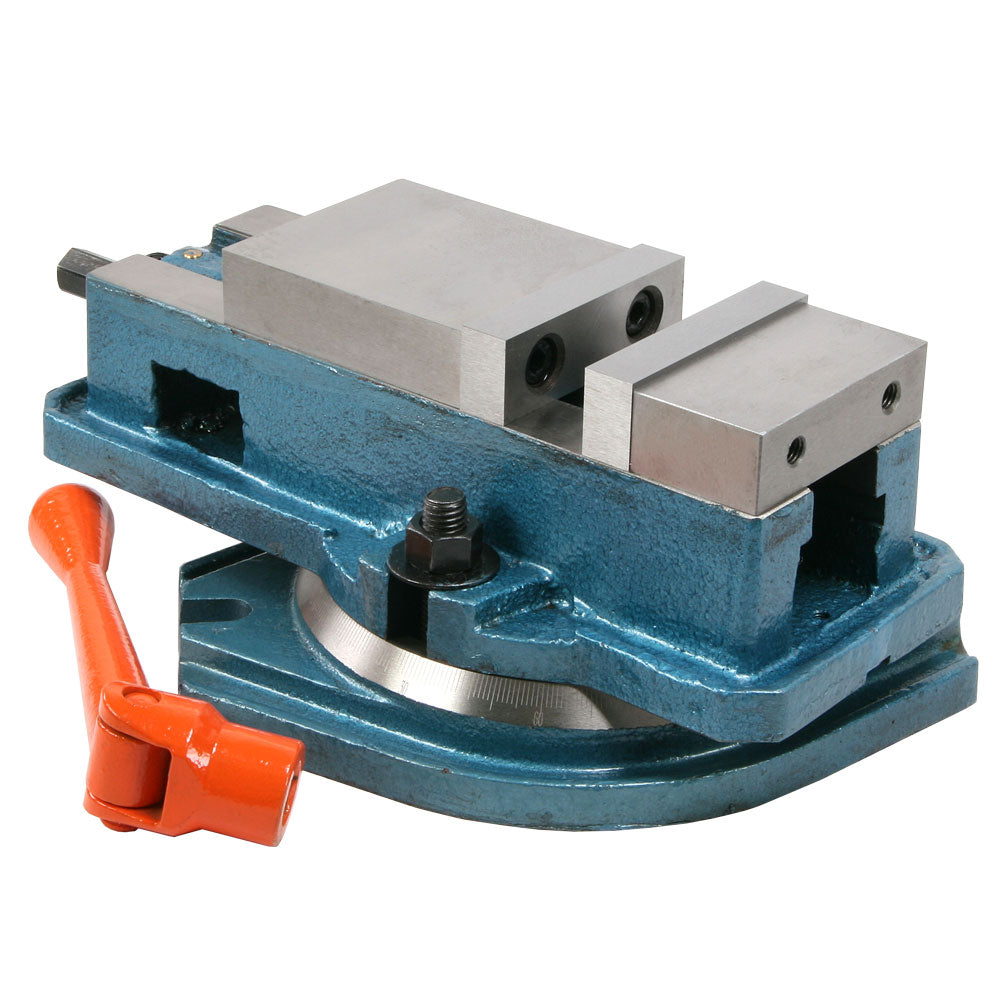

This is a very well-made professional grade precision 3" Kurt-style milling machine vise with a swivel base. The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are hardened and super precision ground. The detachable swivel base features easy to read divisions.

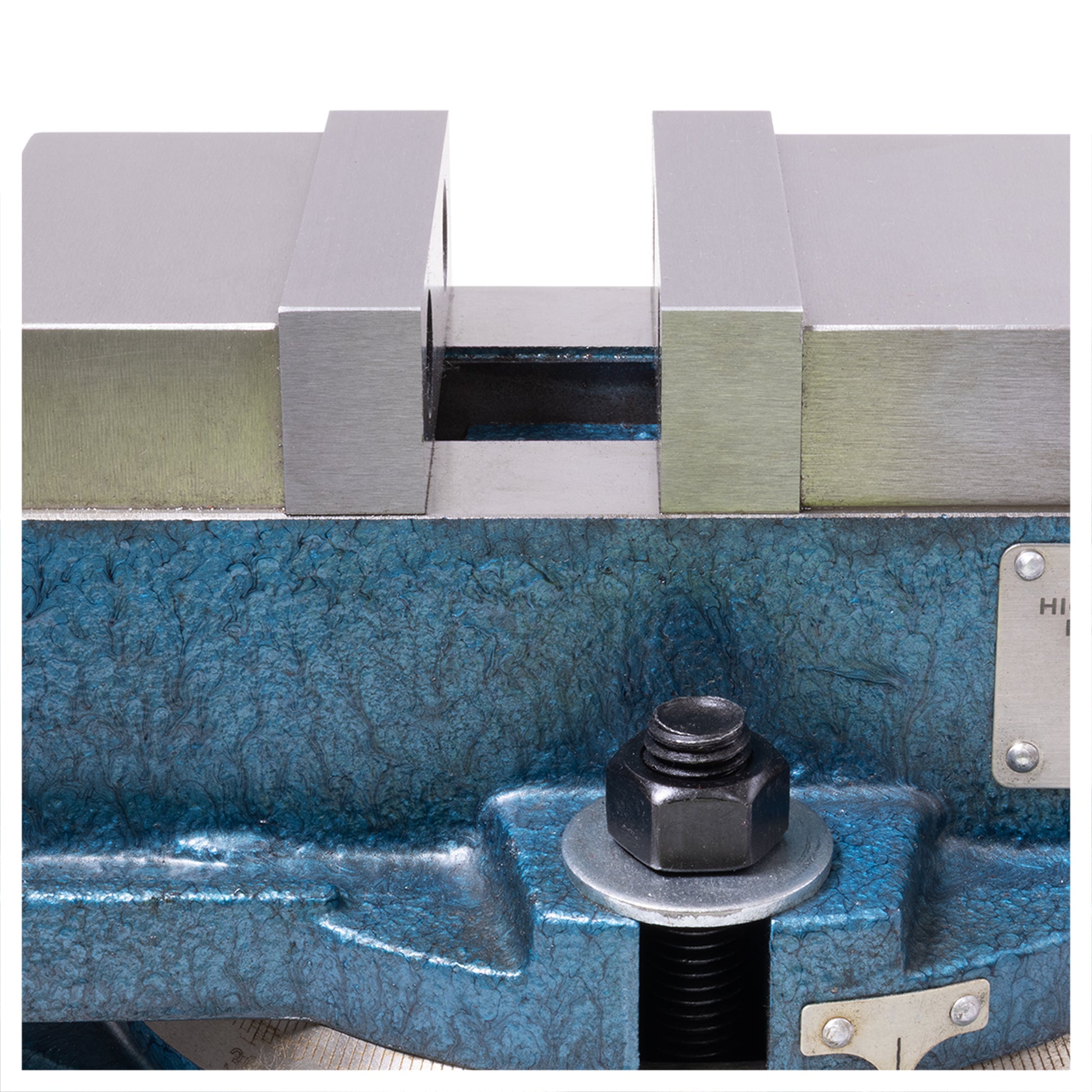

- Jaws are 3.15" wide, 0.95" deep, open 3", and are perpendicular to the ways within 0.004" in 4".
- Overall length is 11.6" and the height is 3.2" without base, and 4.3" with base. The ways are parallel to the base within 0.0003" in 4" without the swivel.
Vise features totally enclosed heavy-duty heat-treated screw. enclosure protects moving parts from materials or fluids that could cause damage.
The replaceable jaws can be mounted on either end of the fixed and movable jaw supports providing a wide range of clamping distances.
Chris' Tips
Take a look at our vise comparison page before you choose a vise.

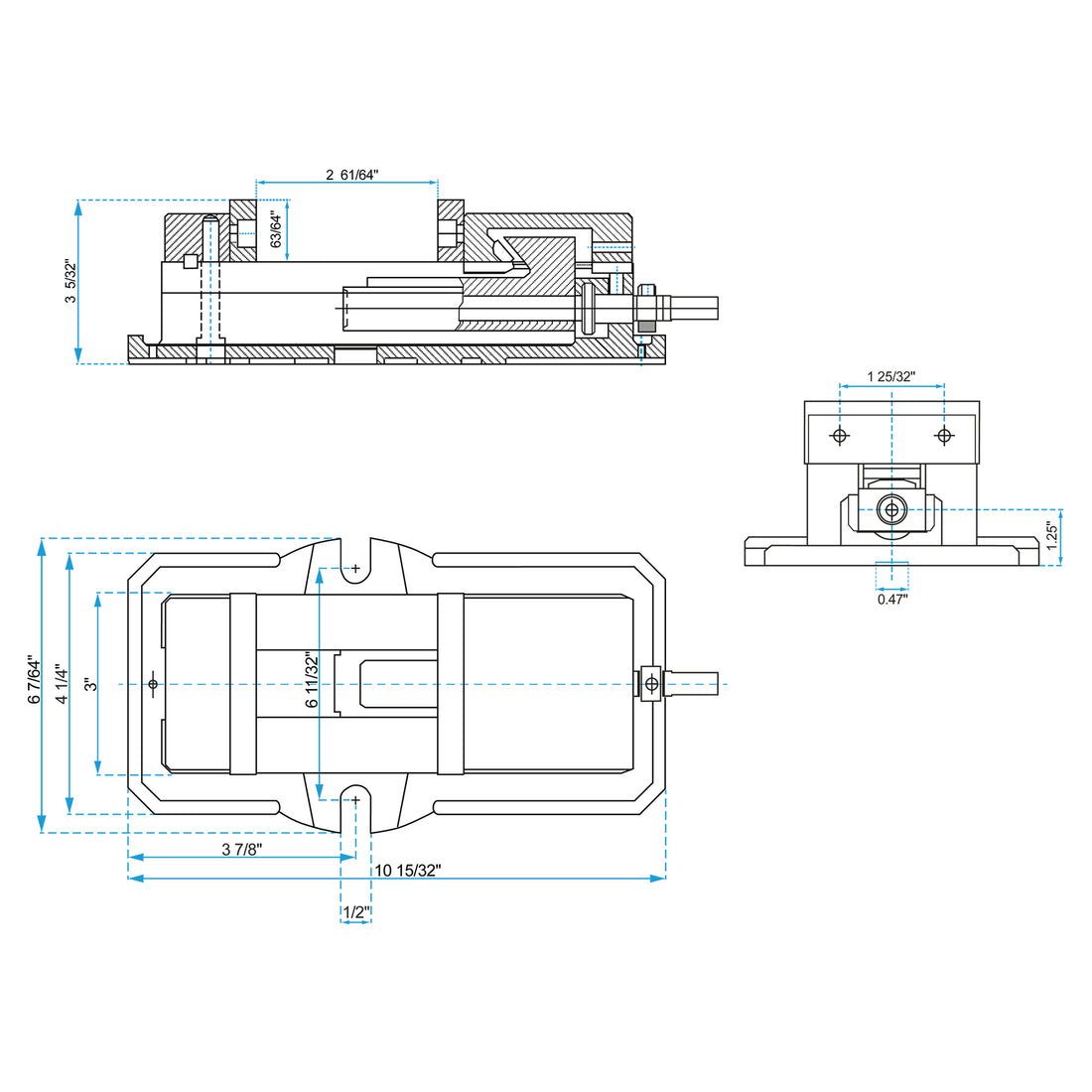

Specifications
Jaw width: 3.150" (80 mm)
Jaw depth: 0.945" (24 mm)
Maximum jaw opening: 2.953" (75 mm)
Swivel base: YES
Weight: 27.5 lbs (12 kg)
Height with base: 4.331" (110 mm)
Height w/o base: 3.150" (80 mm)
Length: 11.614" (295 mm)

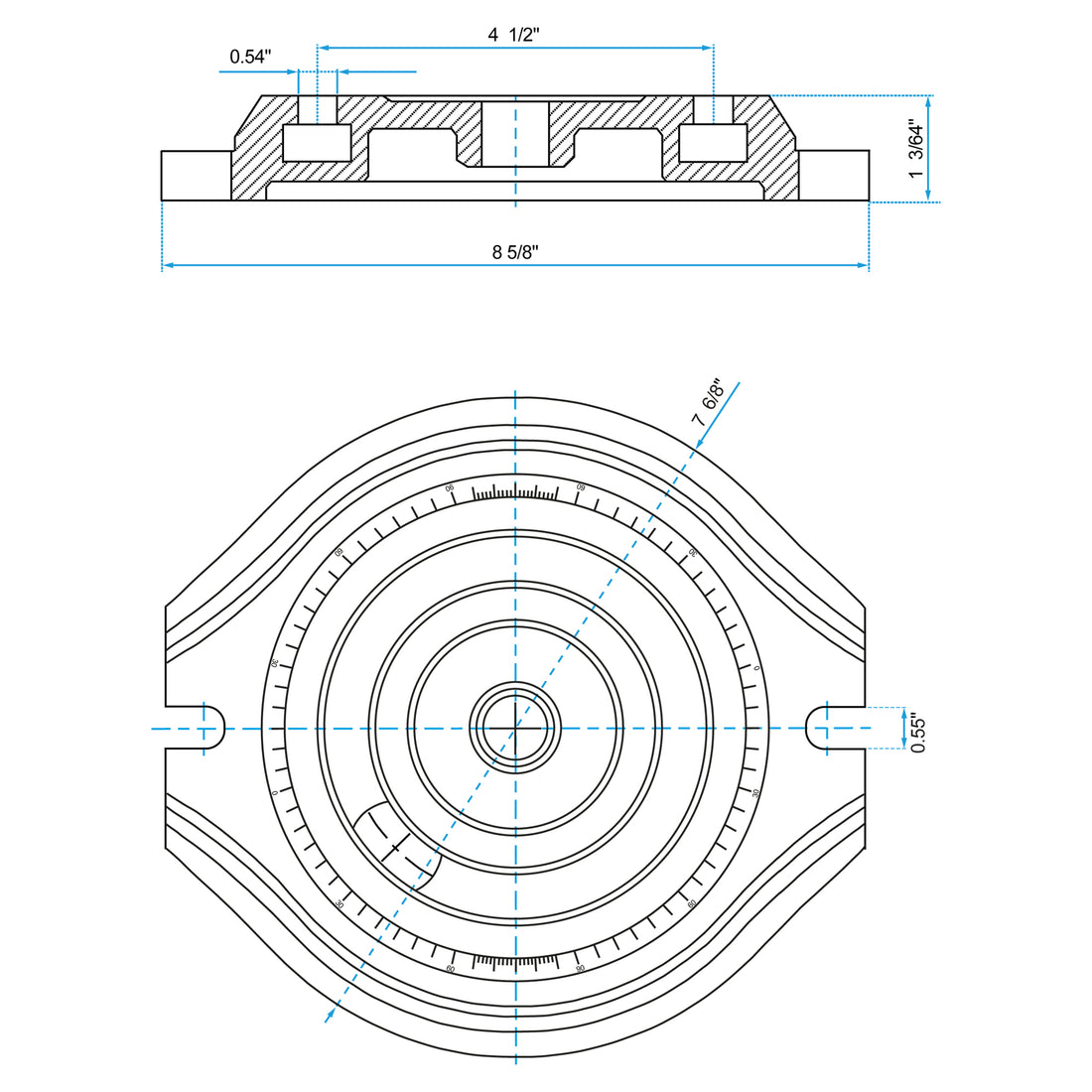

Width with base: 8.661" (220 mm)
Width w/o base: 5.512" (140 mm)
Mounting bolt centers: 7.874" (200 mm)
Mounting bolt centers w/o base: 4.331" (110 mm)
Hold-down mechanism: YES
Ways parallel to bottom of vise within: 0.0003" in 4" (0.008 mm in 100 mm)
Jaws perpendicular to ways within: 0.0004" in 4" (0.010 mm in 100 mm)
