Harlingen Tools

Harlingen machining tools from LittleMachineShop.com

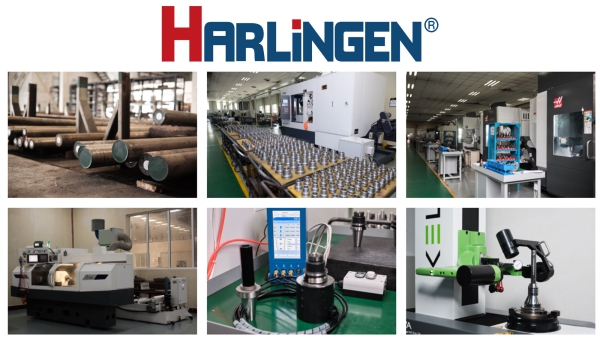

HARLINGEN aspires to supply various metal cutting tools and toolholding parts with reliable quality. Established in Lodi Italy in the early 1980s. It mainly worked for renowned companies in Europe and North America. They now are active in more than 40 countries and regions, supplying directly to major automotive and aircraft manufacturing industry as well as distributing through an array of industrial supply channels. HARLINGEN makes ALL products in its state-of-the-art workshop certified ISO 9001. They carry out every production procedure in-house, with computer-controlled heat treatment, special curing equipment, traditional forging procedures, and the latest CNC machines, quality is guaranteed. HARLINGEN relies on extremely strict quality control and their tooling systems are among the best in the world.

6682 Annular Cutter, 7 Piece Set, Harlingen

Cuts steel and other metals (up to 35 HRC).
6 cutters (9/16, 5/8, 11/16, 13/16, 7/8, 15/16)
High speed steel with a bright finish.
High wear resistance and durable
Weldon shank - 3/4" shank diameter.

Harlingen 7 Piece 9/16" to 15/16" High Speed Steel Annular Cutter Set. An annular cutter is a hollow drill bit with sharp edges that's used to drill large holes in a variety of materials, including on hardened steel, mild steel and stainless steel (up to 35 HRC). Annular cutters can drill larger holes faster and with less force than a standard twist drill bit. They can also produce a higher quality finish than hole saws. As the cutter rotates, it cuts a ring of material from the outside of the hole, leaving a solid core in the center. The cutter then removes the ring, leaving a clean hole with minimal burring. Set includes 6 annular cutters (9/16, 5/8, 11/16, 13/16, 7/8, 15/16) designed to cut to a 1" cutting depth. Features a Weldon shank - 3/4" shank diameter. Also includes 1 center punch and a fitted case.

6678 Boring Bars, Indexable, 95 Deg Diamond Insert, 3 Piece Set, Harlingen

3 piece set, 3/8", 1/2", and 5/8 diameter shanks
Carbon steel shanks with 95 degree inserts
For boring and facing hole bottoms
Suitable for steel, cast iron, and stainless steel
Set comes in fitted aluminum case

Three piece boring bar set with shank sizes of 3/8", 1/2", and 5/8". Each boring bar has a carbide insert. This set allows for both boring and facing the bottom of holes. It is suitable for cutting steel, cast iron and stainless steel. The insert screw is hardened to ensure a solid fit of the carbide insert. The 3/8" diameter bar is 6" long, designation S06M-SCLCR2 The 1/2" diameter bar is 7" long, designation S08Q-SCLCR2 The 5/8" diameter bar is 8" long, designation S10R-SCLCR3 All three boring bars are designated as having an approach angle of 95 degrees (offset shank with a negative 5 degree cutting angle) and utilizing an insert with a 7 degree relief angle. All three bars are Right Hand. Set is packed in an aluminum case.

4940 Lathe Chuck - 3", 3-Jaw, Premium, Harlingen

Self-centering 3-Jaw lathe chuck
3" (80 mm) diameter
Radial runout maximum of ≤ 0.002" (0.05 mm)
High quality components for enhanced wear-resistance
Includes chuck key, inside and outside jaws

Harlingen 3 inch 3-jaw self-centering lathe chuck. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better runout and the material construction of the chuck is better. The runout of these chucks is rated at ≤ 0.002" vs ≤ 0.003" for other chucks in this class. The chuck body is made of wear-resistant cast iron with a higher hardness than similarly made lathe chucks. The cover plate, scroll plate and pinions are all constructed of higher quality steels for added strength and resistance to wear. The jaws are made of 1045 hardened carbon steel and manufactured for precise fit and clamping performance. Each chuck has in individual serial number and inspection report. See the Compatibility tab for machines and other products that work with this product.

6084 Lathe Chuck - 3", 4-Jaw, Independent, Premium, Harlingen

Independent 4-Jaw lathe chuck
3" (80 mm) diameter
Radial runout maximum of ≤ 0.002" (0.05 mm)
High quality components for enhanced wear-resistance
Includes chuck key, inside and outside jaws

Harlingen 3 inch 4-jaw independent lathe chuck. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better runout and the material construction of the chuck is better. The runout of these chucks is rated at ≤ 0.002" vs ≤ 0.003" for other chucks in this class. The chuck body is made of wear-resistant cast iron with a higher hardness than similarly made lathe chucks. The cover plate, scroll plate and pinions are all constructed of higher quality steels for added strength and resistance to wear. The jaws are made of 1045 hardened carbon steel and manufactured for precise fit and clamping performance. Each chuck has in individual serial number and inspection report. See the Compatibility tab for machines and other products that work with this product.

4941 Lathe Chuck - 4", 3-Jaw, Premium, Harlingen

Self-centering 3-Jaw lathe chuck
4" (100 mm) diameter
Radial runout maximum of ≤ 0.002" (0.05 mm)
High quality components for enhanced wear-resistance
Includes chuck key, inside and outside jaws

Harlingen 4 inch 3-jaw self-centering lathe chuck. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better runout and the material construction of the chuck is better. The runout of these chucks is rated at ≤ 0.002" vs ≤ 0.003" for other chucks in this class. The chuck body is made of wear-resistant cast iron with a higher hardness than similarly made lathe chucks. The cover plate, scroll plate and pinions are all constructed of higher quality steels for added strength and resistance to wear. The jaws are made of 1045 hardened carbon steel and manufactured for precise fit and clamping performance. Each chuck has in individual serial number and inspection report. See the Compatibility tab for machines and other products that work with this product.

1941 Lathe Chuck - 4", 3-Jaw, Premium, Harlingen, with Adapter to 3" Spindle

3-jaw self-centering lathe chuck
4" (100 mm) diameter
Includes chuck key, inside and outside jaws and mounting bolts
Includes an adapter to mount on a 3" (80 mm) flange
High quality steel, hardened and ground

4" 3-Jaw self-centering lathe chuck with adapter for the mini lathe. Includes chuck key, inside and outside jaws, and mounting bolts. The chuck can hold work up to 3.15" (80 mm) in diameter and comes with an adapter for the mini lathe so that you can bolt it on in place of a 3" (80 mm) chuck. This 4" 3-jaw lathe chuck has a 0.87" (22 mm) through hole. The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.

6085 Lathe Chuck - 4", 4-Jaw, Independent, Premium, Harlingen

Independent 4-Jaw lathe chuck
4" (100 mm) diameter
High quality components for enhanced wear-resistance
Includes chuck key, inside and outside jaws
Includes 4 M8 Allen head cap screws

Harlingen 4 inch 4-jaw independent lathe chuck. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better runout and the material construction of the chuck is better. The chuck body is made of wear-resistant cast iron with a higher hardness than similarly made lathe chucks. The cover plate, scroll plate and pinions are all constructed of higher quality steels for added strength and resistance to wear. The jaws are made of 1045 hardened carbon steel and manufactured for precise fit and clamping performance. Each chuck has in individual serial number and inspection report. See the Compatibility tab for machines and other products that work with this product.

4942 Lathe Chuck - 5", 3-Jaw, Premium, Harlingen

Self-centering 3-Jaw lathe chuck
5" (125 mm) diameter
Radial runout maximum of ≤ 0.002" (0.05 mm)
High quality components for enhanced wear-resistance
Includes chuck key, inside and outside jaws

Harlingen 5 inch 3-jaw self-centering lathe chuck. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better runout and the material construction of the chuck is better. The runout of these chucks is rated at ≤ 0.002" vs ≤ 0.003" for other chucks in this class. The chuck body is made of wear-resistant cast iron with a higher hardness than similarly made lathe chucks. The cover plate, scroll plate and pinions are all constructed of higher quality steels for added strength and resistance to wear. The jaws are made of 1045 hardened carbon steel and manufactured for precise fit and clamping performance. Each chuck has in individual serial number and inspection report. See the Compatibility tab for machines and other products that work with this product.

2345 Lathe Chuck - 5", 3-Jaw, Premium, Harlingen, with Adapter to 3" Spindle

3-jaw self-centering lathe chuck
5" (125 mm) diameter
Includes chuck key, inside and outside jaws
Includes an adapter to mount on a 3" (80 mm) flange
High-quality steel, hardened and ground

5 inch, 3-Jaw self-centering lathe chuck with adapter mounted for the mini lathe. Includes chuck key, inside and outside jaws. This 5 inch lathe chuck can hold work up to 4.33" (110 mm) in diameter and comes with an adapter for the mini lathe so that you can bolt it on in place of a 3" (80 mm) chuck. The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.

6558 Lathe Chuck - 5", 3-Jaw, Premium, Harlingen, with Adapter to 4" Spindle

3-jaw self-centering lathe chuck
5" (125 mm) diameter
Includes chuck key, inside and outside jaws and mounting bolts
Includes an adapter to mount on a 4" (100 mm) flange
High quality steel, hardened and ground

5 inch, 3-Jaw self-centering lathe chuck with adapter mounted for the mini lathe. Includes chuck key, inside and outside jaws. This 5 inch lathe chuck can hold work up to 4.33" (110 mm) in diameter and comes with an adapter for the HiTorque mini lathe spindle as well as other lathes with a 4" (100mm) spindle flange. The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.

6086 Lathe Chuck - 5", 4-Jaw, Independent, Premium, Harlingen

Independent 4-Jaw lathe chuck
5" (125 mm) diameter
High quality components for enhanced wear-resistance
Includes chuck key, inside and outside jaws

Harlingen 5 inch 4-jaw independent lathe chuck. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better runout and the material construction of the chuck is better. The chuck body is made of wear-resistant cast iron with a higher hardness than similarly made lathe chucks. The cover plate, scroll plate and pinions are all constructed of higher quality steels for added strength and resistance to wear. The jaws are made of 1045 hardened carbon steel and manufactured for precise fit and clamping performance. Each chuck has in individual serial number and inspection report. This is a plain back chuck and requires a backplate adapter to mount it. If purchasing for HiTorque Bench Lathe, please add 6806 Chuck Adapter See the Compatibility tab for machines and other products that work with this product.

6546 Lathe Chuck - 6", 3-Jaw, Premium, Harlingen

Self-centering 3-Jaw lathe chuck
6" (160 mm) diameter
Radial runout maximum of ≤ 0.002" (0.05 mm)
High quality components for enhanced wear-resistance
Includes chuck key, inside and outside jaws,& 1 set of mounting screws

Harlingen 6" 3-Jaw self-centering Lathe Chuck Plain Back. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better performance characteristics and the material construction of the chuck is better. The runout of these chucks is rated at ≤ 0.002" vs ≤ 0.003" for other chucks in this class. The body is entirely made of wear-resistant semi-steel No.40/No.45 (ASTM) providing a higher hardness at HB190-220 compared to other brands using HT250 cast iron with hardness of HB180-220. High quality No.35 (ASTM) is used to achieve higher accuracy, strength and extended tool life. Competitors use HT150 cast iron or engineering plastics as a substitute. The scroll is made of hardened and precision machined 5140 (ASTM) to enhance wear resistance and strength. Scroll face threads are processed with high accuracy CNC machining which improves self-centering performance. Jaws are made of hardened carbon 1045 (ASTM) steel. The jaws are pressed individually to ensure precise fit, powerful clamping performance and each jaw is interchangeable while maintaining accuracy. Specific machines and fixtures have been adapted to process H-Groove simultaneously so the clamping accuracy is guaranteed. Pinions are made of 20CrMnTi with a quenching procedure to enhance wear-resistance and strength. Each chuck body has its own ID and is 100% inspected with trackable data. Each chuck has in individual serial number and inspection report. 2 sets of jaws, lathe chuck wrench & 1 set of mounting screws included. This is a plain back chuck and requires a backplate adapter to mount it. See the Compatibility tab for products that work with this product.

6547 Lathe Chuck - 6", 4-Jaw, Independent, Premium, Harlingen

Independent 4-Jaw lathe chuck
6" (160 mm) diameter
Radial runout maximum of ≤ 0.002" (0.05 mm)
High quality components for enhanced wear-resistance
Includes chuck key, reversible jaws and mounting screws

Harlingen 6" 3-Jaw self-centering Lathe Chuck Plain Back. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better performance characteristics and the material construction of the chuck is better. The runout of these chucks is rated at ≤ 0.002" vs ≤ 0.003" for other chucks in this class. The body is entirely made of wear-resistant semi-steel No.40/No.45 (ASTM) providing a higher hardness at HB190-220 compared to other brands using HT250 cast iron with hardness of HB180-220. High quality No.35 (ASTM) is used to achieve higher accuracy, strength and extended tool life. Competitors use HT150 cast iron or engineering plastics as a substitute. The scroll is made of hardened and precision machined 5140 (ASTM) to enhance wear resistance and strength. Scroll face threads are processed with high accuracy CNC machining which improves self-centering performance. Jaw are made of hardened carbon 1045 (ASTM) steel. The jaws are pressed individually to ensure precise fit, powerful clamping performance and each jaw is interchangeable while maintaining accuracy. Specific machines and fixtures have been adapted to process H-Groove simultaneously so the clamping accuracy is guaranteed. Pinions are made of 20CrMnTi with a quenching procedure to enhance wear-resistance and strength. Each chuck body has its own ID and is 100% inspected with trackable data. Each chuck has in individual serial number and inspection report. 2 sets of jaws, lathe chuck wrench & 1 set of mounting screws included. Please check specifications to ensure proper mounting to spindle or proper chuck adapter

6561 Live Center, 2MT Ultra Precision High Speed, Harlingen

High concentricity and stability thanks to a high accuracy bearing system.
60 degree included angle
Hardened body for extra strength and rigidity.
Maximum concentricity deviation for ultra precision and lifetime lubrication
Standard 2MT shank

This is an extremely high end 2MT live center with ultra high concentricity and stability. Point is made of high quality alloy steel that has been heat treated to hardness HRC62

6679 Rotary Burr Set, Carbide, 5 Piece, Harlingen

Five different shapes
High performance carbide (K25)
6mm Shank
Double cut

Harlingen 5 piece double cut carbide rotary burr set – 6mm shank. Designed for shaping, grinding, and deburring various metals including cast iron, steel, copper, brass, and other ferrous metals. 5 different shapes and sizes of burrs (SA1225, SC1225, SF1225, SG1225, SD1210) are provided to achieve precise contours and finishes. Different burr shapes (cylinder, ball nose, cone, pointed, etc.) are included in a set to tackle various tasks like smoothing edges, creating rounded corners, carving intricate details, and reaching tight spaces. For each shape, the nomenclature is as follows: SA1225 S = Shape, A= Cylindrical Plain End, 12 = Diameter of Cutting Head, 25 = Length of Cutting Head Manufactured from high performance carbide (K25) which is very hard and durable. Advanced manufacturing insures precise flute uniformity and vibration free cutting action. All bits are double cut making them ideal for harder materials such as steel, stainless steel, titanium, etc. This also allows for rapid stock removal and create a smoother finish than single cut.

6683 Turning Tools, 1/2" Indexable, 5 Piece Set, Harlingen

5 piece turning tool set
1/2" square shank
Includes 5 TCMT carbide inserts with TiN coating
Set suitable for external turning and end turning
Set comes in aluminum case

Five piece indexable turning tool set with a 1/2" square shank. The set includes one each of the following turning tool holders: STACR, STDCR, STNCR, STECN, STCCR. Each tool is equipped with a TCMT carbide insert with TiN coating for semi-finishing/roughing of steel. The set if suitable for various external turning and end turning operations. A fitted aluminum case is provided to securely hold the inserts.

6677 Turning Tools, 1/2" Indexable, 7 Piece Set, Harlingen

7 piece turning tool set
1/2" square shank
Includes 7 carbide inserts with TiN coating
For turning, grooving, and threading
Set comes in aluminum case

Seven piece indexable turning tool set with a 1/2" square shank. The set includes one each of the following turning tool holders: SCLCR, CLCL, SDJCR, SDNCN, SWGCR. In addition, the set has one MGEHR grooving holder and one SER threading holder. Each tool is equipped with a carbide insert with TiN coating for semi-finishing/roughing of steel. The set if suitable for various turning, grooving, and threading operations. A fitted aluminum case is provided to securely hold the inserts.

6671 Turning Tools, 1/4" Indexable, 5 Piece Set, Harlingen

5 piece turning tool set
1/4" shank by 2" OAL
Includes 5 TCMT carbide inserts with TiN coating
Set suitable for external turning and end turning
Set comes in aluminum case

Five piece indexable turning tool set with a 1/4" shank. The set includes one each of the following turning tool holders: STACR, STDCR, STNCR, STECN, STCCR. Each tool is equipped with a TCMT carbide insert with TiN coating for semi-finishing/roughing of steel. Shank is 1/4"h x 5/16"w x 2" long The set if suitable for various external turning and end turning operations. A fitted aluminum case is provided to securely hold the inserts.

6674 Turning Tools, 1/4" Indexable, 7 Piece Set, Harlingen

7 piece turning tool set
1/4" shank
Includes 7 carbide inserts with TiN coating
For turning, grooving, and threading
Set comes in aluminum case

Seven piece indexable turning tool set with a 1/4" shank. The set includes one each of the following turning tool holders: SCLCR, CLCL, SDJCR, SDNCN, SWGCR. In addition, the set has one MGEHR grooving holder and one SER threading holder. Each tool is equipped with a carbide insert with TiN coating for semi-finishing/roughing of steel. Shank is 1/4"h x 3/8"w x 2.5" long The set if suitable for various turning, grooving, and threading operations. A fitted aluminum case is provided to securely hold the inserts.

6673 Turning Tools, 3/8" Indexable, 5 Piece Set, Harlingen

5 piece turning tool set
3/8" square shank
Includes 5 TCMT carbide inserts with TiN coating
Set suitable for external turning and end turning
Set comes in aluminum case

Five piece indexable turning tool set with a 3/8" square shank. The set includes one each of the following turning tool holders: STACR, STDCR, STNCR, STECN, STCCR. Each tool is equipped with a TCMT carbide insert with TiN coating for semi-finishing/roughing of steel. The set if suitable for various external turning and end turning operations. A fitted aluminum case is provided to securely hold the inserts.

6676 Turning Tools, 3/8" Indexable, 7 Piece Set, Harlingen

7 piece turning tool set
3/8" square shank
Includes 7 carbide inserts with TiN coating
For turning, grooving, and threading
Set comes in aluminum case

Seven piece indexable turning tool set with a 3/8" square shank. The set includes one each of the following turning tool holders: SCLCR, CLCL, SDJCR, SDNCN, SWGCR. In addition, the set has one MGEHR grooving holder and one SER threading holder. Each tool is equipped with a carbide insert with TiN coating for semi-finishing/roughing of steel. The set if suitable for various turning, grooving, and threading operations. A fitted aluminum case is provided to securely hold the inserts.

6672 Turning Tools, 5/16" Indexable, 5 Piece Set, Harlingen

5 piece turning tool set
5/16" square shank
Includes 5 TCMT carbide inserts with TiN coating
Set suitable for external turning and end turning
Set comes in aluminum case

Five piece indexable turning tool set with a 5/16" square shank. The set includes one each of the following turning tool holders: STACR, STDCR, STNCR, STECN, STCCR. Each tool is equipped with a TCMT carbide insert with TiN coating for semi-finishing/roughing of steel. The set if suitable for various external turning and end turning operations. A fitted aluminum case is provided to securely hold the inserts.

6675 Turning Tools, 5/16" Indexable, 7 Piece Set, Harlingen

7 piece turning tool set
5/16" square shank
Includes 7 carbide inserts with TiN coating
For turning, grooving, and threading
Set comes in aluminum case

Seven piece indexable turning tool set with a 5/16" square shank. The set includes one each of the following turning tool holders: SCLCR, CLCL, SDJCR, SDNCN, SWGCR. In addition, the set has one MGEHR grooving holder and one SER threading holder. Each tool is equipped with a carbide insert with TiN coating for semi-finishing/roughing of steel. The set if suitable for various turning, grooving, and threading operations. A fitted aluminum case is provided to securely hold the inserts.
