Clamping Kit, 7/16" T-Slot in Organizer Case

Clamping Kit, 7/16" T-Slot in Organizer Case
  • Stud thread: 3/8"-16
  • T-slot width at top: 7/16" (12 mm)
  • 58 Pieces
  • All parts are heat treated
  • Organizer case included
Part Number: 1426
Weight: 14.0 lb
$59.95 On Sale

Regularly $69.95

In stock
Quantity:

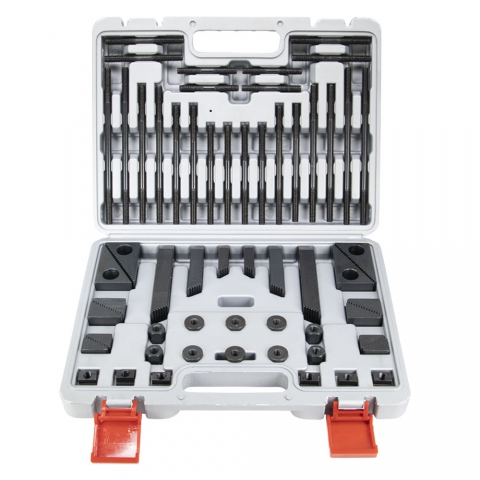

58-piece clamping kit 3/8"-16, 7/16" T-Slot in organizer case.

This machinist clamping kit fits the 12 mm T-slots on the mini mill.

The t-slot clamp kit includes 24 3/8"-16 studs, 12 step blocks in pairs, 6 T-slot nuts, 6 flange nuts, 4 coupling nuts, and 6 step clamps.

Comes in an organizer case.

The stated dimension of the clamping kit is the width at the top of the T-slot.

Chris Chris' Tips
Measure the width at the top of the T-slot as shown in the photo below. This is the dimension given for T-slot nuts and clamping kits. For example, if you measure 0.468 at the top of the T-slot, you should get a 7/16” (0.438”) T-slot nut or clamping kit.


Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Part Number

Slot

B

Thread A

C

D

E

Length

3097, 2718*

1/4"

0.24"

M5

0.23"

0.10"

0.38"

0.38"

5592, 5491*

3/8"

0.37"

5/16" - 18

0.50"

0.19"

0.63"

0.88"

1269, 1144*, 1426*, 5910*, 5975*

7/16"

0.43"

3/8" - 16

0.50"

0.27"

0.69"

0.88"

2021, 1268*

1/2"

0.49"

3/8" - 16

0.50"

0.28"

0.88"

0.88"

5971, 3667*, 4833*

5/8"

0.61"

1/2" - 13

0.63"

0.34"

1.00"

1.13"

2059, 1943*, 2718*

6 mm

5.7 mm

M5

8.0 mm

4 mm

10 mm

10 mm

2058, 1427*, 1813*, 1972*, 2039*, 3442*

8 mm

7.7 mm

M6

10 mm

5 mm

13 mm

13 mm

2991

10 mm

9.7 mm

M8

12 mm

6 mm

15 mm

15 mm

1418

12 mm

11.7 mm

M8

12 mm

7 mm

18 mm

18 mm

*Indicates t-slot nuts included as part of a clamping kit.


Nominal Sizes for 7/16" T-Slot Nut

Suitable for 12 mm T-Slot tables on common mini mills.

7/16 inch t slot nut
