Clamping Kit, 8 mm T-Slot, 12-Piece

Clamping Kit, 8 mm T-Slot, 12-Piece
  • Two T-slot nuts for 8 mm T-slots
  • Two studs
  • Two flange nuts
  • Two step clamps
  • Two pair step blocks
Part Number: 1813
Weight: 2.05 lb

Price: $25.95

In stock
Quantity:
This set of T-slot nuts and clamping bars fits our 4" precision rotary table (PN 1810). It also fits several micro mill models as a milling machine clamp set. (See the Compatibility tab for machines that work with this product.)

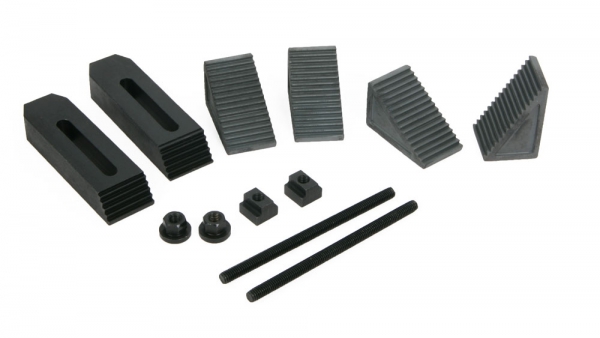

The T-slot clamping kit includes 2 studs, 2 T-slot nuts, 2 flange nuts, 2 step clamps, and 4 step blocks in pairs.

The stated dimension of the clamping kit is the width at the top of the T-slot.

Chris Chris' Tips
Measure the width at the top of the T-slot as shown in the photo below. This is the dimension given for T-slot nuts and clamping kits. For example, if you measure 0.468 at the top of the T-slot, you should get a 7/16” (0.438”) T-slot nut or clamping kit.


Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Part Number

Slot

B

Thread A

C

D

E

Length

3097, 2718*

1/4"

0.24"

M5

0.23"

0.10"

0.38"

0.38"

5592, 5491*

3/8"

0.37"

5/16" - 18

0.50"

0.19"

0.63"

0.88"

1269, 1144*, 1426*, 5910*, 5975*

7/16"

0.43"

3/8" - 16

0.50"

0.27"

0.69"

0.88"

2021, 1268*

1/2"

0.49"

3/8" - 16

0.50"

0.28"

0.88"

0.88"

5971, 3667*, 4833*

5/8"

0.61"

1/2" - 13

0.63"

0.34"

1.00"

1.13"

2059, 1943*, 2718*

6 mm

5.7 mm

M5

8.0 mm

4 mm

10 mm

10 mm

2058, 1427*, 1813*, 1972*, 2039*, 3442*

8 mm

7.7 mm

M6

10 mm

5 mm

13 mm

13 mm

2991

10 mm

9.7 mm

M8

12 mm

6 mm

15 mm

15 mm

1418

12 mm

11.7 mm

M8

12 mm

7 mm

18 mm

18 mm

*Indicates t-slot nuts included as part of a clamping kit.


Nominal Sizes for 8 mm T-Slot Nut

8 mm t slot nut

Compatibility

This product works with these LittleMachineShop.com products:

This product works with mills with a 0.315 to 0.38 inch T-slot width including:

  •   Prazi BF400 Mill
  •   Prazi BF450 Mill
  •   Clarke CMD10 Metalworker Micro Mill
  •   Harbor Freight 47158 Central Machinery Micro Mill
  •   SIEG X1 Micro Mill
  •   SIEG SX1 Micro Mill
  •   LittleMachineShop.com 4660 HiTorque Micro Mill
  •   LittleMachineShop.com 4700 HiTorque Micro Mill
  •   SIEG SX1P Micro Mill
  •   Grizzly G0758 Mill/Drill
  •   BusyBee CX705 Craftex Lathe Mill Combo
  •   Grizzly G0516 Lathe Mill Combo
  •   SIEG M6 Multi-purpose Machine
