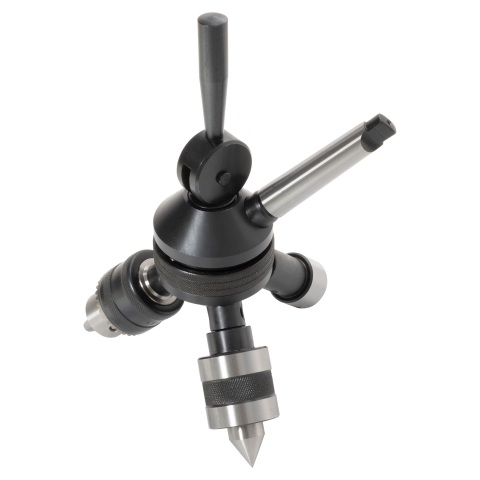

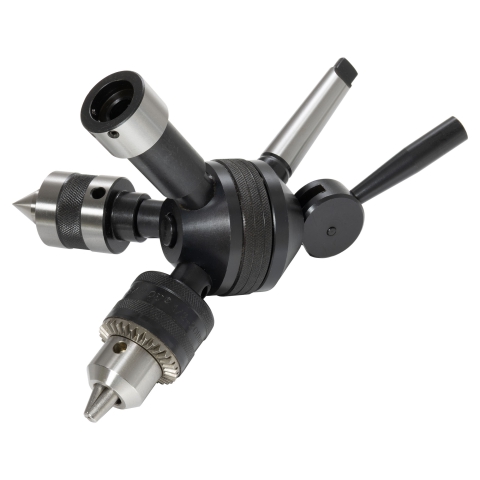

Turret Tool Holder, 2MT Tailstock, 3 Heads
- Three head turret tool holder
- Mounts in 2MT tailstock
- Equipped with 3MT arbor sleeve

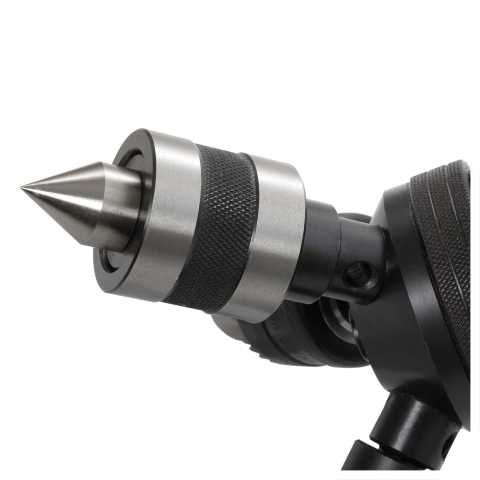

- Heads include 1 drill chuck, 1 live center, and 1 die holder
- Quick locking lever for rapid tool changing
Weight: 6.70 lb
Price: $139.95
http://lmscnc.com/1877

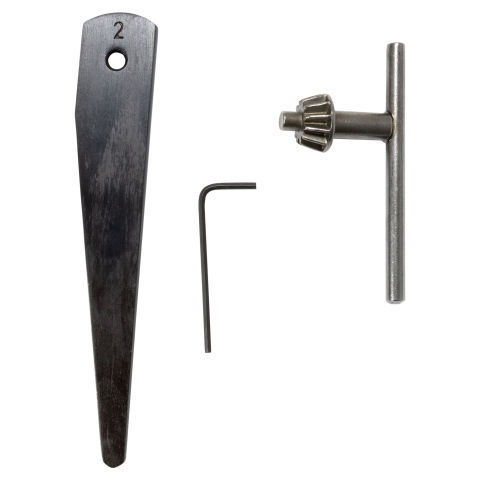

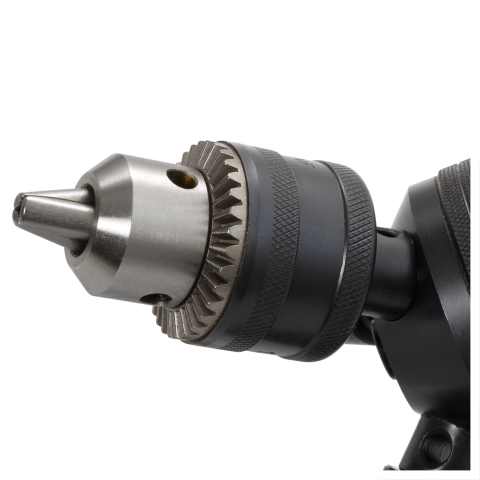

Each head is mounted to the turret by a threaded post 1/2" x 20TPI. The drill chuck is rated for 1.5mm - 13mm (0.06" - 0.51"). The chuck comes with a chuck key.

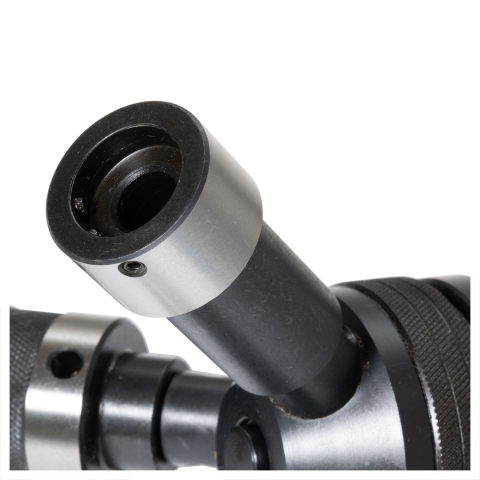

The die holder supports standard 13/16" diameter round dies and has three tightening screws. The die holder head has a center bore that is 40mm in depth (approx. 1.5") for cutting external threads up to that length. An Allen wrench is included for locking the die.
The turret has a slight ratchet to ensure that the tool is positioned correctly in relation to the quill.

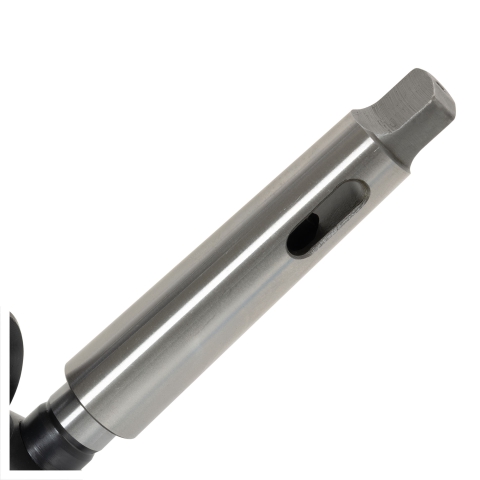

In addition, the holder comes with a 3MT sleeve that slides over the 2MT arbor for use on machines with a 3MT tailstock. This sleeve is accompanied by a quick removal wedge.
A tailstock turret tool holder us useful for a wide range of tasks. It enables quick seamless changing of tools without refitting items into the tailstock. This minimizes downtime thereby enhancing productivity.
Compatibility
This product works with lathes with a 2 Morse taper tailstock taper and a short 2 Morse taper tailstock taper including:
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
- Prazi SD400 7x16 Lathe
- MX-8x14 Preenex (and others) 8x14 Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- Emco Compact 8 8x17 Lathe
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- SIEG C4 8.5x16 Bench Lathe
- SIEG SC4 8.5x16 Bench Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- BD-920N Jet 9x20 Lathe
- Grizzly G4000 9x19 Bench Lathe
- Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
- LittleMachineShop.com 7600 HiTorque 9x20 Bench Lathe
- LittleMachineShop.com 7650 HiTorque 9x20 Bench Lathe
- SIEG C6 10x21 Lathe
- Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
- Grizzly G0516 10x21 Lathe Mill Combo
- Prazi SD500 10x20 Lathe
- SIEG M6 10x21 Lathe Mill Combo
- SIEG C8 11x24 Lathe
