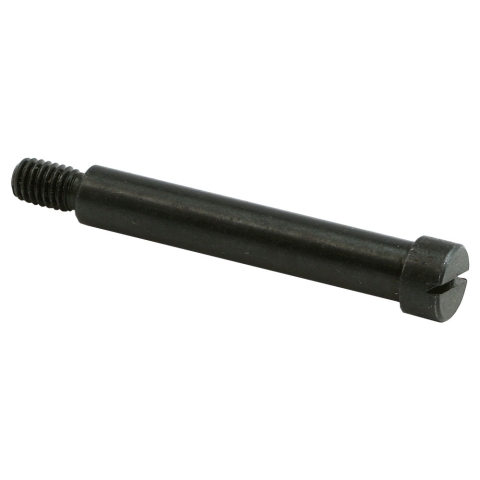

Bolt, Handwheel 6 mm

Part Number: 2145
Weight: 0.05 lb

Price: $3.14

Share this page:
https://littlemachineshop.com/2145

Bolt, handle mounting. M6 threading with a 7.75 mm shaft. The overall length is 55 mm. The bolt has a slot drive.

This bolt is used on numerous lathe and micro mill handwheels and the tailstock hand wheel of the SC4 bench lathe including the HiTorque bench lathe.

See Used On tab for reference to machines using this part and the corresponding drawing number.

In your instruction manual, this part appears on the parts list as:

Item No	Models
1-22	LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20
1-25	LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20
2-17	LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20
2-25	LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20
24	LittleMachineShop.com 4660 HiTorque Micro Mill LittleMachineShop.com 4700 HiTorque Micro Mill
338	LittleMachineShop.com 3536 HiTorque Bench Lathe - 8.5x16 LittleMachineShop.com 3540 HiTorque Bench Lathe - 8.5x20 Various SC4-US SIEG Bench Lathe Travers Tools OT218410 OTMT Bench Lathe - 8.5x16 LittleMachineShop.com 7500 HiTorque Bench Lathe - 8.5x20
5-31	LittleMachineShop.com 7600 HiTorque Bench Lathe - 9x20 LittleMachineShop.com 7650 HiTorque Bench Lathe - 9x20
98	Harbor Freight 47158 Central Machinery Micro Mill Clarke CMD10 Metalworker Micro Mill Various X1-US SIEG Micro Mill
C08	LittleMachineShop.com 5550 HiTorque Bench Mill Various SX2.7L-US SIEG Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill LittleMachineShop.com 6570 HiTorque Bench Mill

Click your model to see the complete parts list.
