Insert, TPG-322 Carbide

Insert, TPG-322 Carbide
  • Uncoated carbide
  • 60° triangle, 11° relief
  • No hole, no chip breaker
  • 0.0313" (1/32") corner radius
  • ANSI: TPG322, ISO: TPGN160308
Part Number: 2277
Weight: 0.04 lb

Price: $4.95

In stock
TPG-322 carbide insert is a 60° triangle with a 11° relief. There is no chip breaker or screw hole. It has an inscribed circle (IC) of 0.375" (3/8"), a thickness of 0.125" (1/8"), and a corner (nose) radius of 0.0313" (1/32").

The insert is designated TPG322 (ANSI) or TPGN160308 (ISO). For a list of compatible products, see the Compatibility tab.

Inserts are sold individually—no need to buy a pack of 10 inserts.

Chris Chris' Tips
Insert TPG-322
ISO TPGN160308

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

Insert TPG-322
ISO TPGN160308

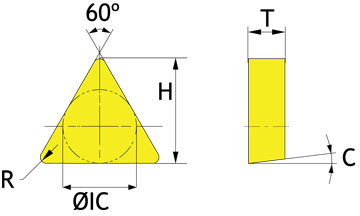

insert TPG-322
Inscribed Circle  ∅ IC 3/8"
Corner Radius R 1/32"
Clearance Angle C 11°
Thickness T 1/8"
Height H 9/16"
Hole / Chip Breaker ∅D none / none


This product works with these products:
