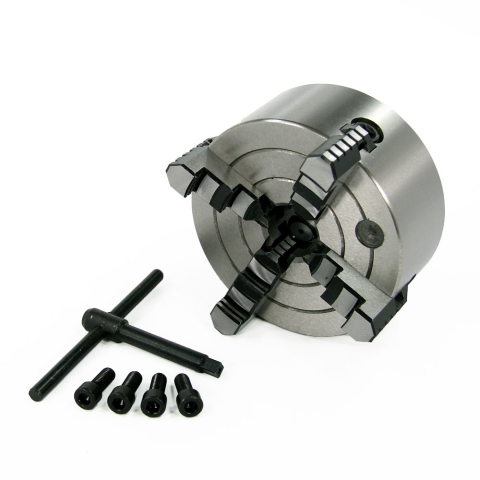

Lathe Chuck - 5", 4-Jaw, Independent

Part Number: 2338
Weight: 11.3 lb

Price: $159.95

Share this page:
http://lmscnc.com/2338

5 inch, 4-Jaw independent lathe chuck.

Each jaw is independently adjustable and reversible.

The through bore of this chuck is 30 mm (1.18").

The chuck can hold work up to 125 mm (4.92") in diameter.

This is a plain back chuck and requires a backplate adapter to mount it. If purchasing for HiTorque Bench Lathe, please add 6806 Chuck Adapter

Chris' Tips
Some people want a chuck that can hold larger diameters. 4" chucks work well on the mini lathe, but it is possible to use a 5" chuck on the mini lathe.

Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.

Here is a chart that provides lathe chuck capacities and mounting dimensions.

Specifications
Rated Capacity, Inside Jaws	0.28" - 2.24" (7.0 mm - 57.0 mm)
Rated Capacity, Outside Jaws	1.89" - 4.92" (48.0 mm - 125.0 mm)
Diameter, Overall	4.92" (125.0 mm)
Registration Recess Diameter	3.74" (95.0 mm)
Registration Recess Depth	0.18" (4.5 mm)
Bolt Circle Diameter	4.25" (108.0 mm)
Center Hole Diameter	1.18" (30.0 mm)
Height	2.20" (56.0 mm)
Jaw Height Above Face	0.83" (21.0 mm)
Height with Jaws	2.64" (67.0 mm)
Number and Size of Bolts	4 M8
Chuck Key	0.274" (6.95 mm)
Chuck Designation	K72-125
