Vise Mounting Kit, 7/16" T-Slot

Vise Mounting Kit, 7/16" T-Slot
  • Contains the items needed to mount a milling vise on a mini mill
  • Fits 7/16" (12 mm) T-slots
  • All parts are hardened for long life

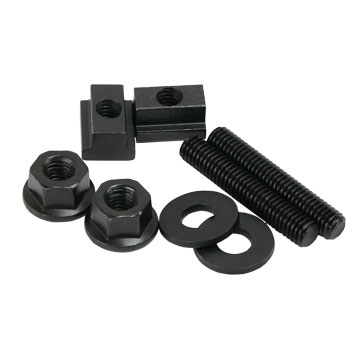

  • Includes 2 each studs, T-slot nuts, flange nuts, and hardened washers
Part Number: 3125
Weight: 0.34 lb

Price: $11.95

In stock
Quantity:
The studs in this vise mounting kit are 3/8"-16 x 2".

Note that you have to take the swivel base off the vise to use this kit.

The stated dimension of the clamping kit is the width at the top of the T-slot.

Chris Chris' Tips
Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Part Number

Slot

B

Thread A

C

D

E

Length

3097, 2718*

1/4"

0.24"

M5

0.23"

0.10"

0.38"

0.38"

5592, 5491*

3/8"

0.37"

5/16" - 18

0.50"

0.19"

0.63"

0.88"

1269, 1144*, 1426*, 5910*, 5975*

7/16"

0.43"

3/8" - 16

0.50"

0.27"

0.69"

0.88"

2021, 1268*

1/2"

0.49"

3/8" - 16

0.50"

0.28"

0.88"

0.88"

5971, 3667*, 4833*

5/8"

0.61"

1/2" - 13

0.63"

0.34"

1.00"

1.13"

2059, 1943*, 2718*

6 mm

5.7 mm

M5

8.0 mm

4 mm

10 mm

10 mm

2058, 1427*, 1813*, 1972*, 2039*, 3442*

8 mm

7.7 mm

M6

10 mm

5 mm

13 mm

13 mm

2991

10 mm

9.7 mm

M8

12 mm

6 mm

15 mm

15 mm

1418

12 mm

11.7 mm

M8

12 mm

7 mm

18 mm

18 mm

*Indicates t-slot nuts included as part of a clamping kit.


Nominal Sizes for 7/16" T-Slot Nut

Suitable for 12 mm T-Slot tables on common mini mills.

7/16 inch t slot nut
