Gear, 2-Speed Spindle, Metal

Gear, 2-Speed Spindle, Metal
  • Metal Upgrade to Original Plastic Gear
  • 21 Teeth / 29 Teeth
  • Bore 30 mm
  • Keyway 5 mm
  • Gear Width 8 mm / 10 mm
Part Number: 3453
Weight: 0.73 lb

Price: $49.95

In stock
Quantity:

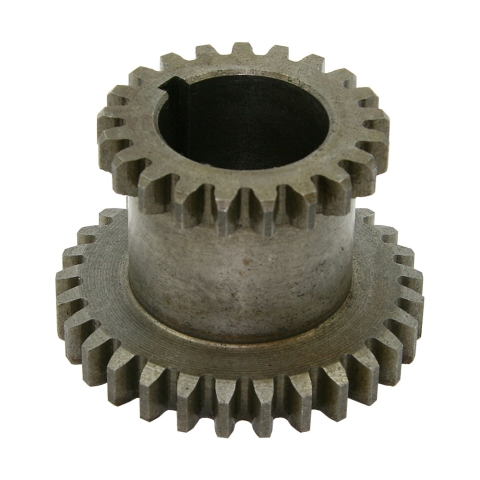

Steel transmission gear, 2-speed milling spindle.

This metal transmission gear goes on the spindle of the mini lathe and SIEG X2 mini mills with a 3MT spindle.

This is the larger of the two transmission gears. It has 21 Teeth on one end and 29 teeth on the other.

Compatibility

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

  •   Enco 110-0803 Enco 7x10 Mini Lathe
  •   Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
  •   Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
  •   MSC 0192857 Enco 7x10 Mini Lathe
  •   Bolton CQ9318 7x12 Mini Lathe
  •   Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  •   Cummins (Tools Now) 5278 7x12 Mini Lathe
  •   Eastwood 32497 7x12 Mini Lathe
  •   Grizzly G8688 7x12 Mini Metal Lathe
  •   Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  •   Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  •   LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  •   LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  •   SIEG C2 7x12 Mini Lathe
  •   Tormach 30689 7x12 Duality Lathe
  •   Travers Tools OT222300 OTMT 7x12 Mini Lathe
  •   Warco 3005 7x12 Mini Lathe (Imperial)
  •   Warco 3004 7x12 Mini Lathe (Metric)
  •   WEN 3455 WEN 7x12 Mini Lathe
  •   Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  •   Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

  •   Bolton XJ-9510 Mill/Drill
  •   Clarke CMD300 Milling Drilling Machine
  •   Grizzly G8689 Mini Milling Machine
  •   Hare & Forbes HM-10 Mill/Drill
  •   Princess Auto 8507667 Powerfist Mini Mill
  •   SIEG X2-MT3 Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
