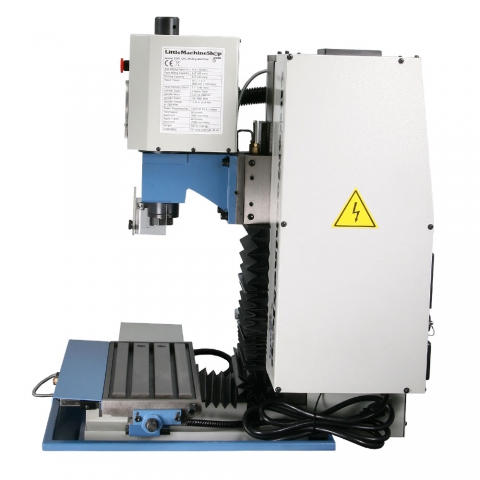

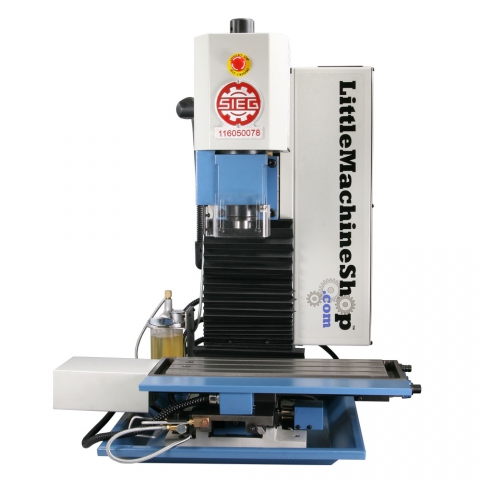

Milling Machine CNC 3501 (Discontinued)
- Complete factory-built CNC milling machine
- 2/3 Horsepower spindle motor drives 2 Morse taper spindle
- Electronics are built in to the machine
- Fourth axis driver included at no extra charge
- Includes Mach 3 demo software
The Model 3501 now includes a one-shot lubrication system and an improved mill table that facilitates the use of flood coolant.
Up until now, hobby CNC has required that you make or buy a conversion of a manual milling machine. You had to integrate the mill, ball screws, stepper motors, drivers, power supplies, and breakout boards. Most people don't even know what those things are, much less how to integrate them into a working CNC machine.
The LittleMachineShop.com model 3501 is the perfect mill for the bench top machinist who wants to create parts and not just build a CNC machine. The power supplies and controllers are built into the mill. No extra cabinets, cables, or connectors are required. The model 3501 CNC milling machine even includes a 4th axis driver so you can add a 4th axis rotary table by simply plugging it in.
With powerful NEMA 23 hybrid stepper motors connected by zero backlash jaw couplings to precision-ground ball screws, the model 3501 can achieve positioning accuracy to 0.0005". Not many hobby-grade machines can make a claim like that. It will machine at up to 20 inches per minute and rapid traverse at up to 80 inches per minute.

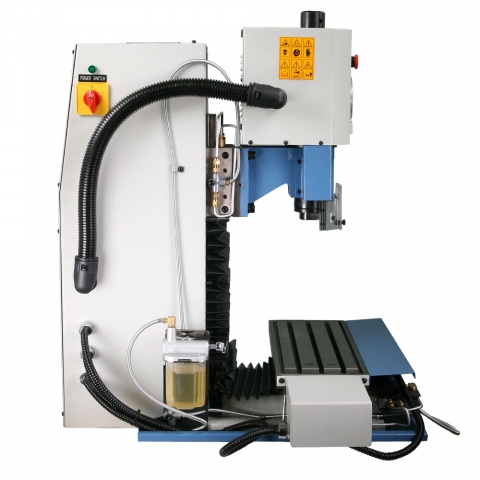

A 2/3 horsepower closed loop brushless DC spindle motor and synchronized belt drive takes the spindle from 100 to 7000 rpm under full CNC control. A one-shot oiler with flexible shielded lube distribution tubing takes care of daily lubrication with a single press of a lever.
With a work envelope of 10.2" (X-axis) x 4.3" (Y-axis) x 7.1" (Z-axis) the model 3501 has large capabilities in a small machine. And at 190 pounds, you know it is not a toy. The mill table is 15" x 5.38", giving you plenty of room to mount your work and fixtures.

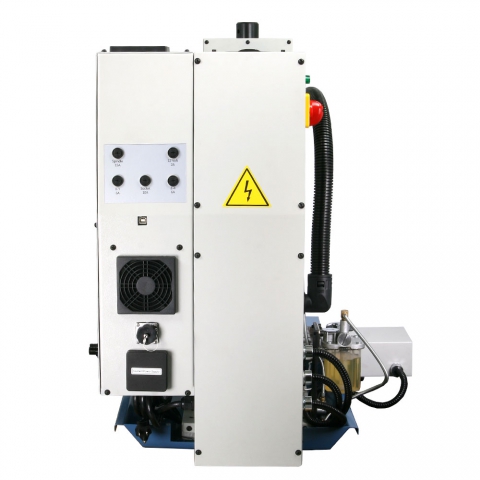

A software controlled receptacle on the back of the machine provides CNC control of an optional mist or flood coolant system.
And we haven’t forgotten your safety. The model 3501 carries the CE marking, the European counterpart to UL listing. A safety E-stop button right on the front and the interlocked spindle shield shut down the mill instantly.
This is the machine only; a computer and tooling must be purchased separately.
The LittleMachineShop.com model 3501 CNC Milling Machine is a version of the SIEG KX1.
*NOTE* We ship machines only to the US and Canada.
- 10.2" × 4.3" × 7.1" work envelope
- Class 5 precision hardened and ground ball screws
- Direct drive NEMA 23 hybrid stepper motors
- Zero backlash jaw couplings
- Three stepper drivers for X, Y, and Z axes
- Extra stepper driver for 4th axis pre-wired with external socket
- Variable spindle speed under full CNC control
- Synchronous belt spindle drive (no gears)
- Proximity limit switches and homing on all three axes
- USB interface board optically isolates the machine from the computer
- Fully covered ways and ball screws
- Emergency e-stop switch and chuck guard switch
- CE marking (comparable to UL listing)
- CNC controlled coolant pump receptacle
- Power supply and control system are integral to the machine.
- One shot oiler with flexible shielded lube distribution tubing
- Industrial grade ABEC 5 angular contact spindle bearings
- Dovetail slides with adjustable gibs
|End Milling Capacity||0.4" (10 mm)|
|Face Milling Capacity||0.8" (20 mm)|
|Drilling Capacity||0.4" (10 mm)|
|Table Size||15.1" x 5.4" (384 mm x 137 mm)|
|T-Slots||3 slots 0.31" (8.0 mm) wide|
|X-Axis Travel||10.2" (260 mm)|
|Y-Axis Travel||4.3" (110 mm)|
|Z-Axis Travel||7.1" (180 mm)|
|Throat||5.1" (130 mm)|
|Ball Screws||12 mm (0.47 in) dia. x 4 mm pitch class 5 ground|
|X-Axis & Y-Axis NEMA 23 Motors||191 oz-in (1.35 Nm)|
|Z-Axis NEMA 23 Motor||312 oz-in (2.20 Nm)|
|Positioning Accuracy||0.0004" (0.010 mm)|
|Spindle Taper||2 Morse taper|
|Spindle Motor Brushless DC||0.67 hp (500 Watts)|
|Spindle Speed||100 - 7000 RPM|
|Spindle Torque At 1500 RPM||255 oz-in (1.80 Nm)|
|Spindle Bearings||ABEC 5 angular contact|
|Power Requirements||120 V 60 Hz 6.3 Amps|
|Coolant Pump Receptacle Cap.||120 V 60 Hz 5 Amps|
|Feed Speed Maximum||20 in/min (500 mm/min)|
|Rapid Travel Maximum||79 in/min (2000 mm/min)|
|Crated Weight||248 lbs (113 kg)|
|Machine Weight||184 lbs (84 kg)|
|Overall Dimensions (W x D x H)||24.8" x 24.8" x 24.8" (630 mm x 630 mm x 630 mm)|
|Crate Dimensions (W x D x H)||29.5" x 27.4" x 25.6" (750 mm x 695 mm x 650 mm)|
You need a computer to drive the CNC milling machine. You can get the model 4244 Machine Controller, or you can use your own computer. The computer must meet these minimum requirements:
- 2-GHz CPU
- 1 GB memory
- 20-GB hard drive
- Windows XP, 7, 8, or 10
- 32-MB video card
- USB port (to connect to mill)
- Front USB port (for USB flash drives for moving files)
- DVD/CD-ROM drive
We do not support the use of notebook computers because the power-saving features affect the functioning of Mach3.
