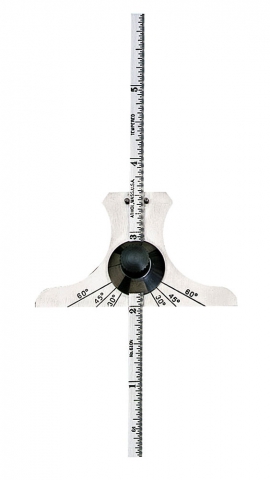

Depth Gage, 6" Combination, Starrett 3546  (Discontinued)Made in United States

Depth Gage, 6" Combination, Starrett
  • Starrett 6" combination gage, 32nds/64ths
  • Starrett catalog number 236
  • Combination depth gage and protractor
Part Number: 3546  (Discontinued)
Weight: 0.18 lb

Price: $93.00

This depth gage has an added feature permitting its use as a protractor for measuring angles. It is a simple, handy tool that is a welcome addition to any machinist's tool box.

The head is graduated both left and right to 30, 45, and 60 degrees. The rule can be set to any of these angles by swinging the rule until the line on the turret coincides with the desired angle

Head is made of hardened steel, ground, and nicely polished – 2 5/8" (66mm) long and 1/8" (3mm) wide

One side of the base is cut out to permit easier and more accurate readings

The center of the head is recessed so that the tool will lay flat to permit more accurate measurements

A tempered rule that has been accurately machined divided, is smoothly fitted to the head and can be locked in position by a knurled nut
