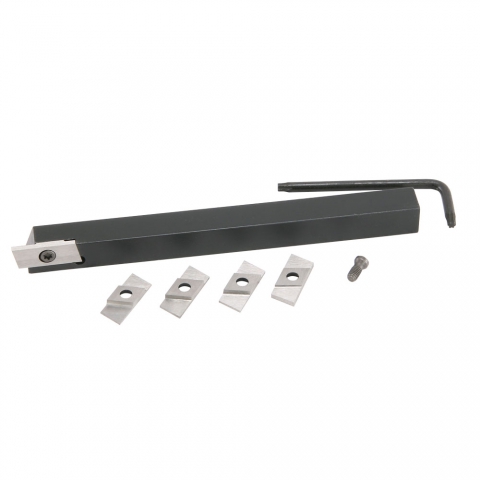

Grooving & Cut-Off Tool, 3/8" Indexable HSS Inserts, A R Warner Kit #21

For external grooving and cut-off operations
Includes two 1/16" (.062") groover T-15 high speed steel inserts
Includes two 1/32" (.031") groover T-15 high speed steel inserts
Includes one 1/64" (.016") groover T-15 high speed steel insert
This lathe grooving tool includes two IS 3007 screws and one T-9 wrench

Part Number: 3572
Weight: 0.59 lb

Price: $149.95

Share this page:
http://lmscnc.com/3572

Description

This Arthur R. Warner Co. indexable cut-off and grooving tool has a 0.375" shank and is 4.5" long.

The maximum cutting depth of the groover inserts is approximately 0.25".

The Arthur R. Warner Co. is a family-owned American manufacturer of high speed steel products with specialization in cutting, shaping, pre-grinding, heat treating, and finish grinding of premium grades of flat high speed steel. Their quality is excellent and LittleMachineShop.com is proud to carry their products.

Chris' Tips

Chris' Tips

ABOUT A.R. WARNER

The Arthur R. Warner Co. is a family-owned American manufacturer of high-speed steel products with specialization in cutting, shaping, pre-grinding, heat treating, and finish grinding of premium grades of flat high-speed steel (and tool steel).

Our Indexable Turning Tool Set was first introduced in July of 1998. Since the introduction, we have expanded our sizes of Turning Tool Sets, introduced 2 sizes of Indexable Boring Bar Kits, a Profiling Kit and a Threading Kit with the appreciated input from numerous Home Shop Machinists.Our latest kits, designed for grooving, have been very well received in both hobbiest and manufacturing markets.

Our kits contain T-15 HSS throw-away inserts. Most machinists are familiar with "Steel" toolbits and Carbide inserts, and now they can achieve the convenience of indexability while using a cutting material which is typically better suited for their smaller lathes and milling machines. Overall, we consider T-15 HSS to be the best grade of readily available HSS for wear resistance, toughness, and hot hardness.

Use T-15 HSS for:

Interrupted Cuts
Underpowered Spindles
Gummy material like stainless, aluminum, and brass
Less than rigid setups

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

Here's a video that talks about high speed steel tooling.
