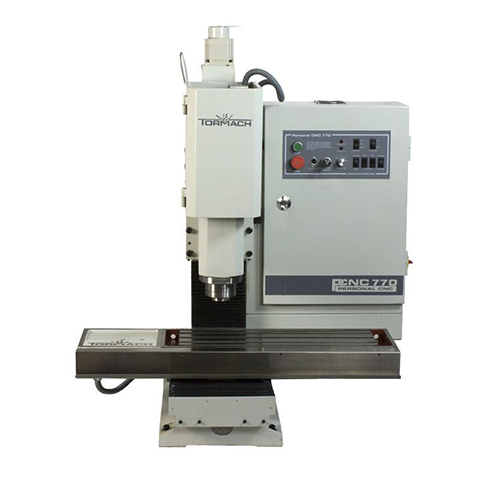

Milling Machine CNC, Tormach PCNC 770 Series 3 3829  (Discontinued)

Milling Machine CNC, Tormach PCNC 770 Series 3
  • Personal CNC milling machine
  • Vector technology spindle drive 750W continuous, 1300W peak
  • Table size: 26" x 8"
  • Travel: 13" x 7.5" x 13.25" (X, Y, Z)
  • High performance stepper motors with microstepping drivers
Part Number: 3829  (Discontinued)
Weight: 800 lb

Price: $6,850.00

The PCNC 770 was designed from the ground up as a CNC mill for the materials you cut the most. With a 10,000 rpm spindle and 130 IPM maximum feed rates, the PCNC 770 is a top performer when it comes to aluminum, light metals, and plastic – and still up to the task when you need to cut tough metals like stainless steel or titanium.

Combined with a space-saving footprint, basic household 115 VAC power requirement, and innovative moving features, the versatile PCNC 770 is a perfect fit, no matter the size of your shop.

The PCNC 770 is an affordable precision machine, designed for R&D, education, and hobbyists alike. It’s got enough power and speed to get the job done, but with the flexibility that you need to adapt to a wide variety of projects – prototyping, model making, customization – even light production.

The PCNC 770 is offered on an a la carte basis in order to meet the needs of a wide variety of users. The machine, computer, LCD and keyboard mount, stand, and 4th axis are each sold separately. We also offer CAD/CAM software, Tormach Tooling System, and a variety of helpful accessories. The base PCNC 770 mill comes without a stand or computer, but includes mill control software and all necessary cables.

Chris Chris' Tips
View a comparison of the specifications for our CNC milling machines.

Here are data sheets for the machines that we sell.

A question we get a lot is What software do I need to run a CNC mill?

Table Size 26" x 8" (660 mm x 203 mm)
T-Slots 3 slots 0.62" (15.9 mm) wide
X-Axis Travel 14.0" (356 mm)
Y-Axis Travel 7.5" (190 mm)
Z-Axis Travel 13.25" (336.5 mm)
Throat 8.6" (219 mm)
Spindle Taper R8
Spindle Motor 1.0 hp (746 Watts)
Spindle Speed 175 - 10000 RPM
Rapid Travel Maximum 135 in/min (3429 mm/min)
Power Requirements 115 V 60 Hz
Typical System Footprint (Incl. Stand) 62" x 45" x 73" (1562 mm x 1143 mm x 1854 mm)
Machine Weight 662 lbs (301 kg)
Shipping Weight 800 lbs (364 kg)
Shipping Dimensions (W x D x H) 42" x 45" x 49" (1067 mm x 1143 mm x 1245 mm)
