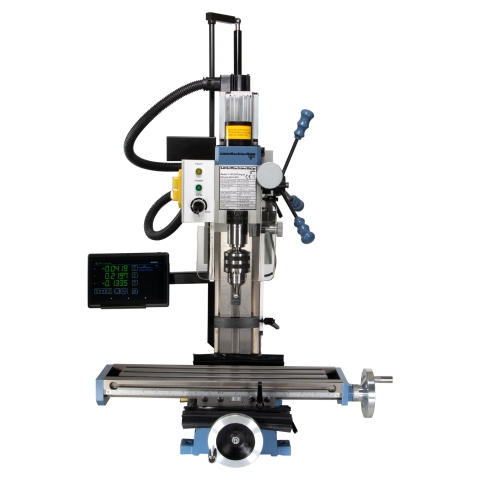

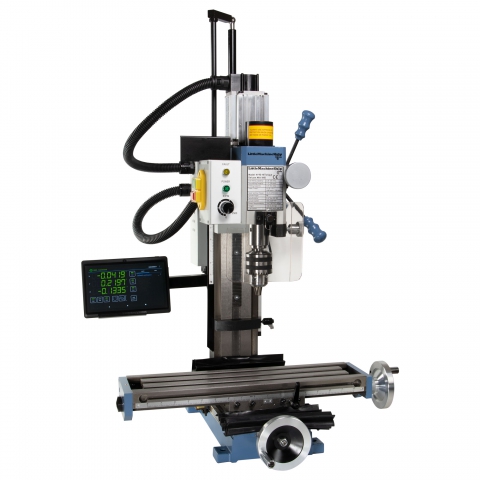

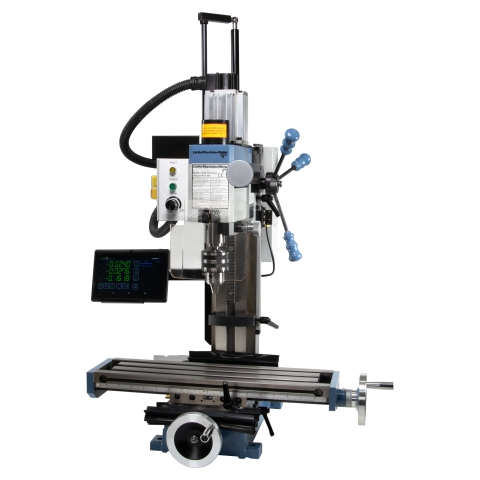

HiTorque Mini Mill, Deluxe
- Includes 3-axis DRO and interlocked spindle lock
- Most powerful mill in its class with the most low speed torque
- No gears in spindle drive
- Largest table and X-Y travel in its class

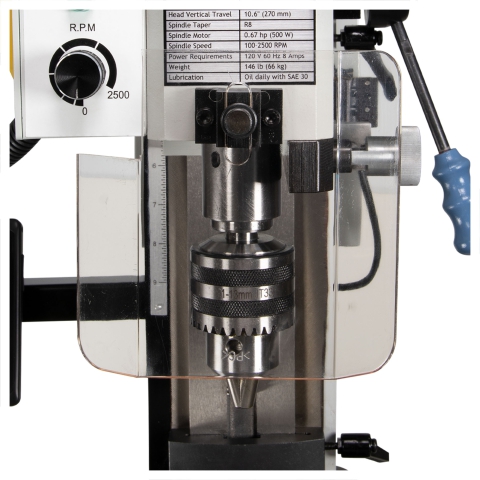

- R8 spindle and drill chuck
- 3-axis digital readout (DRO) with Bluetooth and 7" tablet display. The DRO is completely installed on the mill.
- Electrically interlocked spindle lock disables power to the motor when engaged.
- Machined aluminum handwheels and color keyed drill handles.
The LittleMachineShop.com HiTorque Mini Mill for sale is the best in its class. It has the most power, the most torque, and a larger table than other mills in its class.
This mini milling machine has a solid column. It does not tilt from side to side. This construction is significantly stiffer than the tilting column on other mini mills. This model also includes the air spring head support for even support through the Z-axis range of travel.
The models 4190 & 6450 mini mills come equipped with an electrically interlocked spindle lock. This mechanism makes tool changes easier, faster and safer. When engaged, the plunger automatically drops into the locking hole as the spindle is rotated. An electromagnetic interlock disables power to the motor, locking the spindle.
The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2500 rpm continuously. There are no gears to shift. And, with no gears, the HiTorque Mini Mill is the quietest in its class.
The large mill table provides 50% more table area than other mini mills. It also has 30% more travel in each direction. The resettable feed dials allow you to zero them at any point.
The HiTorque mini milling machine for sale has drill press handles for drilling and fast motion of the mill's head. It also has Z-axis fine feed with 0.001" resolution for milling operations.
This machine is shipped completely assembled and adjusted. Machined surfaces are coated with a viscous oil to prevent rust. It wipes off easily with a rag; no solvents necessary.
*NOTE* We ship machines only to the US and Canada.
- 500 Watt output spindle motor
- 3-Axis DRO with 7" Android tablet readout
- Electrically interlocked spindle lock
- Large X-Y table with attractive anodized handwheels
- R8 Spindle for wide tool availability
- Solid column that does not tilt
- NSK brand Japanese-quality spindle bearings

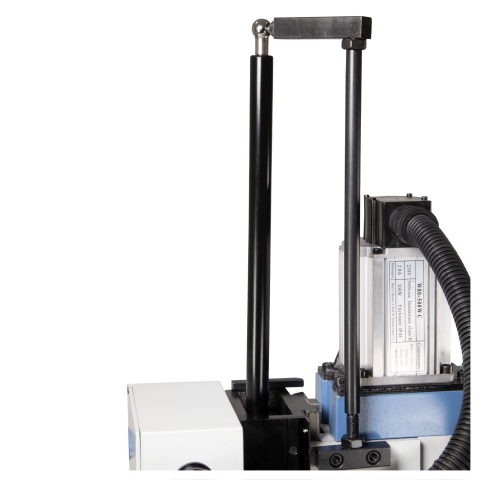

- Gas strut provides even support through the Z-axis range
- Dovetail column maintains head alignment at any height
- Fine feed on Z-axis for precise control
- Three radial handles for drilling

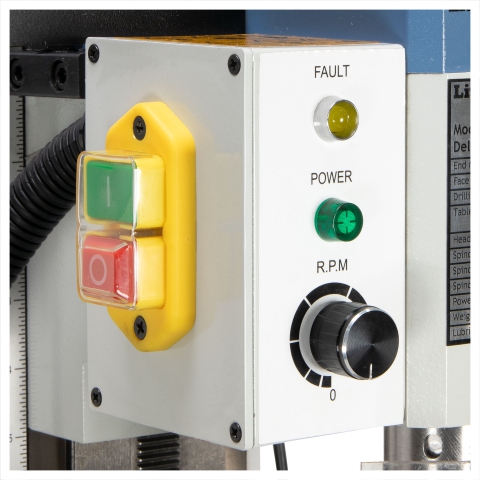

- E-stop safety power switch
- Adjustable Z-axis stop for repetitive drilling
- Neoprene bellows protect horizontal ways
- Adjustable gibs on all dovetail ways
- Includes R8 to 33JT drill chuck arbor and 1/2" drill chuck
|End Milling Capacity||0.6" (16 mm)|
|Face Milling Capacity||1.2" (30 mm)|
|Drilling Capacity||0.5" (13 mm)|
|Table Size||18.1" x 4.7" (460 mm x 120 mm)|
|T-Slots||3 slots 0.47" (12.0 mm) wide|
|X-Axis Travel||11.8" (300 mm)|
|Y-Axis Travel||5.1" (130 mm)|
|Z-Axis Travel||10.6" (270 mm)|
|Throat||6.5" (165 mm)|
|X- and Y-Axis Feed Screws||0.062" (1.59 mm) per rotation|
|Maximum Spindle to Table||11.5" (292 mm)|
|Positioning Accuracy||0.0004" (0.010 mm)|
|Spindle Motor||0.67 hp (500 Watts)|
|Spindle Speed||100 - 2500 RPM|
|Power Requirements||120 V 60 Hz 8 Amps|
|Machine Weight||124 lbs (56 kg)|
|Base Dimensions (W x D)||8.5" x 14.2" (216 mm x 362 mm)|
|Mounting Holes Center to Center (W x D)||7.09" x 11.81" (180.0 mm x 300.0 mm)|
|Overall Dimensions (W x D x H)||23.2" x 19.7" x 36.3" (590 mm x 500 mm x 922 mm)|
|Crated Weight||161 lbs (73 kg)|
|Crate Dimensions (W x D x H)||23.6" x 25.0" x 29.9" (600 mm x 635 mm x 760 mm)|

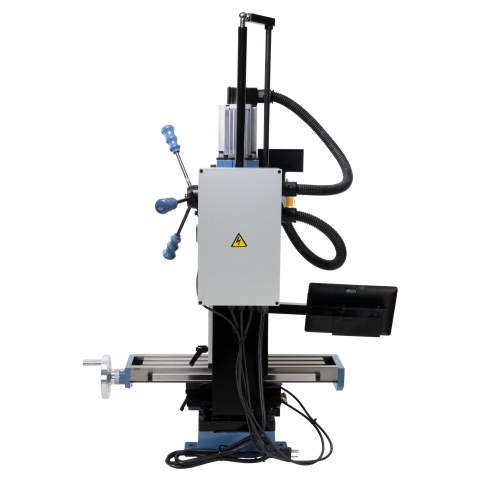

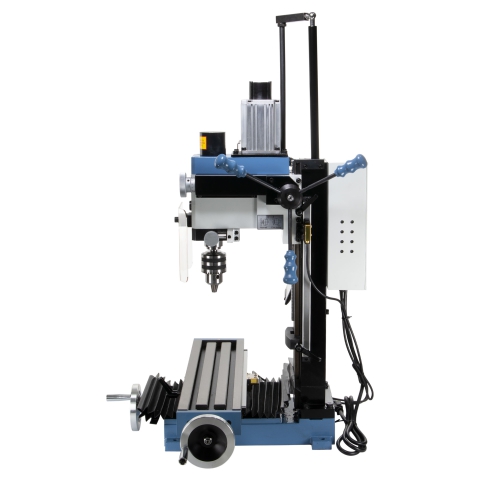

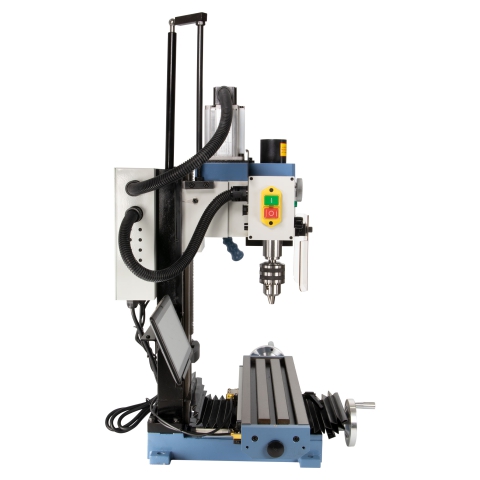

|4190 mini mill - alternate view|

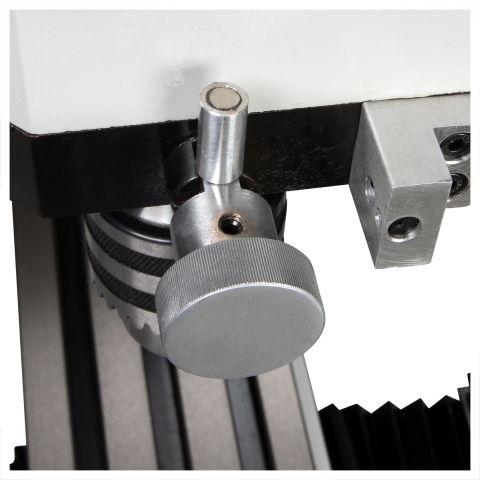

|Electrically interlocked spindle lock - Disengaged|
|Electrically interlocked spindle lock - Engaged|

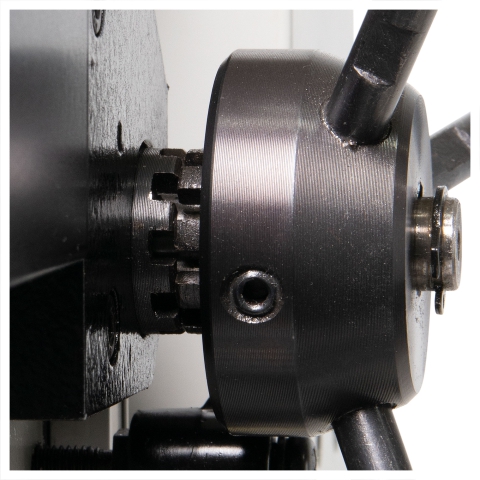

|Z-Axis handle lock disengaged|

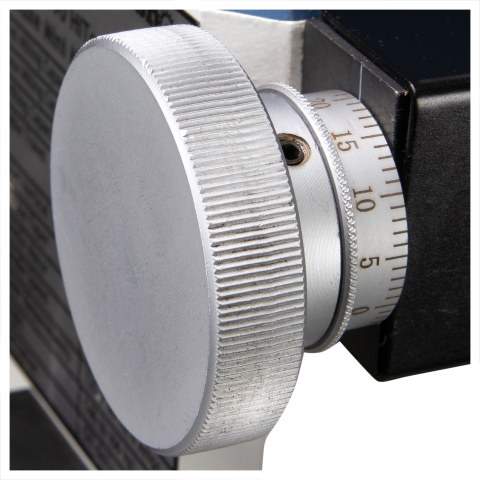

|Z-Axis fine feed|

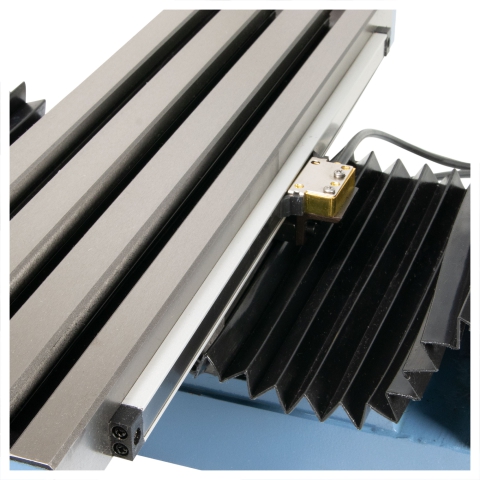

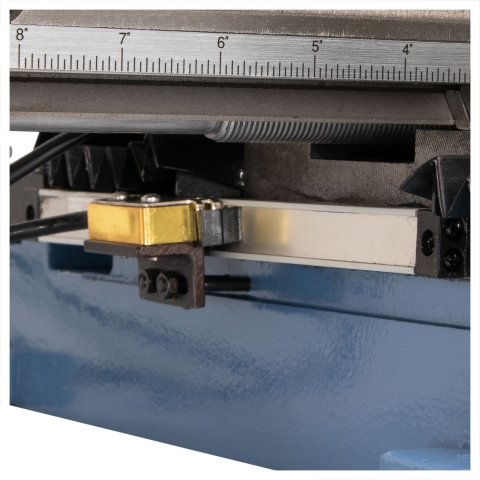

|X-Axis DRO scale installed|
|Y-Axis DRO scale installed|

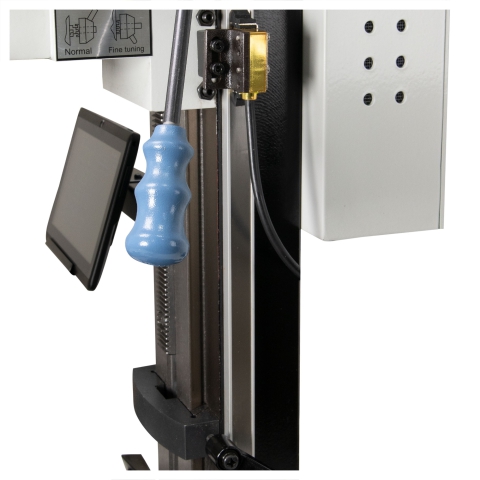

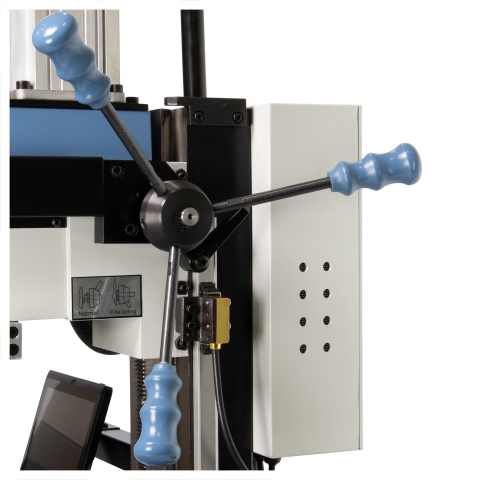

|Z-Axis DRO scale installed|

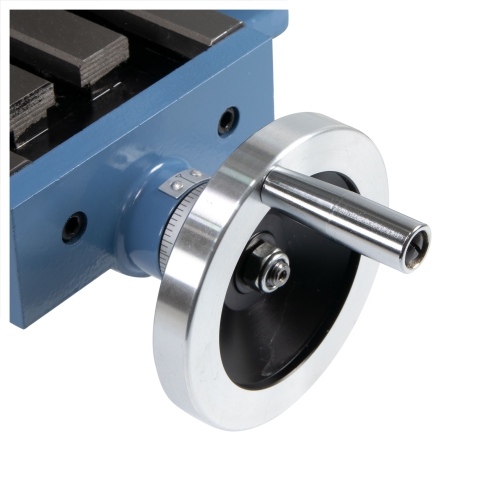

|Anodized aluminum hand wheels|

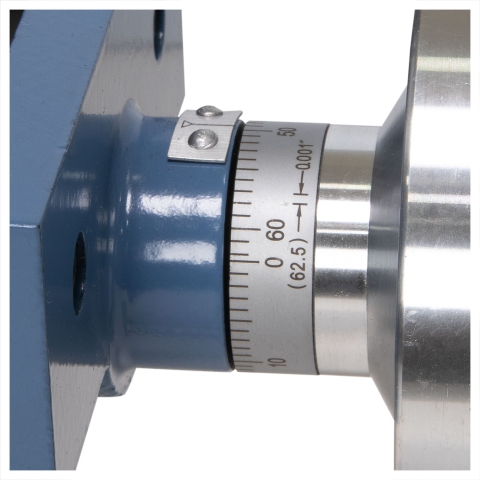

|X-Axis scale ring|

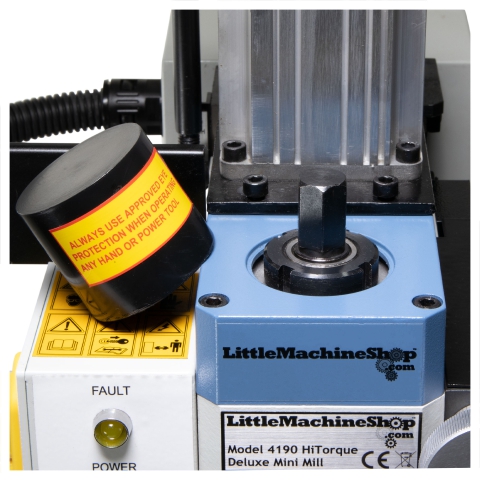

|Drawbar with cover cap removed|

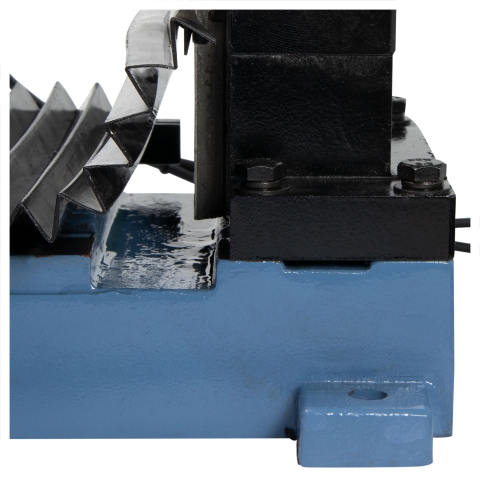

|Solid column base|
The HiTorque Mini Mill comes with the following:
- Mini Mill Users Guide written by Chris Wood
- 7" Android tablet for DRO display
- Two T-slot nuts
- Three open end wrenches (8/10 mm, 14/17 mm, 17/19 mm)
- Four hex (Allen) wrenches (3, 4, 5, and 6 mm)
- One 45-52 mm spanner wrench
- Spindle lock pin
- Oil can (plastic)
- One 1/2" drill chuck and R8/JT33 arbor
