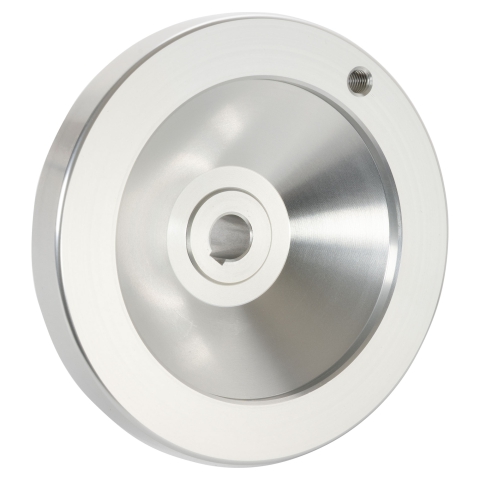

Handwheel, HiTorque Deluxe Mini Mill, Aluminum
- Handwheel for deluxe mini mills
- Fits SIEG SX2LF and HITorque deluxe mini mills
- 100 mm outside diameter
- Fits 10 mm shaft with a 4 mm key
- Bore is 24 mm, handle threading is M6
Handwheel for the HiTorque Deluxe Mini Mill Model 4190 (SX2LF) drawing number 6.
The hand wheel is 100 mm in diameter. It mounts on a 10 mm shaft, with a 4 mm key. The length through the bore is 24 mm. There is an M6 threaded hole for a handle.
See Used On tab for reference to machines using this handwheel and the drawing number.
In your instruction manual, this part appears on the parts list as:
|6||LittleMachineShop.com 4190 HiTorque Mini Mill|
