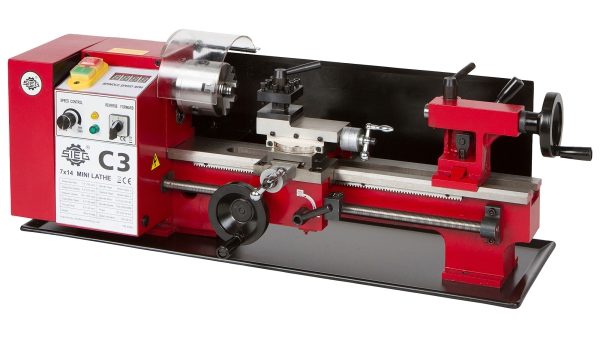

SIEG C3 7x14 Mini Lathe

SIEG C3 7x14 Mini Lathe
  • Full featured miniature lathe at an incredible price
  • Includes 3" 3-jaw chuck, 2 sets of jaws, and chuck key
  • Variable speed with two speed ranges for low speed torque
  • Digital spindle speed readout
  • Cam-lock tailstock
Part Number: 4959
Weight: 124 lb
$799.00 On Sale

Regularly $999.00

In stock
Quantity:

The Lathe that started it all. An indispensable workhouse in many workshops for many years, the SIEG C3 7x14 Mini Lathe has all the features you want at an incredibly low price. Trusted quality, full selection of available tooling, accessories, and replacement parts, and a price you can't beat!

The LittleMachineShop.com exclusive version of this machine includes:

- Full 14" bed length with a cam-lock tailstock for longer work pieces.

- 350 Watt spindle motor with 2 Speed ranges for low speed torque

- Digital spindle speed readout

- Cam-lock tailstock

- Real top and bottom half-nuts and a reversible 16 TPI lead screw provide extended threading capability.

- The cross feed and compound rest dials are graduated in 0.001" and 0.025 mm.

- The lathe is equipped with a 4-way indexing tool post set for 5/16" (8 mm) tools.

- Includes 3" 3-jaw chuck, 2 sets of jaws, and chuck key

- Includes a chip tray, a backsplash guard, and a threading dial.

Chris Chris' Tips
View a comparison of the specifications for our lathes.

With this lathe, you can create every American Standard Unified class 2A inch screw thread from 4 to 100 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 8 mm pitch with the extra 21 tooth change gear that is included.

But you can actually make more thread pitches than that. And, there are more change gear combinations than those shown in the users guide. To see what you can really do, see the Change Gear Calculator.

See what the difference is between the SIEG drive system and the HiTorque drive system.

Here are the user's guides for our machines.

  • 350 Watt spindle motor
  • 2 Speed ranges for low speed torque
  • E-stop safety power switch
  • Zero-settable hand wheels graduated in 0.001" on cross slide and compound rest
  • Extended threading capability - inch and metric threads
  • Rear apron shield to keep swarf out of the mechanism
  • Cam-lock tailstock
  • Four-way turret tool post
  • Reversible lead screw for right and left hand threads
  • Digital spindle speed readout
Specifications
Swing Over Bed 7" (180 mm)
Swing Over Saddle 4.3" (110 mm)
Distance Between Centers 14" (355 mm)
Cross Slide Travel 2.6" (65 mm)
Spindle Through Hole 0.8" (20 mm)
Spindle Taper #3 Morse taper
Tailstock Taper #2 Morse taper
Range of Threads 4-80 TPI; 0.35-8.0 mm
Spindle Motor Output 0.47 hp (350 Watts)
Spindle Speed 60 - 2500 RPM
Power Requirements 120 V 60 Hz 6 Amps
Crated Weight 109 lbs (50 kg)
Machine Weight 88 lbs (40 kg)
Overall Dimensions (W x D x H) 29" x 10" x 12" (740 mm x 260 mm x 300 mm)
Crate Dimensions (W x D x H) 34" x 13" x 15" (860 mm x 335 mm x 375 mm)
SIEG C3 7x14 Mini Lathe - Features Callout Features at a Glance
SIEG C3 7x14 Mini Lathe - Drive System Callout Drive System
SIEG C3 7x14 Mini Lathe - Tool Holding Chuck, Tool Post and Tailstock
"SIEG C3 7x14 Mini Lathe - 3 inch lathe chuck 3 inch lathe chuck, control panel and digital spindle speed readout
SIEG C3 7x14 Mini Lathe - cam-lock tailstock with 2MT Quill Cam-lock tailstock with 2MT Quill
SIEG C3 7x14 Mini Lathe - Cutting and Threading Cutting and Threading Control
"SIEG C3 7x14 Mini Lathe - tool post Tool Post, Threading Dial, Compound Rest
SIEG C3 7x14 Mini Lathe - change gear set Change Gear Set
SIEG C3 7x14 Mini Lathe - Dimensions Callout Key Dimensions
SIEG C3 7x14 Mini Lathe - Specifications Callout Specifications
SIEG C3 7x14 Mini Lathe - accessories included Accessories Included
SIEG C3 7x14 Mini Lathe - Parts Callout Parts Available

This Mini Lathe comes with the following:

  • Mini Lathe Users Guide
  • 3" (80 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
  • A Morse taper #2 dead center for the tailstock
  • An 11-gear change gear set that includes a 21 tooth gear for accurate metric threading
  • Two open end wrenches
  • Four hex (Allen) wrenches
  • A plastic oil can
