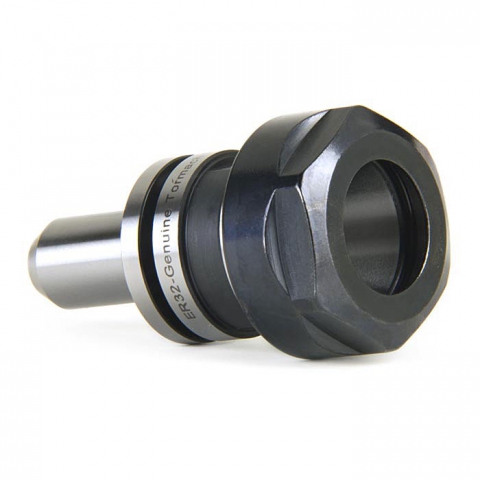

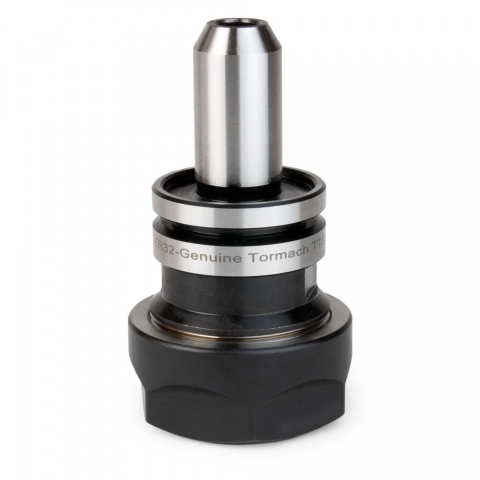

Collet Holder, Tormach TTS, ER-32

Collet Holder, Tormach TTS, ER-32
  • Quick change adapter for ER-32 collets
  • Minimal clearance height for tool change
  • Repeatable tool positioning
  • Hardened and precision ground
Part Number: 4998
Weight: 0.88 lb

Price: $52.95

In stock
Quantity:
Share this page:
https://littlemachineshop.com/4998 copy content icon


Related Products

ER-32 Collets
ER-32 Collets

Collet Tool Changing Fixture
Collet Tool Changing Fixture

Quick change Tormach collet holder for ER-32 collets. Made of alloy steel, it fits all ER-32 collets. Includes collet nut.
Chris Chris' Tips
With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.
Specifications
Outside Diameter 1.97" (50.0 mm)
Installed Height 2.13" (54.0 mm)
Thread M40 x 1.5
