Faceplate, Mini Lathe, 100 mm Flange

Faceplate, Mini Lathe, 100 mm Flange
  • 160 mm Diameter
  • 8 Slots to Mount Work
  • 72 mm Registration Recess
  • Requires 3 M8 x 25 Studs
  • Compatible with Lathes with 100 mm Flange Chuck Mount
Part Number: 5123
Weight: 3.19 lb

Price: $40.64

This product is currently backordered.

Estimated availability:
31-Jan-2022
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

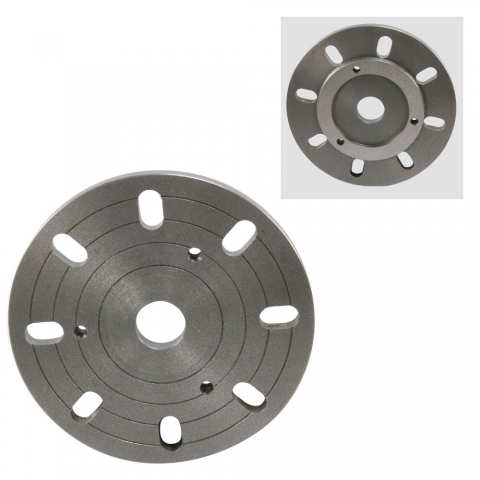

The faceplate is 6.29" (160 mm) in diameter and has 8 slots for mounting work. The faceplate is made of cast iron.

This faceplate has a 72 mm registration recess. It requires 3 M8 x 25 studs. It mounts in place of a 100 mm (4") 3-jaw lathe chuck.

Compatibility

This product works with lathes with a 100 mm flange chuck mount including:

  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   MX-8x14 Preenex (and others) 8x14 Lathe
  •   Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
  •   Grizzly G0768 8x16 Benchtop Lathe
  •   LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  •   SIEG C4 8.5x16 Bench Lathe
  •   SIEG SC4 8.5x16 Bench Lathe
  •   Travers Tools OT218410 OTMT 8x16 Bench Lathe
  •   LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  •   LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
