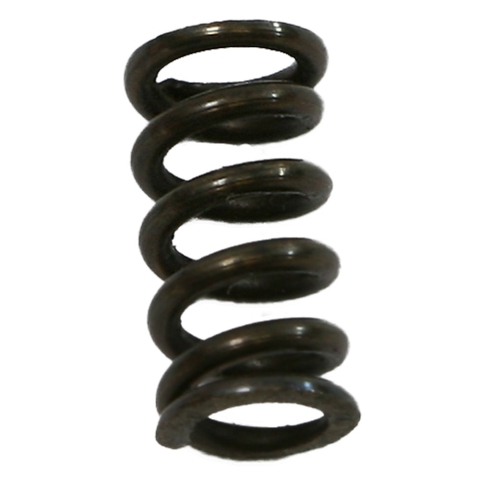

Spring, 4 mm x 12 mm
- 4 mm x 12 mm
- Wire diameter 0.8 mm
Part Number: 5245
Weight: 0.01 lb
Weight: 0.01 lb
Price: $0.95
Share this page:
https://littlemachineshop.com/5245
https://littlemachineshop.com/5245
Drive lever shaft compressing spring for SC4 bench lathes.
Part # 116 on SC4 parts diagram (SC4-116)
| Spring Type | Compression |
| End Type | Closed |
| Overall Length | 0.5" (12 mm) |
| Outside Diameter | 0.2" (4 mm) |
| Wire Diameter | 0.03" (0.8 mm) |
| Wire Shape | Round |
In your instruction manual, this part appears on the parts list as:
