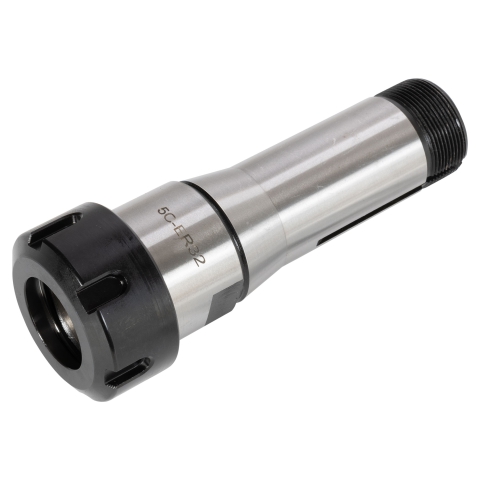

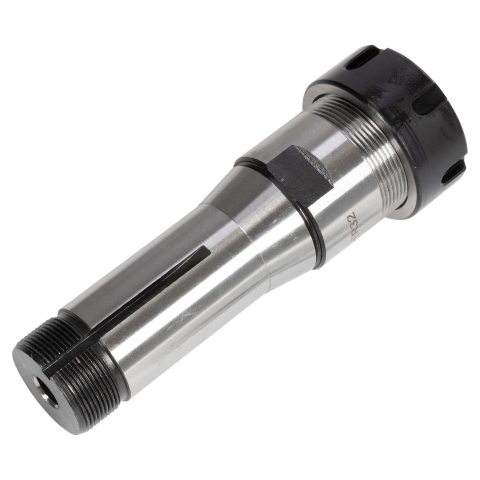

Collet Chuck, ER-32, 5C

5C collet shank, holds all ER-32 collets
Hardened and precision Ground
5C shank is externally threaded
0.0005" (0.0127 mm) maximum runout (DIN6499B standard)

Part Number: 5453
Weight: 2.25 lb

Price: $49.95

Share this page:
http://lmscnc.com/5453

Description
Chris' Tips

Description

5C to ER-32 collet chuck, milling chuck holder.

This collet chuck is hardened and precision ground and has a maximum runout of 0.0005" (0.0127 mm). The chuck will hold all ER-32 collets and a spanner wrench is included.

ER-32 collets have a range of 1/16" to 13/16" (1.0 mm to 21.0 mm).

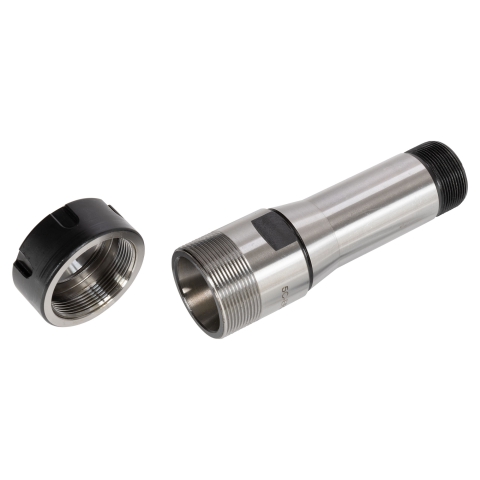

*Collet must be assembled into a collet chuck nut before inserting into the collet chuck.

Chris' Tips

Chris' Tips
With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.
