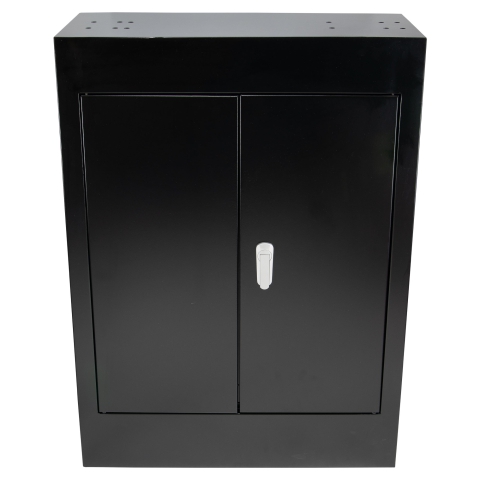

Stand Cabinet, Mini Lathe (Component)
- Metal stand for mini lathe, black
- Single column design
- Cabinet for storage
- Fits multiple chip tray styles for a variety of machines
- Stand Only - match with approproate chip tray if needed Note - 7450 lathe comes with a tray no ad
Part Number: 5502
Weight: 81.0 lb
Weight: 81.0 lb
Price: $349.95
Share this page:
https://littlemachineshop.com/5502
https://littlemachineshop.com/5502
This single column black stand comes with a built in cabinet and is suitable for all HiTorque Lathes as well C2, C3, SC2 and SC3 lathes.
NOTE: this is the stand only, match the stand with the appropriate chip tray:
**Note - Our 7450 HiTorque Deluxe Mini Lathe comes with the tray standard so you only need to purchase the stand.
5503 - Chip Tray, 7x10 C2A Mini Lathe
5504 - Chip Tray, 7x12 C2C/SC2 Mini Lathe
5505 - Chip Tray, 7x14 C3 Mini Lathe
5506- Chip Tray, 7x16 SC3 Mini Lathe
| Height | 34.6" (880 mm) |
| Width | 25.6" (650 mm) |
| Depth | 11.8" (300 mm) |
| Cabinet Usable Width | 25.5" (648 mm) |
| Cabinet Top Shelf Usable Depth | 9.8" (250 mm) |
| Cabinet Top Shelf Usable Heigth | 16.4" (417 mm) |
| Cabinet Bottom Shelf Usable Depth | 9.1" (230 mm) |
| Cabinet Bottom Shelf Usable Height | 15.0" (380 mm) |
| Bolt Down Slots Distance On Center | 6.5" (165 mm) |
| Bolt Down Slots Width | 0.5" (13 mm) |
| Bolt Down Slots Depth | 1.4" (35 mm) |
