Switch, Power, Bench Mill & Lathe

Part Number: 5527
Weight: 0.18 lb

Price: $29.95

Share this page:
http://lmscnc.com/5527

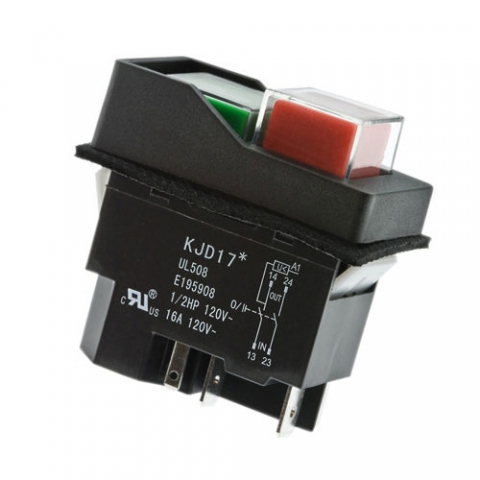

On/off switch for the HiTorque bench lathe and bench mill.

It is rated at 110-120V 50-60Hz.

This is a KEDU KJD17/120V switch with a black bezel.

This switch can be used as a replacement for PN 4055. It snaps into the hole so does not need screws.

See Used On tab for reference to machines using this part and the corresponding drawing number.

In your instruction manual, this part appears on the parts list as:

Item No	Models
456	LittleMachineShop.com 7550 HiTorque Bench Lathe - 8.5x20 LittleMachineShop.com 7500 HiTorque Bench Lathe - 8.5x20
D01	LittleMachineShop.com 5500 HiTorque Bench Mill LittleMachineShop.com 5550 HiTorque Bench Mill
D38	LittleMachineShop.com 6500 HiTorque Bench Mill LittleMachineShop.com 6550 HiTorque Bench Mill LittleMachineShop.com 6570 HiTorque Bench Mill
D41	LittleMachineShop.com 6700 HiTorque Large Bench Mill LittleMachineShop.com 6750 HiTorque Large Bench Mill Various SX3.5-US SIEG Large Bench Mill LittleMachineShop.com 6770 HiTorque Large Bench Mill

Click your model to see the complete parts list.
