Handwheel, HiTorque Bench Mill

X and Y-axes handwheel, bench mill
Fits HiTorque bench mills and SIEG SX2.7 bench mills
100 mm outside diameter
Mounts on 12 mm shaft with 4 mm key
Handle hole is threaded for M8 bolt

Part Number: 5750
Weight: 0.50 lb

Price: $19.95

Share this page:
https://littlemachineshop.com/5750

This handwheel is used on both the X- and Y-axes of the HiTorque Bench Mill (SX2.7). The handwheel is 100 mm outside diameter. It mounts on a 12 mm shaft, with a 4 mm key. The depth of the bore is 25mm. There is an M8 threaded hole for a handle. Part #12 on SX2.7 parts diagram B (B1).

See Used On tab for reference to machines using this part and the corresponding drawing number.

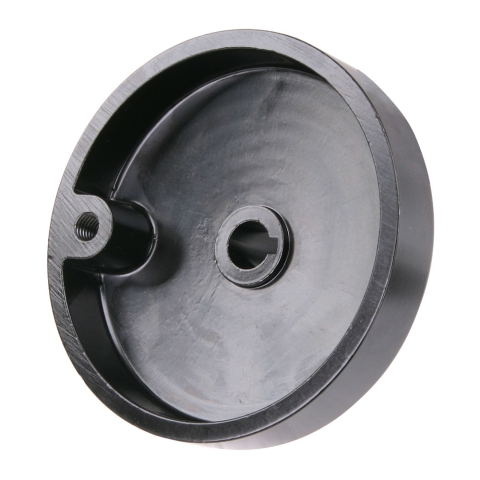

Photos

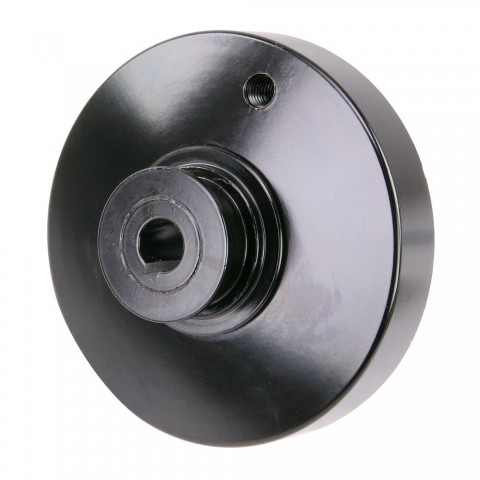

Reverse Side

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
B12	LittleMachineShop.com 5500 HiTorque Bench Mill Various SX2.7-US SIEG Bench Mill LittleMachineShop.com 5520 HiTorque Bench Mill LittleMachineShop.com 6500 HiTorque Bench Mill
C08	LittleMachineShop.com 5500 HiTorque Bench Mill Various SX2.7-US SIEG Bench Mill LittleMachineShop.com 5520 HiTorque Bench Mill LittleMachineShop.com 6500 HiTorque Bench Mill

Click your model to see the complete parts list.
