Caliper, Digital 6" Fractions IP54, iGaging
- Range: 0-6" (0-150 mm)
- Accuracy: 0.001"/6"
- Resolution: 0.0005" / 0.01mm / 1/128"
- Easy to Read Super Large Display LCD
- IP54: Splash water, oil and dust resistance
Part Number: 5758
Weight: 0.73 lb
Weight: 0.73 lb
Price: $34.95
Share this page:
https://littlemachineshop.com/5758
https://littlemachineshop.com/5758

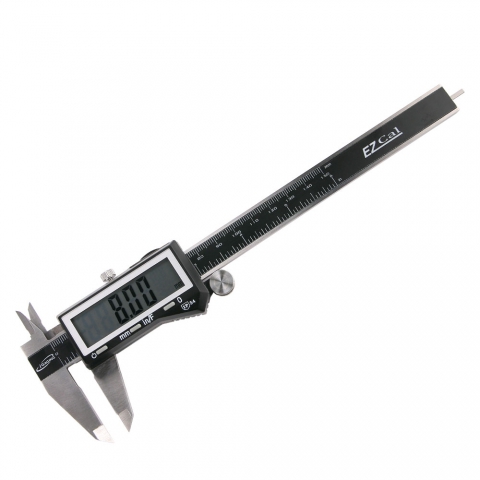

This 6" electronic digital caliper has a large LCD display with ultra-responsive measuring speed that easily switches from inches (decimal) to fractions to metric measurements.
- Range: 0-6" (0-150 mm)
- Accuracy: 0.001"/6"
- Resolution: 0.0005" / 0.01mm / 1/128"
The caliper has hardened stainless steel construction allowing for smooth movement and a high measure speed. It is IP54: Splash water, oil and dust resistance

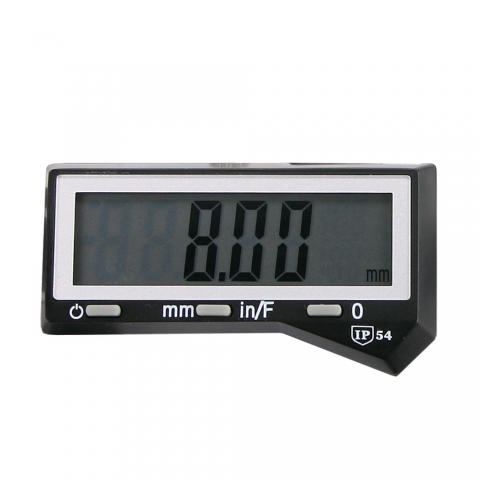

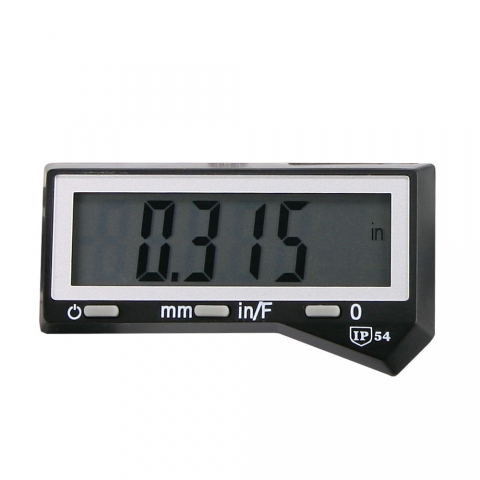

The three buttons perform the following:
1. OFF/ON: Turns the power on and off. (Auto off)
2. ZERO: Sets the readout to zero at any position.
3. mm/in/F: Switches between fractional inch, decimal inch and metric display.
The caliper comes furnished with a fitted case.
Chris' TipsAccuracy—indicates how close a measured value is to the true quantity of what is being measured.
Resolution—is the smallest increment the system can display or measure. It's one division on a dial, or the smallest increment of the righmost digit on a digital display.
| Range | 0" - 6" (0 mm - 152 mm) |
| Resolution | 0.0005" (0.013 mm) |
| Accuracy | 0.001" (0.03 mm) |
| Clear to Zero | Yes |
| Inch/mm Display | Yes |
| Fraction Display | Yes |
| International Protection Rating | IP54 |
 |
Metric Display |
 |
Decimal Inch Display |
 |
Fractions Display |
