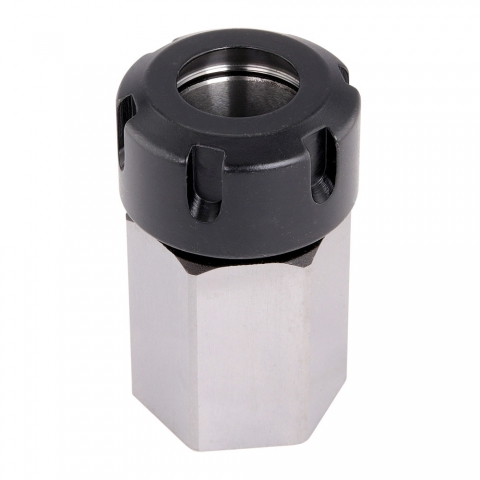

Collet Block, ER-25 Hexagonal

Uses standard ER-25 collets
Through hole permits long parts to be machined
Hardened Tool Steel, Ground to .0005" on all 6 Sides
Accurately ground back face so the blocks may be used standing upright
Includes ER-25 collet nut

Part Number: 5911
Weight: 0.88 lb

Price: $39.95

This product is currently backordered.

Estimated availability:
14-Oct-2025
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
https://littlemachineshop.com/5911

Description

This collet block provides easy indexing for 3 and 6 divisions.

The collet block is 1.75" across the flats and the body is 2.7" long.

Chris' Tips

Chris' Tips
With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.

Photos

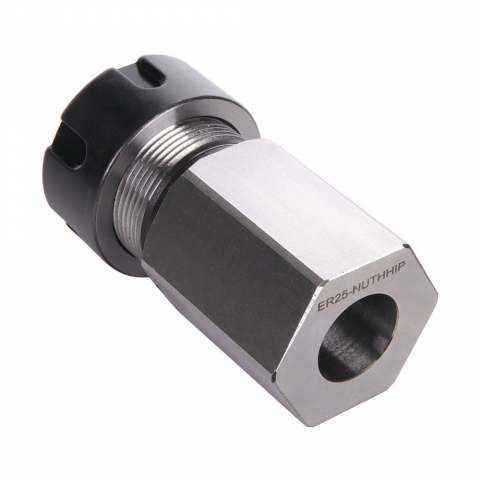

Alternate View
