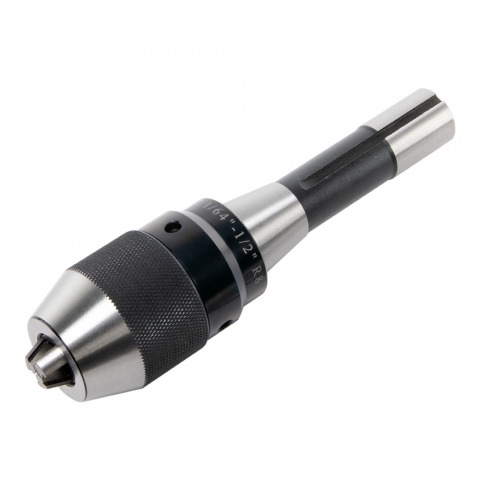

Keyless Drill Chuck, 1/2" with Integrated R8 Arbor

1/64" to 1/2" Keyless Drill Chuck
Integrated R8 Shank with 7/16"-20 drawbar thread
+/- .003" (0.0762 mm) TIR
More compact than traditional chuck/arbor combinations
No chuck slipping

Part Number: 5923
Weight: 2.82 lb

Price: $119.95

Share this page:
https://littlemachineshop.com/5923

1/64" - 1/2" Precision keyless drill chuck with integral R8 shank. The integrated design maximized rigidity and accuracy. Additionally, the chuck is more compact than a typical combined drill chuck and arbor combination, and there can be no chuck slipping on its arbor.

The chucks total indicated runout (TIR) is +/- .003" (0.0762 mm) or less

Chris' Tips

Chris' Tips
A keyless drill chuck differs from a standard drill chuck in its convenience and ease of use. With a keyless chuck, you can quickly change drill bits without the need for additional tools. This can save time and effort, particularly when you need to switch between multiple drill bits for various tasks.

Additionally, a keyless drill chuck offers a more secure grip on the drill bit. It eliminates the risk of the drill bit slipping or getting loose during drilling, which can lead to accidents or damage to the workpiece. The design of a keyless chuck ensures a firm grip on the drill bit, enhancing safety and precision.

Compatibility

Compatibility

This product works with mills with a R8 spindle taper including:

Grizzly G0758 Mill/Drill
BusyBee CX605 Craftex Mini Mill
Cummins (Tools Now) 7877 Mini Mill
Eastwood 32498 Mini Mill
Harbor Freight 44991 Central Machinery Mill/Drill
Homier 03947 Speedway Mini Mill
King Canada KC-15VS King Industrial Mini Mill
Northern Tool 49657 KLUTCH Mini Mill
Penn Tool Co XJ-9510-1 Precise Mini Mill
SIEG X2-R8 Mini Mill
Travers Tools OT2213 OTMT Mini Mill
SIEG X2P Mini Mill
LittleMachineShop.com 4962 SIEG Mini Mill
SIEG X2D Mini Mill
SIEG X2L Mini Mill
WEN 33013 WEN Mini Mill
SIEG X2LF Mini Mill
BusyBee CX612 Craftex Mini Mill
SIEG SX2 Mini Mill
Micro-Mark 84630 MicroLux Mini Mill
LittleMachineShop.com 3900 HiTorque Mini Mill
SIEG SX2L Mini Mill
LittleMachineShop.com 3990 HiTorque Mini Mill
LittleMachineShop.com 6450 HiTorque Mini Mill
LittleMachineShop.com 3960 HiTorque Mini Mill
LittleMachineShop.com 4190 HiTorque Mini Mill
SIEG SX2LF Mini Mill
Grizzly G0781 Mill/Drill
SIEG X2.7 Bench Mill
SIEG X2.7L Bench Mill
WEN 33075 WEN Bench Mill
LittleMachineShop.com 6500 HiTorque Bench Mill
LittleMachineShop.com 5500 HiTorque Bench Mill
SIEG SX2.7 Bench Mill
LittleMachineShop.com 6570 HiTorque Bench Mill
LittleMachineShop.com 5550 HiTorque Bench Mill
LittleMachineShop.com 6550 HiTorque Bench Mill
SIEG SX2.7L Bench Mill
Grizzly G0463 Mill/Drill
Harbor Freight 93885 Central Machinery Mill/Drill
SIEG X3 Small Mill
Woodstock International M1110 Shop Fox Small Mill
BusyBee CX611 Craftex Small Mill
Grizzly G0619 Mill/Drill
SIEG SX3 Small Mill
Travers Tools OT2225SX3 OTMT Small Mill
Grizzly G0759 Mill/Drill With Stand
Grizzly G0704 Mill/Drill With Stand
Grizzly G3102 Vertical Mill
Grizzly G3103 Vertical Mill
SIEG X3.5 Large Bench Mill
LittleMachineShop.com 6750 HiTorque Large Bench Mill
LittleMachineShop.com 6770 HiTorque Large Bench Mill
LittleMachineShop.com 6700 HiTorque Large Bench Mill
Grizzly G0722 Bench Mill
Grizzly G0720R Bench Mill
SIEG SX4 Bench Mill
Harbor Freight 33686 Central Machinery Small Mill
Rong Fu RF-xx Milling & Drilling Machine
