Feed Screw, Z-Axis Handwheel, HiTorque Large Bench Mill
- Feed screw, Z-Axis
- HiTorque large bench mill (SX3.5)
- Supports z-axis motion on handwheel driven drive
Part Number: 6235
Weight: 0.18 lb
Weight: 0.18 lb
Price: $9.95
Share this page:
https://littlemachineshop.com/6235
https://littlemachineshop.com/6235

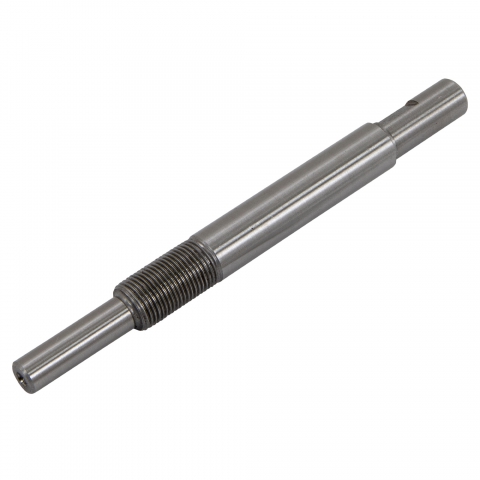

Z-Axis feed screw for the HiTorque large bench mill (SX3.5). This screw is found on the large bench mills with a Z-Axis controlled by a handwheel.
Overall length 126mm, main shaft 12mm. Diameter of small side 8mm and large side 10mm. Threaded section 21mm when measured like a bolt.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| B22 | LittleMachineShop.com 6700 HiTorque Large Bench Mill Various SX3.5-US SIEG Large Bench Mill |
