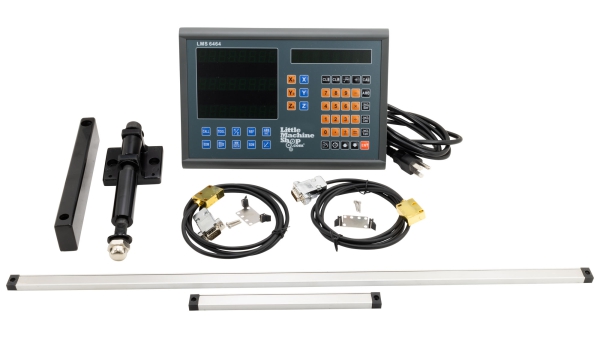

2-Axis DRO Kit, Bench Lathe
- Hard wired 2-axis DRO package with mounting arm
- Designed for LittleMachineShop.com HiTorque bench lathes
- Complete package, no additional components needed
- Advanced display functions
- Rotating arm included
Weight: 8.35 lb
Price: $549.95
https://littlemachineshop.com/6387
The wiring setup eliminates the need for a wireless environment and ensures regular steady connectivity to your lathe.
The display has a protective cover which can be used or removed based on your preferences.
The read head cable is approximately 58" between read head and an 9-Pin connector.
The scales are pre-cut to length for the HiTorque bench lathe.
See the Compatibility tab for products that work with this product.
***NOTE: This is not a simple "plug in" accessory that requires installation. Please review the instructions in Chris's Tips before purchase.
Chris' Tips| X-Axis Scale Length | 24.02" (610.0 mm) |
| Y-Axis Scale Length | 7.09" (180.0 mm) |
| Repeatability | 0.0002" (0.005 mm) |
| Resolution | 0.0002" (0.005 mm) |
| Specified Accuracy | 0.0020" (0.050 mm) / 1 m travel |
| Accuracy / Foot | 0.0020" (0.050 mm) |
| Accuracy / 100 Mm | 0.0020" (0.050 mm) |
| Scale Technology | Magnetic |
| Scale Protection | Coolant & dust resistant |
| Voltage | 120-240 V |
| Clear to Zero | Yes |
| Direct Entry of Position | Yes |
| Inch/mm Display | Yes |
| Power Off Memory | Yes |
| Reversible Count Direction | Yes |
| Find Center | Yes |
| Bolt Circles | Yes |
| Bolt Lines | Yes |
| Preset Points | Yes |
| Tool Offsets | Yes |
| Radius/Diameter | Yes |
| Incremental/Absolute | Yes |
| Calculator | No |
| Arc Machining | No |
| Linear Error Compensation | No |
| Made In | China |
| Warranty | 1 year |
| Phone Tech Support | Free |
 |

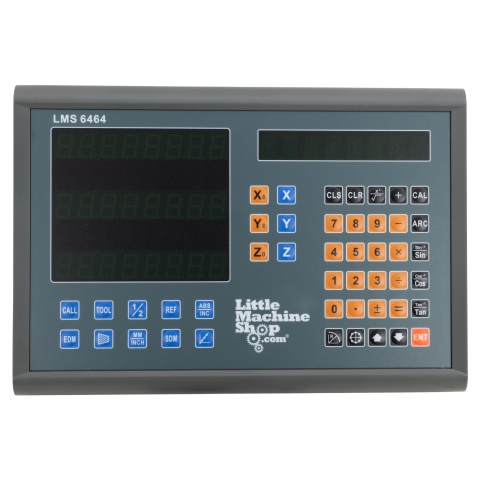

Display |
 |

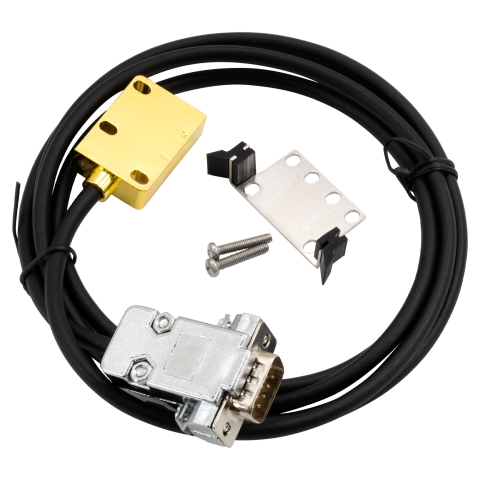

Read Head with Cable |
 |

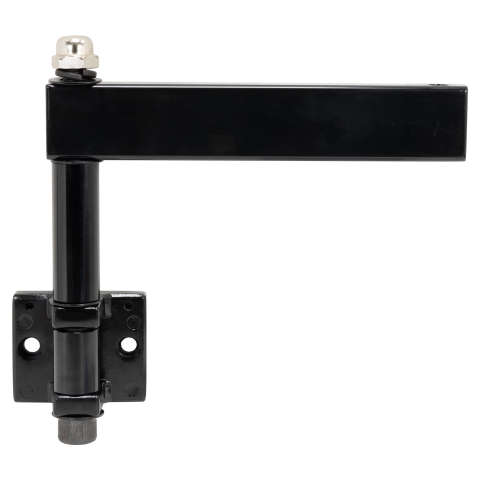

Mounting Bracket |
Compatibility
This product works with these LittleMachineShop.com products:
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- SIEG C4 8.5x16 Bench Lathe
- SIEG SC4 8.5x16 Bench Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 7600 HiTorque 9x20 Bench Lathe
- LittleMachineShop.com 7650 HiTorque 9x20 Bench Lathe
