Collet Chuck, Rotary Table, ER-16, 80 mm Diameter

Collet Chuck for Rotary Tables
Fits tables with 8 mm T-Slot
80 mm Outside Diameter
Suitable for 3" (75mm) & 4" (100mm) rotary tables

Part Number: 6684
Weight: 1.35 lb

Price: $34.95

Share this page:
http://lmscnc.com/6684

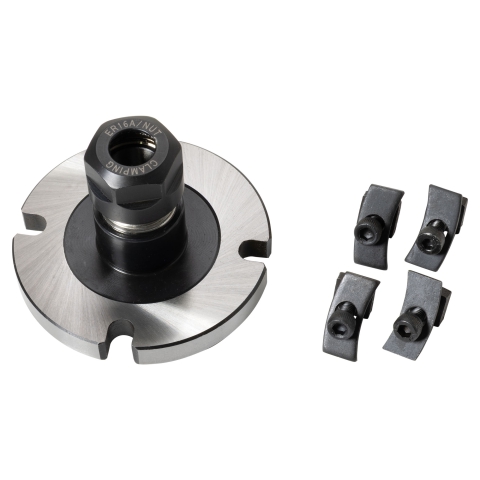

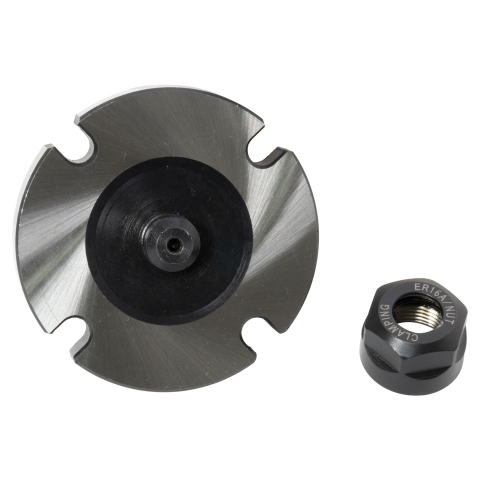

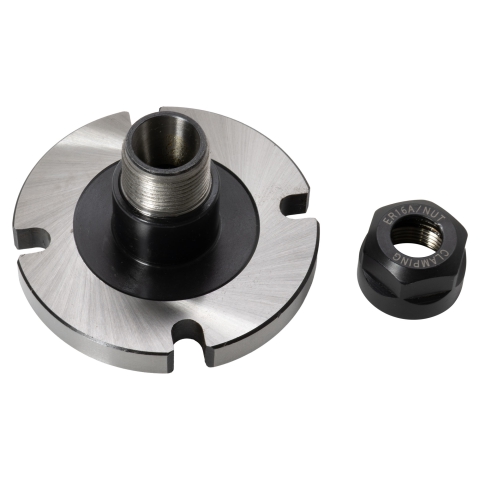

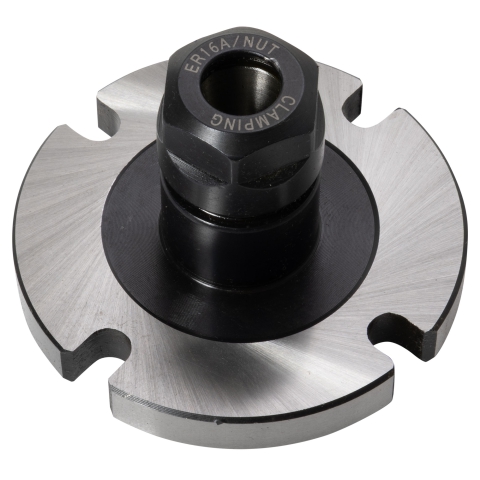

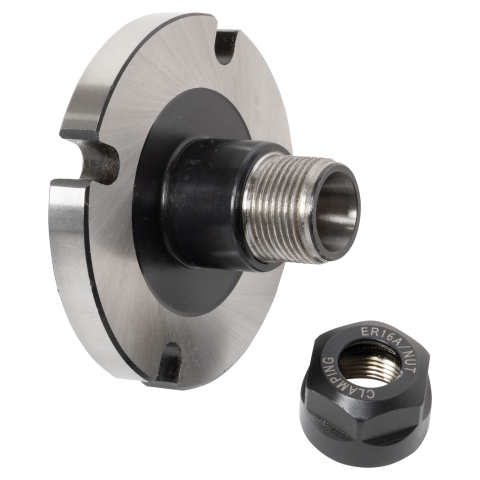

This 80 mm diameter ER-16 collet chuck clamps directly to a rotary table with an 8 mm T-Slot. T-Slot nuts, bolts and top brackets are included.

The collet chuck holds standard ER-16 collets. View our related products for links to rotary tables, ER Collets and Collet Nut Wrenches.

Chris' Tips

Chris' Tips
With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.
