Plinth Block, Mini Lathe
- Quick change tool post plinth block
- Adds rigidity to the tool post mounting
- Designed by, and custom made for LittleMachineShop.com
- Fits mini lathes with QCTP - replaces compound rest
- Designed for HiTorque and SIEG C2/SC2 and C3 mini lathes
Weight: 2.21 lb
Price: $24.95
http://lmscnc.com/6783
The plinth block must be used with a quick-change tool post. It will not work with the standard 4-way tool post. This is not as tall as the compound rest so that tool holders are in the middle of the adjustment range on quick change tool posts. (2) M6x25 Socket Head Cap Screws are included.
- Mount with the two threaded holes toward the chuck.
- Use the inside threaded hole for small work.
- Use the outside threaded hole for large work.
- Use the center threaded hole for full support when the tool post is at an odd angle.
The mini lathe plinth block is designed by, and manufactured exclusively for LittleMachineShop.com. It will fit HiTorque mini lathes as well as SIEG C2/SC2 and C3 mini lathes including popular models sold by Harbor Freight, WEN, Micro-Mark, Grizzly and others.
See the Compatibility tab for machines and other products that work with this product.
 |

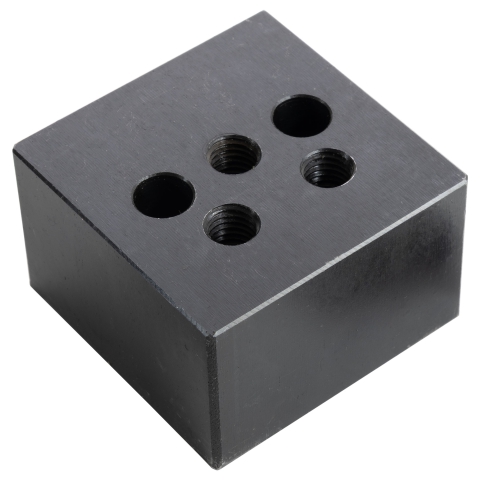

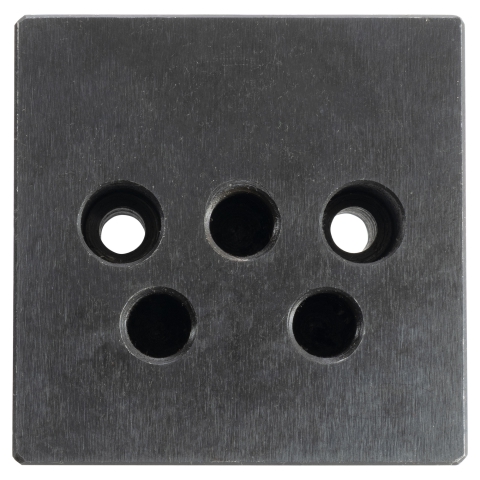

Underside |
 |

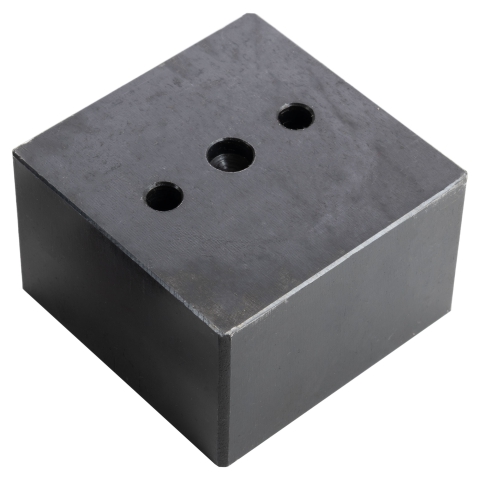

Top View |
 |

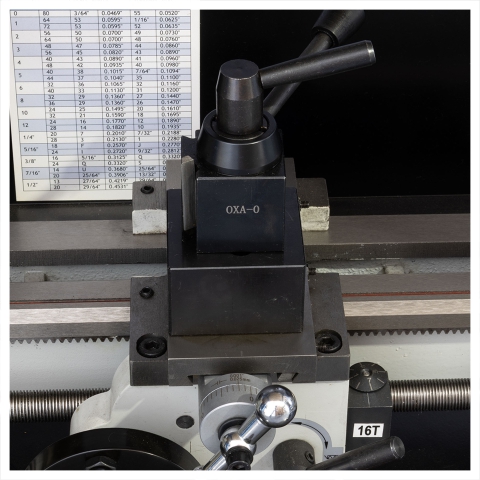

Mounted on Mini Lathe |
Compatibility
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
