HiTorque 8.5x20 Bench Lathe, Deluxe
- DRO and digital dials, inch and metric threading
- 120VAC 60 Hz
- 1000 Watt (1.34 HP) brushless DC drive
- Power longitudinal feed and power cross feed
- 4" (100 mm) 3-jaw self centering lathe chuck
Weight: 281 lb
The Deluxe model includes digital readouts (DRO) on the compound rest, cross slide, carriage, and tailstock (cross slide and carriage DROs feed data via magnetic scales to a Bluetooth equipped tablet display). All DROs read equally accurately in inches and mm.
The Deluxe model also includes an AXA quick change tool post set with five tool holders; anodized aluminum hand wheels with black anodizing in the centers; chrome knobs and levers; and a heavy duty splash guard that covers the full bed length. In addition, the compound rest is modified to better accommodate the quick change tool post.
The 1000 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2000 rpm continuously in both directions. There are no gears to shift. The updated control panel allows you to stop and then restart the lathe at a pre-selected speed.
A reversible 2 mm pitch lead screw provide extended threading capability. With our lathe machinery, you can create every American Standard Unified class 2A inch screw thread from 8 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.2 to 8 mm pitch with the change gears that are included. All the gears on this lathe are metal.
The LittleMachineShop.com model 7550 HiTorque 8.5x20 Bench Lathe for sale is a version of the SIEG SC4 bench lathe.
*NOTE* We ship machines only to the US and Canada.
- 1000 Watt output spindle motor
- DRO on compound, cross feed, carriage, and tailstock
- All DROs read equally accurately in inches and mm.
- AXA quick change tool post set
- Genuine NSK ball bearings
- Induction hardened ways
- Power longitudinal feed
- Anodized aluminum hand wheels with black anodizing in centers
- Chrome knobs and levers
- Power cross feed
- E-stop safety power switch
- Extended threading capability - inch and metric threads
- Cam lock tailstock
- Reversible lead screw for right and left hand threads
|Swing Over Bed||8.5" (215 mm)|
|Swing Over Saddle||4.6" (118 mm)|
|Distance Between Centers||20" (510 mm)|
|Cross Slide Travel||3.9" (100 mm)|
|Spindle Through Hole||0.8" (20 mm)|
|Spindle Taper||#3 Morse taper|
|Tailstock Taper||#2 Morse taper|
|Range of Threads||6-80 TPI; 0.25-4.0 mm|
|Spindle Motor Output||1.34 hp (1000 Watts)|
|Spindle Speed||100 - 2000 RPM|
|Power Requirements||120 V 60 Hz 12 Amps|
|Machine Weight||220 lbs (100 kg)|
|Crated Weight||281 lbs (128 kg)|
|Overall Dimensions (W x D x H)||40" x 22" x 16" (1010 mm x 550 mm x 400 mm)|
|Crate Dimensions (W x D x H)||44" x 28" x 22" (1110 mm x 700 mm x 550 mm)|

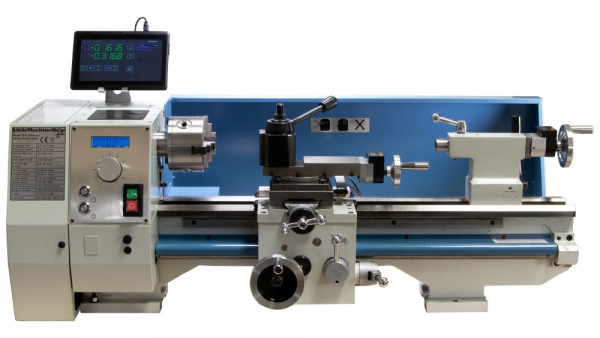

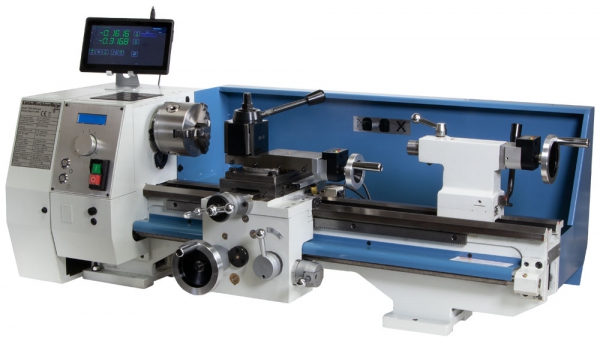

|HiTorque 8.5x20 Deluxe Bench Lathe|

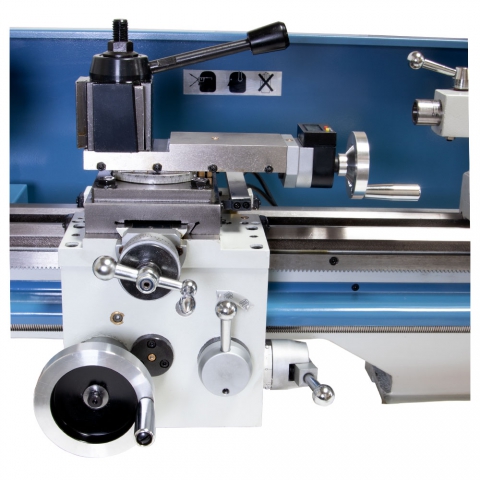

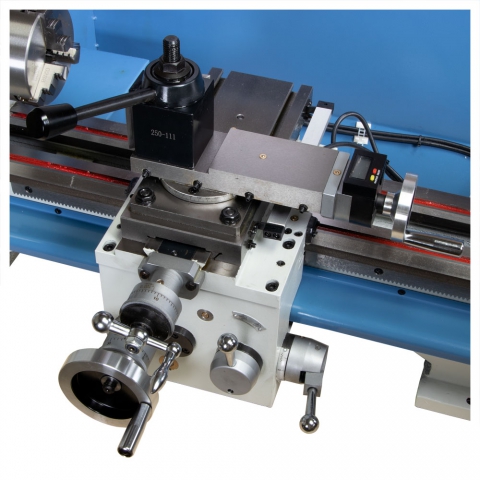

|AXA quick change tool post, DRO and modified compound rest on HiTorque 8.5x20 Deluxe Bench Lathe|
|AXA quick change tool post mounted on modified compound rest on Deluxe HiTorque 8.5x20 Bench Lathe|

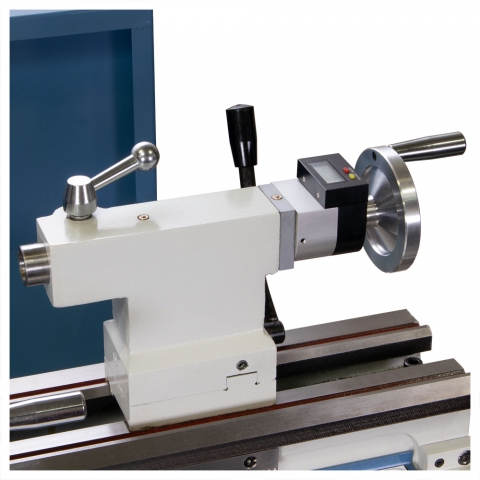

|Tailstock digital dial on the Deluxe HiTorque 8.5x20 Bench Lathe|

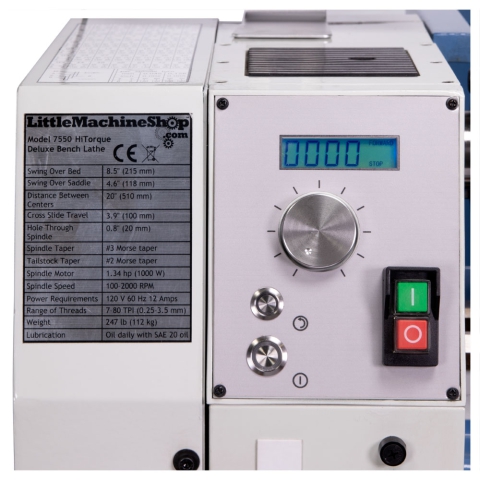

|Control panel - forward|
|Control panel - reverse|

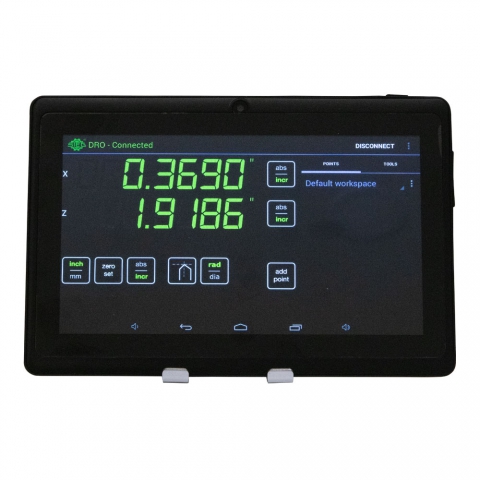

|Bluetooth DRO display|

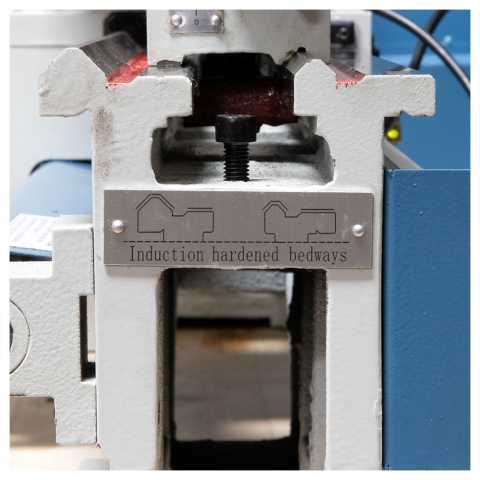

|Induction hardened bedways|
|Tailstock and compound DRO display|

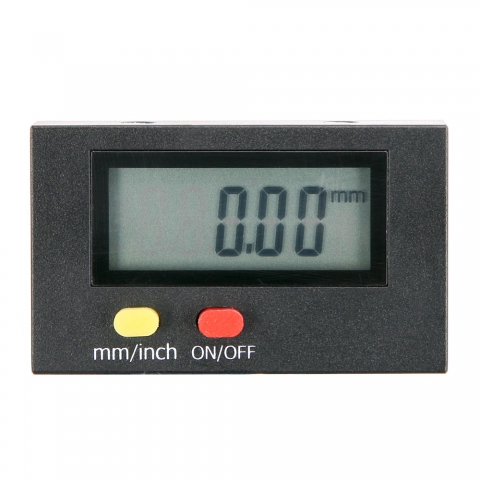

|Tailstock and compound DRO display in millimeters|

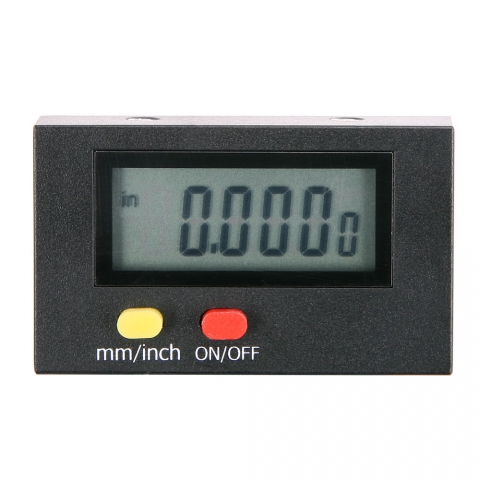

|Tailstock and compound DRO display in inches|

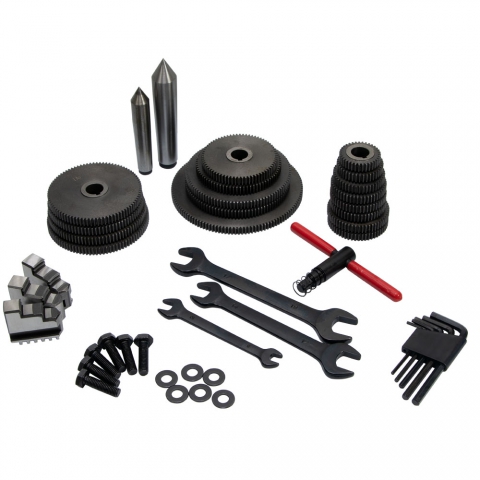

The Deluxe Bench Lathe comes with the following:
- 4" (100 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
- AXA Quick change tool post set
- A #3 Morse taper dead center for the headstock
- A #2 Morse taper dead center for the tailstock
- Change gear set
- Three open end wrenches
- Five hex (Allen) wrenches
- Android tablet for the DRO
