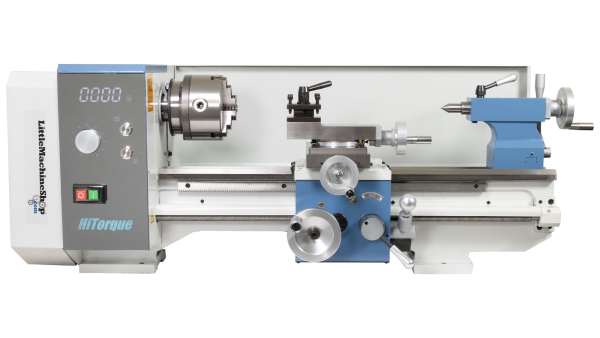

HiTorque 9x20 Bench Lathe, LED Display
- 1000 Watt (1.34 HP) brushless DC drive with spindle speed readout
- 1.1" (28mm) Spindle bore for larger stock
- Power longitudinal feed and power cross feed
- Reversible lead screw for right and left hand threads
Weight: 290 lb
Regularly $3,299.00
http://lmscnc.com/7600
NEW larger spindle through hole - 1.1" (28 mm) accepts 1" stock.
NEW greater swing from 8.5" to 9"
The 1000 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2000 rpm continuously in both directions. There are no gears to shift. NSK brand Japanese-quality spindle bearings ensure years of quiet operation.
NEW easy-to-read LED display with built in speed readout allows you to stop and then restart the lathe at a pre-selected speed.
A power cross feed is a feature not found in other lathes of this size. The cross feed and compound rest dials are graduated in 0.001" and advance 0.050" per turn. The metal lathe is equipped with a 4-way indexing tool post set for 10 mm tools.
A reversible 2 mm pitch lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 6 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 4 mm pitch with the change gears that are included. All the gears on this lathe are metal.
The LittleMachineShop.com model 7600 HiTorque 9x20 Bench Lathe is a version of the SIEG SC50 bench lathe.
*** This lathe does not come with chip tray, but can be ordered separately
Chris' TipsFeatures for the model 7600 lathe
- NEW larger spindle through hole - 1.1" (28 mm) accepts 1" stock.
- NEW greater swing from 8.5" to 9"
- NEW easy-to-read LED display with built in speed readout
- 1000 Watt output spindle motor with spindle speed display
- Genuine NSK bearings
- Metal gears
- Induction hardened ways
- Power longitudinal feed
- Power cross feed
- E-stop safety power switch
- Spindle on-off button
- Forward/reverse button for spindle and lead screw direction
- Reversible lead screw allows for right- and left-hand threading
- Extended threading capability - inch and metric threads
- Zero-resettable dials graduated at 0.001" and advancing 0.050" per turn
- Cam-lock tailstock
- Four-way tool post
- 5" (125 mm) 3-jaw self centering lathe chuck
| Swing Over Bed | 9" (230 mm) |
| Distance Between Centers | 18.1" (460 mm) |
| Cross Slide Travel | 4.7" (120 mm) |
| Swing Over Cross Slide | 4.3" (110 mm) |
| Spindle Through Hole | 1.1" (28 mm) |
| Spindle Taper | #4 Morse taper |
| Tailstock Taper | #2 Morse taper |
| Range of Threads | 6-80 TPI; 0.25-4.0 mm |
| Spindle Motor Output | 1.34 hp (1000 Watts) |
| Spindle Speed | 100 - 2000 RPM |
| Power Requirements | 120 V 60 Hz 15 Amps |
| Machine Weight | 253 lbs (115 kg) |
| Crated Weight | 315 lbs (143 kg) |
| Overall Dimensions (W x D x H) | 36" x 25" x 18" (910 mm x 630 mm x 450 mm) |
| Crate Dimensions (W x D x H) | 42" x 31" x 24" (1060 mm x 780 mm x 600 mm) |
 |

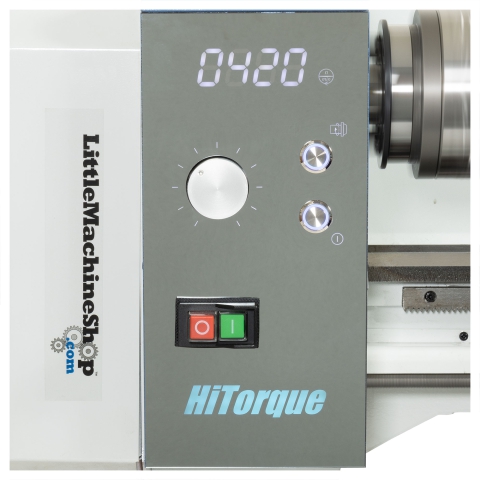

Control Panel |
 |

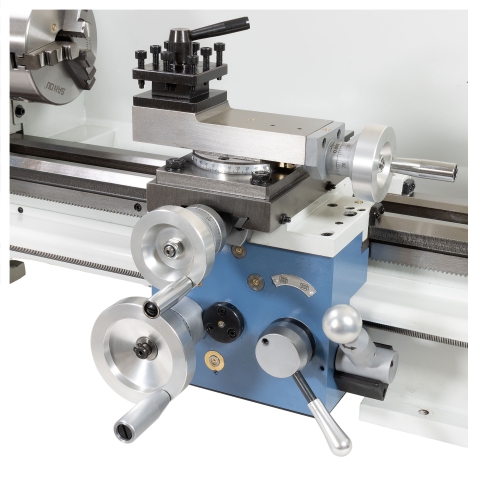

Carriage and Compound Rest |
 |

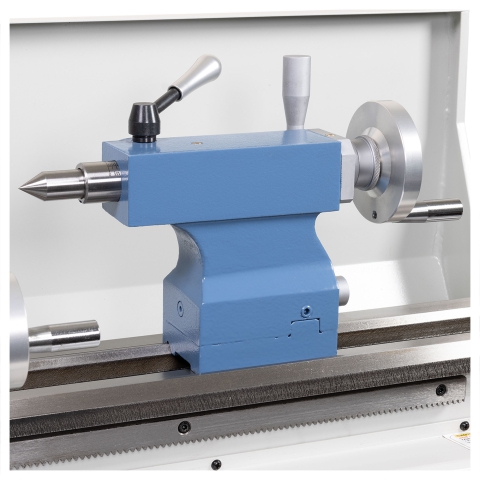

Tailstock |
 |
Tailstock Alternate View |
 |

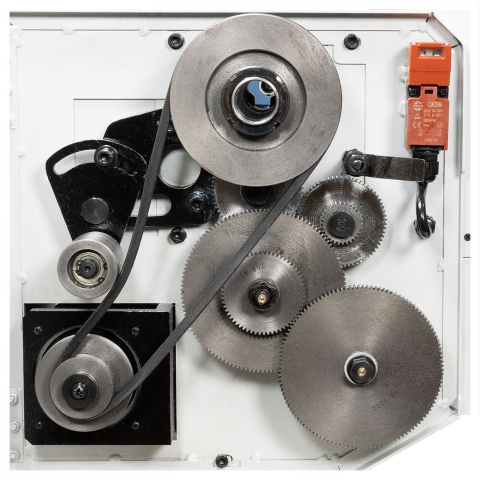

Change Gears |
 |
Accessories |
 |
Change Gear Set |
The HiTourqe 9x20 Bench Lathe comes with the following:
- 5" (125 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
- 4-Way rotating tool post
- #4 Morse taper dead center for the headstock
- #2 Morse taper dead center for the tailstock
- Change gear set - 18 Gears - 35, 40, 45, 49, 50(x2), 55, 56, 60, 70, 80, 85, 87, 90, 94, 100(x2), 127 teeth
- Gears installed on the lathe include 30, 60, 66(x2), 120(x2) teeth
- Three open end wrenches: 8/10 mm, 14/17 mm, 17/19 mm
- Five hex (Allen) wrenches: 2, 3, 4, 5, 6 mm
- Users Manual
- Inspection Report
